Product Description

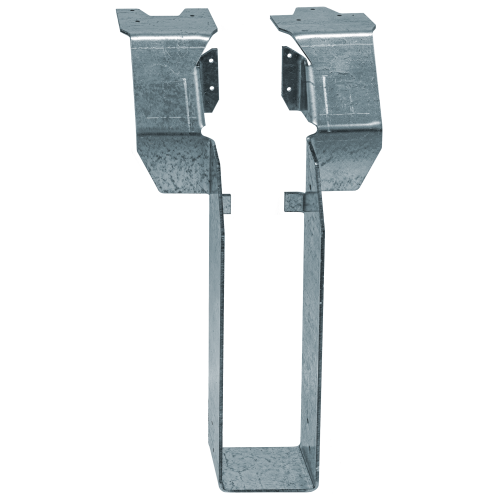

The Simpson DGHT Top-Flange Fire Wall Hanger is a patent-pending, load-tested connector engineered for multifamily and multilevel Type III residential construction where fire-rated wall assemblies are required. Carrying a two-hour fire rating tested to ASTM E814, this hanger is the first fire wall hanger designed to install with a power nailer - helping keep framing schedules on track before drywall goes up. Its innovative top-flange design allows two layers of 5/8 in. gypsum board to be slipped into place after framing is complete, making it a purpose-built solution for fire wall assemblies on both sides of the wall.
Key Features
- Power nailer compatible and code listed - loads tested for both 1 1/2 in. and 2 1/2 in. power-driven or hand-installed nails, so crews can install faster without sacrificing code compliance
- Two-hour fire rating for 2x4 or thicker walls - tested to ASTM E814 and rated for use on both sides of the wall, giving builders the documentation they need for fire-rated assemblies
- Top-flange design for back-to-back installation - engineered for use on 2x6 (minimum) walls, eliminating the need for separate hardware when mirroring hangers across a fire wall
- Built-in drywall clearance - accommodates two layers of 5/8 in. gypsum board inserted after framing, so drywall installation proceeds without rework or repositioning of the hanger
- Intertek listed under Design No. SST/WPCF 120-01 - provides a recognized third-party fire-resistant rating that supports inspections and code submittals
- 10-gauge steel construction with G90 galvanized coating - delivers the structural strength and corrosion resistance required in demanding residential construction environments
Why This Product
- The only fire wall hanger built for the power nailer - because the DGHT is the first hanger of its type designed specifically for power-driven installation, framing crews can complete connections faster and keep projects on schedule ahead of drywall installation
- A fully tested, code-ready fire wall solution - with ASTM E814 testing, a two-hour fire rating, and Intertek Design No. SST/WPCF 120-01, this hanger arrives with the documentation that inspectors and code officials require for Type III multifamily construction
- Designed around the full wall assembly, not just the framing - the top-flange profile reserves space for two layers of 5/8 in. drywall to slip in after framing is done, so the fire wall assembly comes together in the correct sequence without added steps
- Rated for use on both sides of the wall - a single hanger model covers fire wall applications on either face, reducing the need to source and manage separate products for opposing sides of the assembly
Specifications
- MPN: DGHT3.62/9.25
- Brand: Simpson Strong-Tie
- Member Size: 3-1/2 in. x 9-1/4 in.
- Seat Width: 3-5/8 in.
- Height: 9-3/16 in.
- Gauge: 10
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Fire Rating: Two-hour
- Fire Rating Standard: ASTM E814
- Fire-Resistant Rating: Intertek Design No. SST/WPCF 120-01
- Installation Fasteners: Install with (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top; (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face; and (6) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
- Country of Origin: United States
Approved Applications
- Multifamily residential construction requiring fire-rated wall assemblies
- Multilevel Type III residential construction
- Fire wall assemblies on both sides of the wall
- Back-to-back installation on 2x6 (minimum) walls
- Walls constructed from 2x4 or thicker framing members
Options
- Contact us for Configurable Options and Special orders
Downloads and Resources
- Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
- Specifications
Note: Product dimensions may differ from picture.
Frequently Asked Questions
What is the fire rating of the Simpson DGHT3.62/9.25, and what standard was it tested to?
The DGHT3.62/9.25 carries a two-hour fire rating. It has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. It also holds Intertek Design No. SST/WPCF 120-01.
Can this hanger be installed using a power nailer?
Yes. The DGHT is the first fire wall hanger specifically designed to be installed with a power nailer. It is loads tested and code listed for both 1-1/2 in. and 2-1/2 in. power-driven or hand-installed nails, saving time prior to hanging drywall.
What size joist does the DGHT3.62/9.25 fit, and what fasteners are required?
This hanger is sized for a 3-1/2 in. x 9-1/4 in. joist. Installation requires (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top; (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face; and (6) 0.148 in. x 1-1/2 in. nails in the joist.
How does the top-flange design accommodate drywall installation?
The top-flange design provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after framing is complete. This allows the hanger to be fully nailed before drywall is hung, supporting a more efficient construction sequence without compromising the two-hour fire-rated assembly.
