Product Description

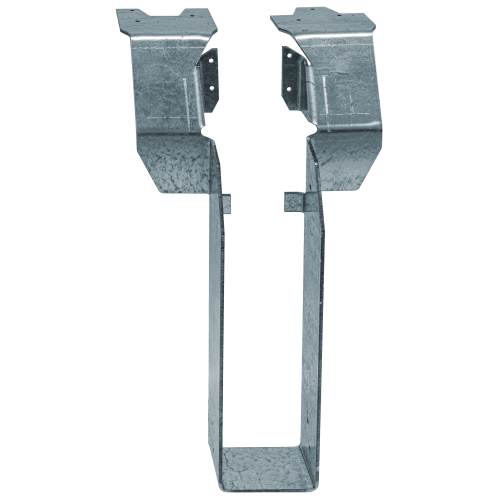

The Simpson DGHT Top-Flange Fire Wall Hanger is a patent-pending, load-tested connector engineered for 3 1/2 in. x 14 in. engineered wood joists in multifamily and multilevel Type III residential construction. Carrying a two-hour fire-resistant rating tested to ASTM E814, it is the first fire wall hanger designed specifically for installation with a power nailer - cutting labor time before drywall is hung and helping keep projects on schedule. Its top-flange design leaves room for two layers of 5/8 in. gypsum board to be slipped into place after framing is complete, and it has been certified for fire-rated use on both sides of the wall under Intertek Design No. SST/WPCF 120-01.
Key Features
- Power nailer compatible and code listed - loads tested for both 1 1/2 in. and 2 1/2 in. power-driven or hand-installed nails, so crews can fasten quickly without switching tools or sacrificing code compliance
- Two-hour fire-resistant rating on walls 2x4 or thicker - meets demanding fire wall assembly requirements, giving builders confidence in code-compliant construction for multifamily and multilevel projects
- Innovative top-flange design for back-to-back installation - compatible with 2x6 (minimum) walls, enabling paired hanger configurations that simplify framing on either side of a fire wall
- Built-in drywall clearance - provides space for two layers of 5/8 in. gypsum board to be inserted after framing, so the installation sequence stays efficient and undisrupted
- 10-gauge steel construction with G90 galvanized coating - delivers the structural strength and corrosion resistance required for long-term performance in residential fire wall assemblies
- ASTM E814 tested and Intertek certified - independently verified for fire-rated use on both sides of the wall, supporting code submissions and inspection approvals with documented third-party evidence
Why This Product
- The first fire wall hanger built for a power nailer - no other fire wall hanger on the market carries this distinction; crews can drive nails with standard pneumatic tools, reducing installation time before drywall goes up and keeping the project schedule on track
- A complete two-hour fire wall solution in a single connector - load-tested, ASTM E814 certified, and rated for use on both sides of the wall, this hanger addresses fire rating requirements for both joist connection strength and assembly performance without additional components
- Designed around real-world framing sequences - the top-flange profile and drywall clearance space mean installers can set the hanger during framing and slide gypsum board into place later, eliminating awkward workarounds and protecting wall assembly integrity
- Made in the United States from 10-gauge galvanized steel - heavy-gauge material and a G90 zinc galvanized finish deliver the durability and corrosion resistance that demanding multifamily and Type III residential fire wall applications require
Specifications
- MPN: DGHT3.62/14
- Brand: Simpson Strong-Tie
- Member Size: 3-1/2 in. x 14 in.
- Seat Width: 3-5/8 in.
- Height: 13-15/16 in.
- Gauge: 10
- Coating/Finish: Zinc Galvanized, G90
- Fire Rating: Two-hour fire-resistant rating
- Fire Test Standard: ASTM E814
- Intertek Design No.: SST/WPCF 120-01
- Installation Fasteners: Install with (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top; (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face; and (6) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
- Country of Origin: United States
Approved Applications
- Multifamily residential construction
- Multilevel Type III residential construction
- Fire wall assemblies requiring a two-hour fire-resistant rating
- Back-to-back hanger installations on 2x6 (minimum) walls
- Engineered wood joist connections in fire-rated wall assemblies
Options
- Contact us for Configurable Options and Special orders
Downloads and Resources
- Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
- Specifications
Note: Product dimensions may differ from picture.
Frequently Asked Questions
What fire rating does the DGHT3.62/14 carry, and how was it tested?
The DGHT3.62/14 carries a two-hour fire-resistant rating. It has been tested according to ASTM E814 and is certified for fire-rated use on both sides of the wall, with Intertek Design No. SST/WPCF 120-01.
Can this hanger be installed with a power nailer?
Yes. The DGHT is the first fire wall hanger specifically designed to install with a power nailer. It is loads tested and code listed for both 1-1/2 in. and 2-1/2 in. power-driven nails, as well as hand-installed nails.
Does this hanger accommodate drywall installation after framing?
Yes. The top-flange design provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after framing is complete, making it well-suited for fire wall assemblies in multifamily and multilevel construction.
What is the minimum wall thickness required for back-to-back installation?
The innovative top-flange design supports back-to-back installation on walls that are 2x6 (minimum) in thickness. The two-hour fire rating applies to 2x4 or thicker walls.
