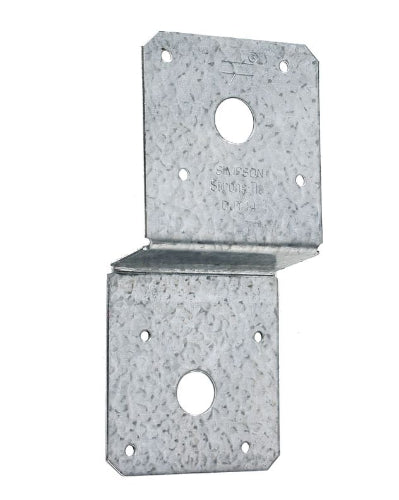

The Simpson DJT14SS DJT 14-Gauge Stainless-Steel Deck Joist Tie for 2x is a precision-engineered structural connector from Simpson designed to securely fasten 2x deck joists to the side of 4x or larger support posts. Built from 14-gauge stainless steel for high and severe corrosion resistance, this deck joist tie delivers a connection that outperforms loose nails or screws while eliminating the complexity of through-bolting - making it a reliable choice for exterior deck framing where structural integrity and long-term durability matter.

Key Features

• Connects a 2x member (typically a beam) to the side of the post - provides a dedicated, purpose-built connection point that keeps deck joists properly aligned and structurally secured to the post.
• Suitable for nominal 2x4 minimum cross member and nominal 4x4 minimum post - fits the most common deck framing lumber sizes, so it integrates cleanly into standard residential and commercial deck construction.
• Stronger than nails or screws, easier than through-bolting - gives builders a faster installation path without sacrificing the connection strength required for load-bearing deck framing.
• Made from 14-gauge steel - the heavy-gauge construction adds rigidity and load capacity to the connector, supporting dependable performance in demanding framing applications.
• Stainless steel for high/severe corrosion resistance - holds up in harsh outdoor environments including coastal, high-moisture, and chemically treated lumber applications where standard steel connectors would degrade prematurely.

Why This Product

• Engineered for real-world deck building demands - Simpson designs and tests its connectors to perform under load, so this joist tie delivers structural confidence rather than the guesswork that comes with relying on nails or screws alone for post-to-joist connections.
• Stainless steel construction protects your investment long-term - the high and severe corrosion resistance built into this connector makes it well suited for decks exposed to moisture, weather, and pressure-treated lumber, where a lesser finish would corrode and weaken the connection over time.
• Flexible fastening options speed up installation - compatible with both 16d stainless-steel common nails and 5/8 in. diameter stainless-steel machine bolts, this tie adapts to your preferred installation method without requiring specialized tools or hardware.
• Precision fit for standard framing members - designed specifically for nominal 2x4 minimum cross members and nominal 4x4 minimum posts, this connector slots into typical deck framing layouts without modification, reducing layout time and the risk of field errors.

Specifications

• Model Number: DJT14SS
• Material: Stainless Steel
• Finish: Stainless Steel
• Gauge: 14
• Member Size: 2x deck joist
• Installation Hardware: Install with 16d stainless-steel common nails or 5/8 in. diameter stainless-steel machine bolts
• Country of Origin: United States

Approved Applications

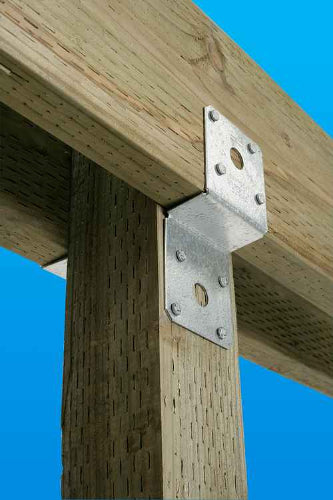

• Attaching 2x deck joists to the side of 4x or larger support posts
• Deck framing connections requiring high or severe corrosion resistance environments
• Applications where a nominal 2x4 minimum cross member meets a nominal 4x4 minimum post

Frequently Asked Questions

What size members is the DJT14SS designed to work with?

The DJT14SS is suitable for a nominal 2x4 minimum cross member (typically a 2x deck joist) and a nominal 4x4 minimum post. It is designed to attach 2x deck joists to the side of 4x or larger support posts.

What fasteners are required to install the DJT14SS?

The DJT14SS can be installed with 16d stainless-steel common nails or 5/8 in. diameter stainless-steel machine bolts, giving you flexibility depending on your application and preference.

Why choose a stainless-steel deck joist tie over a standard steel connector?

The stainless-steel construction of the DJT14SS provides high and severe corrosion resistance, making it well suited for exterior deck applications and environments where exposure to moisture or corrosive elements is a concern.

How does the DJT14SS compare to nails, screws, or through-bolting for post-to-joist connections?

The DJT14SS is engineered to create a connection that is stronger than nails or screws alone and easier to install than through-bolting, combining the structural integrity of a tested Simpson Strong-Tie connector with straightforward installation.
