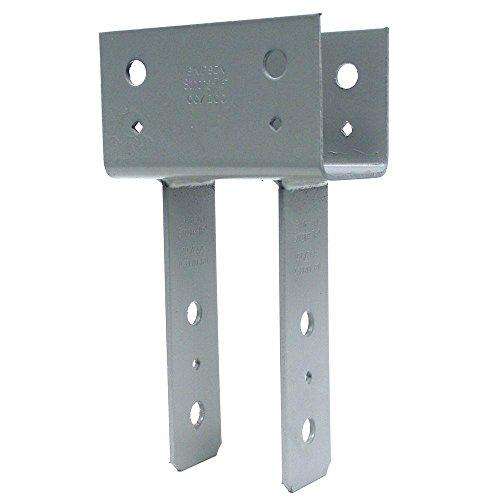

The Simpson CC44 Column Cap for 4x Beam and 4x Post by Simpson Strong-Tie is engineered to deliver strong, reliable column-to-beam connections in structural wood framing. The seat of the column cap provides additional bearing surface area that extends beyond each side of the column, helping to distribute load from the beam and provide robust support at the connection point. Fabricated from heavy-duty 7-gauge steel with a Simpson Strong-Tie gray paint finish, this column cap is a dependable choice for wood construction applications where load transfer, connection integrity, and code-compliant performance are essential.

Key Features

• Certified welds - give you confidence that every connection meets verified strength and loading standards, reducing risk in structural applications.
• Uplift loads increased for earthquake or wind loading - means the cap is engineered to handle elevated lateral and uplift forces, making it appropriate for high-wind and seismic design zones.
• Bolt spacing meets NDS code requirements - ensures optimal structural performance and simplifies the inspection and approval process on the job site.
• Diamond holes for temporary fastening - allow you to hold the cap in position during installation before final bolting, improving accuracy and reducing installation time.
• 7-gauge steel construction - provides heavy-duty strength and durability suited to load-bearing post and beam connections in wood framing.
• Simpson Strong-Tie gray paint finish - offers a consistent, professional appearance while providing a standard level of surface protection for interior and covered applications.

Why This Product

• Built for demanding structural conditions - the CC44 features certified welds and increased uplift capacity specifically designed to address earthquake and wind loading, giving builders and engineers confidence in high-demand environments.
• Code-compliant by design - bolt spacing engineered to meet NDS requirements means this column cap supports smooth project approvals and takes the guesswork out of code compliance for 4x post and beam framing assemblies.
• Practical installation details that save time on site - diamond holes allow temporary fastening to hold the cap in place before final bolting, so installers can align the connection accurately without extra hands or hardware.
• Trusted load distribution for post and beam framing - the extended bearing seat spreads beam load across a greater surface area beyond the column face, supporting long-term connection integrity in residential and commercial wood construction.

Specifications

• Model Number: CC44
• Member Size: 4x Beam, 4x Post
• Nominal Beam Width: 4x (3 1/2 in.)
• Post Size: 4x4
• Gauge: 7-gauge steel
• Finish / Coating: Simpson Strong-Tie Gray Paint
• Installation Hardware: Install with (4) 5/8-in. diameter bolts (sold separately)
• Width 1: 3 5/8 in.
• Width 2: 3 5/8 in.
• Length: 7 in.
• Height 1: 4 in.

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated where W1 >= W2.

• For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What size beam and post is the CC44 designed to fit?

The CC44 is designed for a nominal 4x beam and a nominal 4x post, making it compatible with standard 4x4 post dimensions and 4x lumber beams commonly used in wood construction framing.

How is the CC44 column cap installed?

The CC44 is installed using four (4) 5/8-inch diameter bolts. The bolt spacing is designed to meet NDS code requirements to ensure optimal performance and structural integrity.

Is the CC44 suitable for use in high-wind or seismic zones?

Yes. The CC44 features uplift loads that have been increased specifically to address earthquake and wind loading conditions, making it appropriate for use in regions with elevated seismic or wind design requirements.

What material and finish is the CC44 made from?

The CC44 is manufactured from 7-gauge steel and features a Simpson Strong-Tie gray paint finish. It also incorporates certified welds to provide confidence in its strength and load-carrying capacity.

Note: Product dimensions and/or screw/bolt holes may differ from picture.
