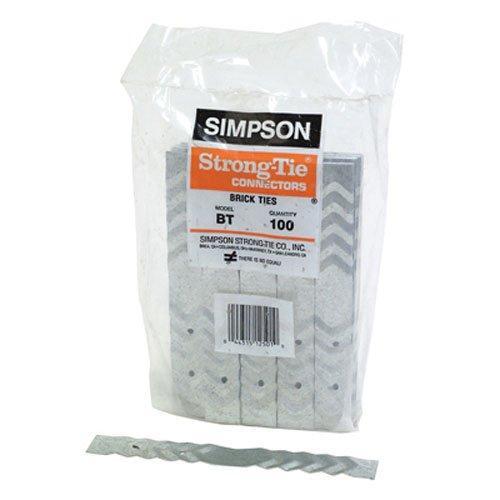

The Simpson BT-R100 Brick Strap Tie is a 22-gauge galvanized steel connector engineered to provide a secure, reliable bond between wood-framed wall structures and brick veneer facades. Built by Simpson to the highest quality standards and tested to perform, this brick tie is the go-to choice of engineers and contractors for exterior applications that demand structural integrity and long-term corrosion resistance. Whether you are meeting prescriptive code airspace requirements or working with slightly wider cavities, this connector is designed to handle the job with confidence.

Key Features

• Attaches brick veneer to the supporting wooden framing of the walls - creates a dependable structural link between your wood frame and brick facade, keeping the exterior cladding firmly anchored over time.
• Typically for use on the outside of structures - purpose-built for exterior wall assemblies where reliable veneer attachment is critical to the safety and appearance of the finished structure.

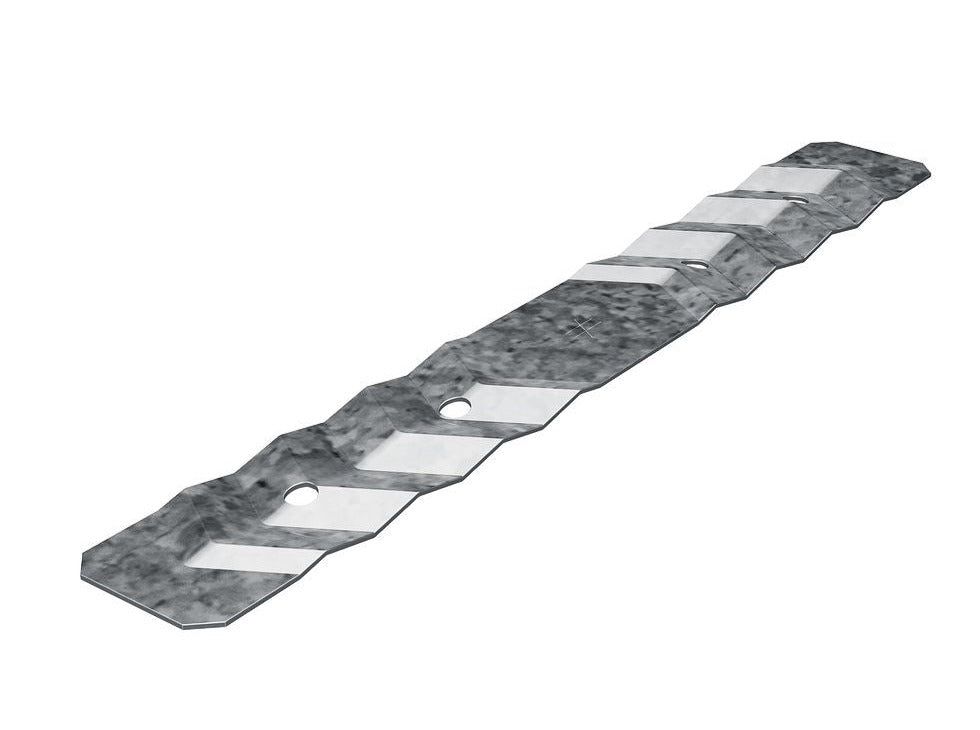

• Embossments provide extra holding power - the raised embossed pattern increases the mechanical grip between the tie and the fastener, delivering stronger resistance against veneer movement or separation.
• Compatible with 1 in. prescriptive code airspace requirement, or at a closer spacing for airspaces from 1 - 2 in. - versatile fit across a range of common wall cavity configurations, giving contractors flexibility without sacrificing code compliance.
• Made from 22-gauge steel - provides a balance of structural strength and workability, making the tie easy to install while still meeting the load demands of brick veneer connections.
• Galvanized (G90) for corrosion resistance - the G90 zinc galvanized coating shields the steel from moisture and the elements, making this tie well-suited for the demanding conditions of exterior wall applications.

Why This Product

• Engineered and tested by a trusted connector brand - Simpson designs these brick ties to meet rigorous quality and performance standards, giving engineers, contractors, and builders confidence that the connector will perform as specified in real-world conditions.
• Built-in embossments for superior fastener grip - unlike plain flat ties, the embossed design mechanically locks the fastener in place, reducing the risk of the brick veneer shifting or pulling away from the wood framing over time.
• G90 galvanized coating for long-term exterior durability - the zinc galvanized finish provides meaningful corrosion protection in moisture-exposed exterior environments, helping the tie maintain its structural integrity throughout the life of the wall assembly.
• Flexible airspace compatibility for real-world framing conditions - suitable for the standard 1 in. prescriptive code airspace as well as cavities ranging from 1 to 2 in., this brick tie adapts to varying wall assembly configurations without requiring a different product.

Specifications

• Manufacturer Part Number (MPN): BT-R100
• Brand: Simpson Strong-Tie

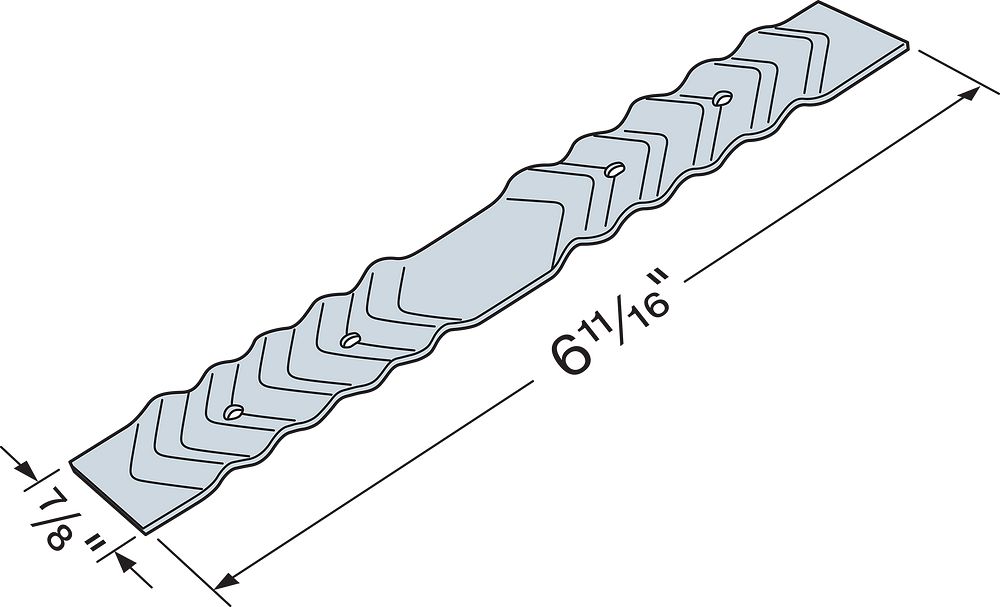

• Dimensions: 6-11/16" x 7/8"
• Gauge: 22
• Material: Steel
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 0.131 in. x 2-1/2 in. nails
• Country of Origin: United States

Frequently Asked Questions

What is the purpose of the Simpson BT-R100 Brick Strap Tie?

The BT-R100 Brick Strap Tie provides a structural connection between the wood framing of a wall and the brick veneer façade. It is typically used on the exterior of structures to secure brick veneer to the supporting wooden framing.

What airspace requirements is the BT-R100 compatible with?

The BT-R100 is designed for use with the 1 in. prescriptive code airspace requirement. It can also be installed at a closer spacing to accommodate airspaces ranging from 1 to 2 in.

How does the BT-R100 resist corrosion in exterior applications?

The BT-R100 is coated with a G90 zinc galvanized finish, which provides corrosion resistance and makes it well-suited for exterior applications where exposure to moisture is a concern.

What fasteners should be used to install the BT-R100?

The BT-R100 should be installed with 0.131 in. x 2-1/2 in. nails. The tie also features embossments that provide extra holding power once fastened to the wood framing.
