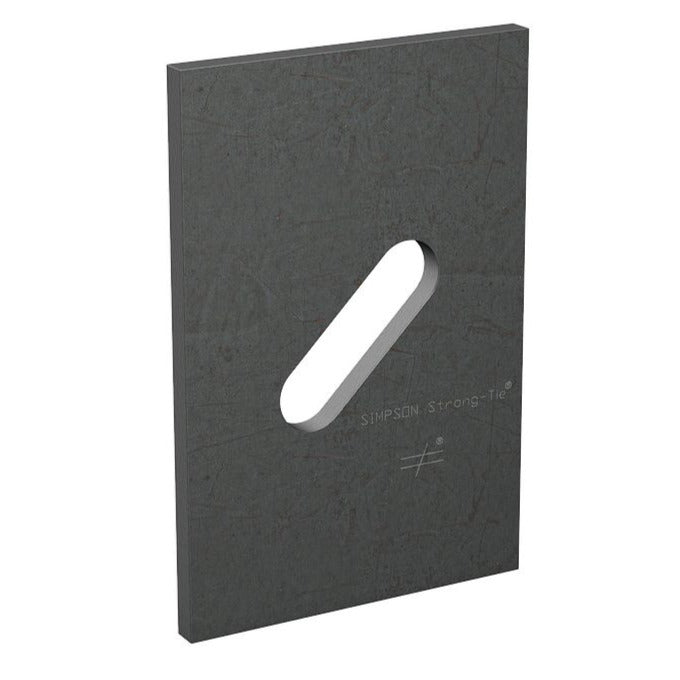

The Simpson BPS 5/8-6HDG Slotted Bearing Plate is a heavy-duty structural connector engineered to provide a greater bearing surface than standard cut washers, helping to strengthen and distribute the load at critical connections. Built from 3-gauge steel with a hot-dip galvanized finish and sized at 3 in. x 4-1/2 in., this bearing plate is designed for use on foundation anchor bolts in sill plate applications, offering the durability and code compliance required for 2x4 and 2x6 wall construction in demanding environments.

Key Features

• Slotted hole design - allows adjustability to account for anchor bolts that are not centered in the sill plate, reducing installation headaches and saving time on the job site
• Code-compliant flexibility for 2x4 and 2x6 walls - meets the latest requirements for both wall thicknesses, giving builders a single versatile solution across common framing configurations
• Greater bearing surface than standard cut washers - distributes load more effectively at critical foundation anchor bolt connections, contributing to a stronger, more reliable structural assembly
• 3-gauge steel construction - delivers the thickness and structural integrity needed for demanding load-bearing applications at the sill plate level
• Hot-dip galvanized finish - provides extra corrosion resistance suited for exterior applications and treated-wood installations where standard hardware coatings can deteriorate prematurely

Why This Product

• Built for real-world installation variability - the slotted hole accommodates off-center anchor bolts without requiring rework, making it a practical choice for contractors dealing with typical field conditions at the foundation sill
• Engineered for corrosion-prone environments - the hot-dip galvanized coating is specifically suited for exterior use and treated-wood contact, where a standard finish would not hold up over time
• A stronger alternative to cut washers - by spreading the load across a larger bearing surface, this plate reinforces the connection between the foundation anchor bolt and sill plate more effectively than a conventional washer
• Domestically produced for consistent quality - the Simpson BPS 5/8-6HDG is made in the United States, reflecting Simpson's commitment to manufacturing standards that builders and inspectors can rely on

Specifications

• MPN: BPS 5/8-6HDG
• Bolt Diameter: 5/8 in.
• Plate Width: 3 in.
• Plate Length: 4-1/2 in.
• Gauge: 3
• Coating/Finish: Hot-Dip Galvanized
• Compatible Member Sizes: 2x4, 2x6
• Country of Origin: United States

Approved Applications

• Foundation anchor bolt connections in place of standard cut washers
• Sill plate connections for 2x4 wall construction
• Sill plate connections for 2x6 wall construction
• Exterior applications requiring elevated corrosion resistance
• Treated-wood applications where hot-dip galvanized hardware is required

Frequently Asked Questions

What is the advantage of using a bearing plate over a standard cut washer?

Bearing plates give a greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at critical connections, making them a more robust solution for foundation anchor bolt applications.

Why does the BPS 5/8-6HDG feature a slotted hole instead of a round hole?

The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate, offering increased installation flexibility while still meeting the latest code requirements for 2x4 and 2x6 walls.

Why is the hot-dip galvanized (HDG) finish important for this bearing plate?

Hot-dip galvanization offers extra corrosion resistance, making the BPS 5/8-6HDG suitable for exterior applications and installations involving treated wood, where standard finishes may be susceptible to accelerated corrosion.

What steel gauge and bolt diameter is the BPS 5/8-6HDG built to accommodate?

The BPS 5/8-6HDG is made from 3-gauge steel and is designed to accommodate a 5/8 in. diameter bolt, providing a strong and durable connection at critical structural points.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
