The Simpson BPS 3/4-3 Slotted Bearing Plate is a heavy-duty structural connector designed to provide a greater bearing surface than standard cut washers at critical load-transfer connections. Built for use with 3/4 in. diameter anchor bolts, this 3 in. x 3 in. plate strengthens and distributes load across the sill plate on foundation anchor bolt applications, offering the code-compliant flexibility contractors need for both 2x4 and 2x6 framed walls.

Key Features

• Slotted hole design - allows adjustability to account for bolts that are not centered in the sill plate, reducing installation frustration and keeping work on schedule when anchor bolt placement is slightly off-center
• 3 in. x 3 in. plate footprint - delivers a significantly greater bearing surface compared to standard cut washers, helping distribute structural loads more effectively at critical connections
• 3-gauge steel construction - provides the heavy-duty thickness required for demanding foundation anchor bolt applications without added bulk
• Compatible with 2x4 and 2x6 wall framing - offers increased flexibility while meeting the latest code requirements for both common sill plate member sizes
• Uncoated steel finish - suited for protected interior or dry applications where a coating is not required, keeping costs appropriate for the job
• Made in the United States - manufactured to Simpson's quality standards for structural connectors used in residential and light commercial framing

Why This Product

• Engineered for real-world installation conditions - the slotted hole accommodates anchor bolts that land off-center in the sill plate, a common field reality, so contractors are not forced to redrill or compromise the connection
• Stronger load distribution than a standard washer - the 3 in. x 3 in. plate spreads bearing loads across a much larger surface area at foundation anchor bolt connections, helping protect the sill plate at these structurally critical points
• Meets current code requirements for two wall sizes - a single plate model covers both 2x4 and 2x6 framed walls, simplifying procurement and reducing the chance of using the wrong hardware on a mixed-framing job
• Trusted Simpson quality for structural connections - Simpson is a recognized name in structural connectors, and this bearing plate is designed to perform in the foundation anchor bolt applications where load transfer matters most

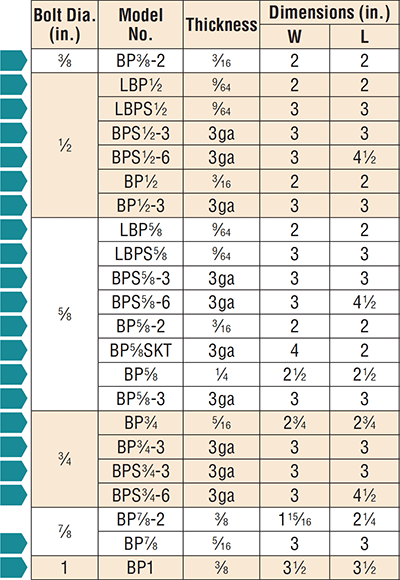

Specifications

• MPN: BPS 3/4-3
• Bolt/Rod Diameter: 3/4 in.
• Plate Width: 3 in.
• Plate Length: 3 in.
• Gauge: 3
• Finish: Uncoated Steel
• Coating: None
• Compatible Member Size: 2x4, 2x6
• Country of Origin: United States

Approved Applications

• Foundation anchor bolt connections in place of standard cut washers
• Sill plate connections on 2x4 framed walls
• Sill plate connections on 2x6 framed walls
• Applications requiring load distribution at critical structural connections

Frequently Asked Questions

What is the purpose of a slotted bearing plate versus a standard cut washer?

Bearing plates provide a greater bearing surface than standard cut washers and are designed to help strengthen and distribute the load at critical connections. They are typically used on foundation anchor bolts in place of cut washers to improve load transfer across the sill plate.

Why does the BPS 3/4-3 have a slotted hole instead of a round hole?

The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate. This added flexibility makes installation more practical when anchor bolt placement is slightly off-center.

What wall framing sizes is the BPS 3/4-3 compatible with?

The BPS 3/4-3 is compatible with 2x4 and 2x6 wall framing, offering increased flexibility while meeting the latest code requirements for both member sizes.

What bolt diameter is the BPS 3/4-3 designed for?

The BPS 3/4-3 is designed for use with a 3/4 in. diameter bolt, making it suitable for standard foundation anchor bolt applications where a 3/4 in. fastener is specified.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
