The Simpson Bearing Plate 5/8 Inch Hole 2x2 Black Powder Coated is a compact, heavy-duty structural connector from Simpson engineered to deliver a greater bearing surface than standard cut washers at critical bolt connections. Sized at 2 x 2 inches and designed for use with 5/8-inch diameter bolts, this square bearing plate helps distribute load more effectively across the contact area, reducing stress concentration at bolt points. The flat black powder-coated finish provides a more durable and better-looking result than standard painted hardware, making it a reliable choice for both structural performance and finished appearance.

Key Features

• Greater bearing surface than standard cut washers - spreads load more effectively at bolt connections, reducing localized stress and supporting structural integrity
• Designed for 5/8-inch diameter bolts - ensures a precise, compatible fit for common structural fastening applications without guesswork
• 2 x 2 inch square plate profile - provides a compact yet capable footprint suitable for a wide range of structural and construction connection points
• Flat black powder-coated finish - delivers enhanced resistance to wear and corrosion compared to standard paint, while maintaining a clean, finished appearance on exposed hardware
• Made in the United States - built to the consistent quality standards associated with domestic Simpson production

Why This Product

• Built for real load distribution - unlike a basic cut washer, this bearing plate is purpose-engineered to spread bolt loads across a broader surface area, making it a smarter choice for structural connections where stress concentration is a concern
• Finish that holds up over time - the powder-coated black coating offers meaningful durability advantages over conventional painted hardware, helping the plate resist everyday wear at connection points
• Trusted Simpson engineering - backed by a brand widely recognized in structural connector applications, giving builders and contractors confidence in long-term performance
• Clean, professional look - the flat black finish suits exposed framing, timber connections, and architectural applications where hardware appearance matters alongside structural function

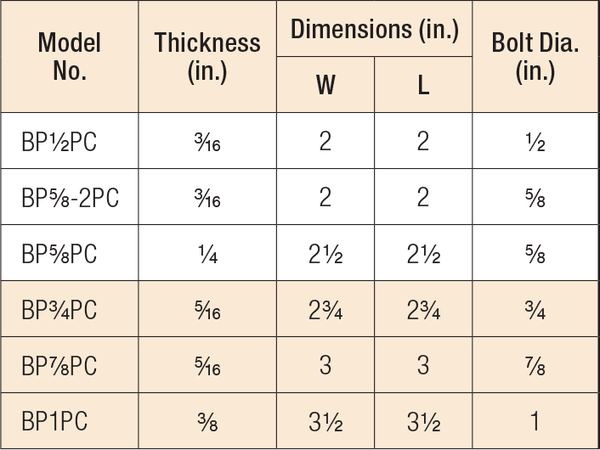

Specifications

• Model Number: BP 5/8-2PC
• Bolt Diameter (in.): 5/8
• Thickness (in.): 3/16
• Width (in.): 2
• Length (in.): 2
• Coating/Material: Powder Coating, Black
• Country of Origin: United States

Frequently Asked Questions

What is the purpose of the BP 5/8-2PC bearing plate?

The BP 5/8-2PC bearing plate is designed to provide a greater bearing surface than standard cut washers, helping to distribute load at critical structural connections more effectively and reducing stress concentration at bolt points.

What bolt diameter is this bearing plate designed to accommodate?

This bearing plate features a 5/8-inch hole, making it compatible with 5/8-inch diameter bolts.

What are the dimensions and thickness of the BP 5/8-2PC?

The bearing plate measures 2 inches wide by 2 inches long with a thickness of 3/16 inch, providing a sturdy, square profile for structural use.

Why is a powder-coated finish used instead of standard paint?

The flat black powder-coated finish used on the BP 5/8-2PC produces a much more durable and better-looking finish than standard paint, offering enhanced resistance to wear and corrosion over time.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item specifications for details.
