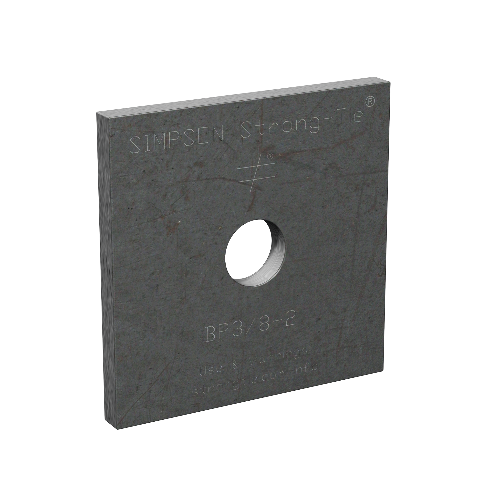

The Simpson Bearing Plate with 3/8 in. Bolt Diameter, 2 in. x 2 in. is a structural steel plate engineered to provide a greater bearing surface than standard cut washers at critical load-bearing connections. Designed to strengthen and distribute the load where it matters most, this bearing plate is typically used on foundation anchor bolts in place of cut washers, helping to transfer compressive forces more effectively across structural elements.

Key Features

• 3/8 in. bolt diameter compatibility - fits standard 3/8 in. anchor bolt installations, making it a direct, purpose-matched replacement for cut washers at foundation connections
• 2 in. x 2 in. plate dimensions - the expanded footprint spreads load over a larger surface area than a standard washer, reducing stress concentration at the connection point
• 3/16 in. steel construction - the substantial plate thickness provides the rigidity needed to maintain load distribution integrity under compressive forces without flexing or distorting
• Uncoated steel finish - bare steel construction allows for compatibility with field-applied coatings or sealants as required by the project specification, giving installers flexibility on the job site

Why This Product

• Built for foundation anchor bolt applications - Simpson designed this plate specifically for use on foundation anchor bolts in place of cut washers, so it addresses a real-world structural need rather than serving as a generic hardware workaround
• Greater bearing surface where connections are most critical - by covering more surface area than a standard cut washer, the plate helps distribute load at connections that are subject to significant compressive forces, reducing the risk of localized failure
• American-engineered structural hardware from a trusted brand - Simpson is a recognized name in structural connectors, and this bearing plate reflects the same focused engineering applied to their broader line of load-path hardware
• Simple, application-specific sizing - the 2 in. x 2 in. footprint and 3/8 in. hole are sized to work together without modification, keeping installation straightforward and reducing the chance of fitment issues in the field

Specifications

• MPN: BP 3/8-2
• Bolt Diameter: 3/8 in.
• Dimensions: 2 in. x 2 in.
• Thickness: 3/16 in.
• Material: Uncoated Steel
• Coating: None
• Finish: Uncoated Steel
• Country of Origin: United States

Downloads and Resources

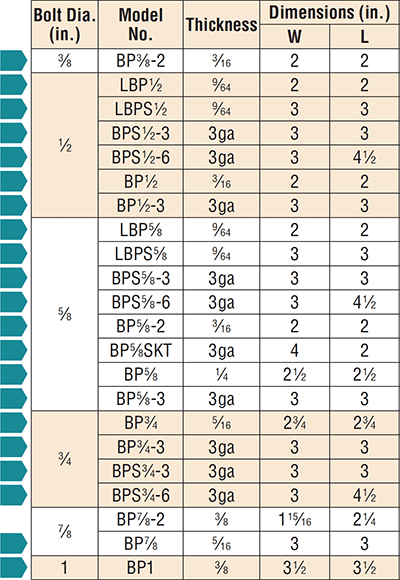

• Model No. BP 3/8-2 Bolt Dia. (in.) 3/8 in Thickness 3/16 in. W (in.) 2 L (in.) 2 Coating/Material NoneView Spec Sheet

Frequently Asked Questions

What is the purpose of the Simpson BP 3/8-2 bearing plate?

The Simpson BP 3/8-2 bearing plate is designed to provide a greater bearing surface than standard cut washers. It helps strengthen and distribute the load at critical connections and is typically used on foundation anchor bolts in place of cut washers.

What bolt diameter is the BP 3/8-2 compatible with?

The BP 3/8-2 is designed for use with a 3/8 in. bolt diameter.

What are the dimensions and material thickness of the BP 3/8-2?

The bearing plate measures 2 in. x 2 in. and is made from 3/16 in. thick steel.

Does the BP 3/8-2 have any coating or finish applied?

No. The BP 3/8-2 features uncoated steel construction with no coating or finish applied.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
