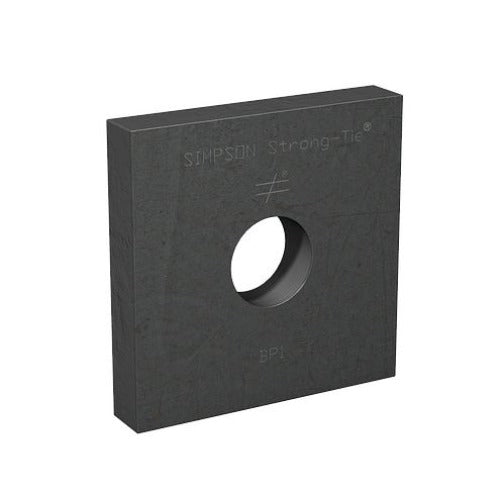

The Simpson Bearing Plate 3x3x3/8 1-5/16 Inch Hole HDG BP 1-1/4HDG is a hot-dip galvanized structural bearing plate from Simpson engineered to transfer concentrated compressive forces between two structural elements at critical connections. With a 3 x 3 inch footprint and 3/8 inch thickness, this plate provides a significantly greater bearing surface than standard-cut washers, making it a reliable choice for load distribution applications where connection integrity matters most.

Key Features

• 3 x 3 inch bearing surface - delivers a larger contact area than standard-cut washers, spreading compressive loads more effectively across the connection point
• 3/8 inch plate thickness - provides the structural rigidity needed to handle concentrated compressive forces without deflection at demanding load-transfer connections
• 1-5/16 inch hole sized for a 1-1/4 inch diameter anchor bolt - ensures proper fit and accurate load transfer at the bolt connection, reducing installation guesswork
• Hot-dip galvanized coating - offers higher corrosion resistance than standard finishes, keeping the plate performing reliably in moisture-exposed or weathered environments
• Replaces standard-cut washers - purpose-built geometry means builders get a code-suitable bearing plate rather than a makeshift washer solution at critical structural connections

Why This Product

• Built for demanding load distribution - the 3 x 3 inch plate area directly addresses applications where a standard-cut washer simply cannot provide adequate bearing surface, reducing stress concentrations at anchor bolt connections
• Hot-dip galvanized for long-term durability - the HDG coating is specifically suited to installations exposed to moisture or corrosive conditions, helping this structural plate maintain its integrity over the life of the structure
• Precision-sized hole for a 1-1/4 inch anchor bolt - the 1-5/16 inch hole provides the correct clearance for secure, accurate positioning at the connection, supporting proper force transfer without compromise
• Made in the United States by Simpson - a trusted name in structural connectors backs this plate with consistent manufacturing quality, giving builders confidence at every critical connection point

Specifications

• Model Number: BP 1-1/4HDG
• Bolt Diameter: 1-1/4 in.
• Hole Size: 1-5/16 in.
• Thickness: 3/8 in.
• Width (W): 3 in.
• Length (L): 3 in.
• Coating/Material: Hot-Dip Galvanized
• Country of Origin: United States

Approved Applications

• For shearwall applications, position edge of plate washer within 1/2" of sheathed edge of sill plate
• BPS-6 plate washers are sized to accommodate the 1/2" from the sheathed edge in single- and double-sheathed 2x6 walls
• Standard-cut washer required with BPS slotted bearing plates
• Transferring concentrated compressive forces between two structural elements at critical connections
• Load distribution applications where a greater bearing surface than standard-cut washers is required

Frequently Asked Questions

What is the hole size on the BP 1-1/4HDG bearing plate?

The BP 1-1/4HDG features a 1-5/16-inch hole, which is designed to accommodate a 1-1/4-inch diameter anchor bolt, providing the proper fit and load transfer at the connection point.

Why choose a hot-dip galvanized bearing plate over a standard finish?

The hot-dip galvanized (HDG) coating provides higher corrosion resistance compared to standard finishes, making the BP 1-1/4HDG well-suited for applications exposed to moisture, weather, or other corrosive conditions where long-term durability is essential.

How does this bearing plate differ from a standard-cut washer?

The BP 1-1/4HDG is specifically designed to replace standard-cut washers by offering a significantly greater bearing surface. Its 3 x 3-inch plate dimensions allow it to distribute concentrated compressive loads more effectively across structural connections than a typical washer can provide.

What are the overall dimensions of the BP 1-1/4HDG?

The BP 1-1/4HDG measures 3 inches wide by 3 inches long with a 3/8-inch thickness, providing a robust and stable bearing surface for structural load-distribution applications.

Note: Product dimensions and/or screw or bolt holes may differ from picture.
