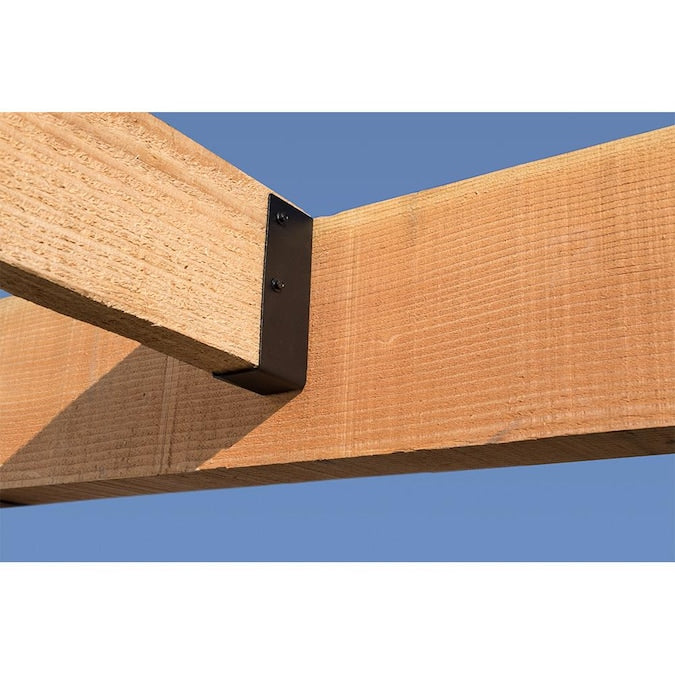

The Simpson APLH24R Outdoor Accents Light Joist Hanger for 2x4 Rough is a decorative concealed-flange connector engineered to join rough-cut 2x4 joists to beams in custom outdoor living structures. Built from 14-gauge steel with a ZMAX galvanized and black powder coat finish, this hanger is purpose-built for exterior and treated-wood applications where long-term corrosion resistance and a polished appearance both matter. It installs with the matching Outdoor Accents connector screw and integrates seamlessly into the Mission Collection and Avant Collection aesthetic.

Key Features

• Concealed-flange design with straight edges - hides structural hardware from view, producing a cleaner, more finished look at every joist connection on your outdoor build
• Fits rough-cut 2x4 lumber - sized specifically for true 2x4 rough dimensions, so the fit is precise and the connection is secure without modification
• 14-gauge steel construction - provides a solid structural base that holds up to the demands of load-bearing outdoor framing applications
• ZMAX galvanization with black powder coat finish - layers two forms of corrosion protection to stand up to exterior conditions and the corrosive chemistry of pressure-treated lumber
• Complements the Outdoor Accents Mission Collection and Avant Collection - coordinates with other decorative hardware in these collections (fasteners sold separately), keeping the visual theme consistent across the entire structure
• Installs with Outdoor Accents Connector screws - pairs directly with the matching SD10112DBB screws for a streamlined installation process using hardware designed to work together

Why This Product

• Aesthetics and structure in one connector - the concealed-flange profile delivers the clean lines of decorative trim hardware while still performing the structural job of a joist hanger, so you do not have to choose between looks and function
• Dual-layer corrosion protection built for the outdoors - ZMAX galvanization combined with a black powder coat finish means this hanger is specifically engineered for the harsh conditions of exterior environments and the elevated corrosion demands of treated-wood contact
• Precise fit for rough-cut lumber - unlike standard hangers sized for nominal dimensions, the APLH24R is matched to actual rough-cut 2x4 measurements, eliminating the slop and misalignment that come with using the wrong hanger size
• Part of a cohesive decorative hardware system - because this hanger is designed to complement the Outdoor Accents Mission Collection and Avant Collection, it integrates with a broader family of matching connectors and fasteners for a unified finished appearance across deck posts, beams, and joist connections

Specifications

• MPN: APLH24R
• Member Size: 2x4 rough
• Width: 2-1/16 in.
• Height: 3-1/16 in.
• Gauge: 14
• Coating: ZMAX
• Finish: ZMAX Galvanized with Black Powder Coat
• Seat Depth: 1-7/8 in.
• Country of Origin: United States

Downloads and Resources

• View Spec Sheet

Frequently Asked Questions

Is the APLH24R designed for rough-cut or nominal lumber?

The APLH24R is designed specifically for rough-cut lumber. It fits a joist that measures an actual 2x4 inches. If your joist is nominal lumber measuring 1-1/2 x 3-1/2 inches, you will need the APLH24 instead.

What fasteners are required to install the APLH24R?

This hanger installs with (6) #10 x 1-1/2 in. Outdoor Accents Connector screws, sold separately (Model: SD10112DBB).

What makes the APLH24R suitable for outdoor and treated-wood applications?

The APLH24R features ZMAX galvanization combined with a black powder coat finish, which together offer extra corrosion resistance specifically designed for exterior environments and treated-wood applications.

What design collections does the APLH24R complement?

The APLH24R complements the Outdoor Accents Mission Collection and Avant Collection, making it a cohesive choice for decorative outdoor structure builds where both aesthetics and structural integrity are priorities.

Related Products

• SD10112DBB - Required Outdoor Accents Connector Screws for installation
• Simpson Strong-Tie Outdoor Accents - Browse the full collection of decorative connectors and fasteners

Note: This APLH24R connector is designed for rough-cut lumber, not nominal lumber (most common). It will only fit a joist that measures an actual 2x4 inches. If you have a nominal joist measuring 1-1/2 x 3-1/2 inches, you will need the APLH24 ornamental joist hanger.
