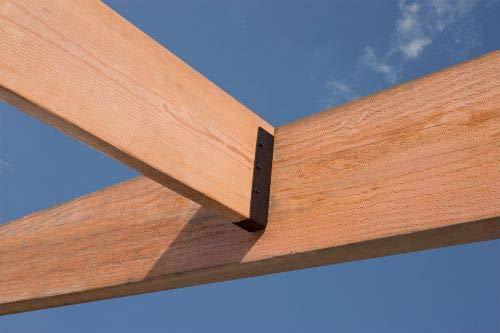

The Simpson APLH1.75-10 Outdoor Accents APLH ZMAX Black Light Joist Hanger is a concealed-flange connector built to join rough 1-3/4 in. x 10 cedar joists to beams in custom outdoor living structures. Manufactured by Simpson, this 14-gauge steel hanger pairs structural reliability with a refined, low-profile appearance, making it a natural fit for decorative decks, pergolas, and other exterior builds where both performance and aesthetics matter. Its ZMAX galvanized finish with black powder coat delivers the corrosion resistance needed for outdoor and treated-wood environments, while the clean straight-edge profile keeps connections looking intentional rather than industrial.

Key Features

• Concealed-flange design with straight edges - hides hardware bulk at joist connections for a cleaner, more finished appearance in visible outdoor structures
• ZMAX galvanization with black powder coat finish - provides layered corrosion resistance suited for exterior exposure and direct contact with treated wood, extending the service life of the connection
• 14-gauge steel construction - delivers a solid structural foundation for light joist applications without unnecessary bulk
• Fits 1-3/4 in. x 10 rough cedar joists with a 1-13/16 in. seat width - engineered for a precise fit with rough-sawn cedar lumber commonly used in custom outdoor framing
• Complements the Outdoor Accents Mission Collection and Avant Collection - coordinates with other decorative hardware in these lines so the entire structure maintains a consistent, designed look
• Installs with #10 x 1-1/2 in. Outdoor Accents Connector screws - designed to work with fasteners engineered specifically for this system, keeping the installation straightforward and the finished result cohesive

Why This Product

• Form and function in one connector - the concealed-flange profile eliminates the protruding flanges typical of standard joist hangers, so structural connections in decorative cedar builds look as purposeful as they perform
• Built specifically for outdoor cedar framing - the combination of ZMAX galvanization and black powder coat is engineered for the corrosive conditions of exterior use and the chemical environment of treated wood, not just general indoor framing
• Designed to coordinate across an entire build - as part of the Simpson Outdoor Accents system, this hanger matches Mission Collection and Avant Collection hardware so brackets, hangers, and connectors throughout the structure share the same black finish and clean aesthetic
• A lighter-duty option with a heavier counterpart available - the APLH light hanger series is right-sized for standard cedar joist connections, and APHH heavy hangers are also available when greater load capacity is needed, giving builders flexibility within the same product family

Specifications

• Model Number: APLH1.75-10
• Member Size: 1-3/4 in. x 10 rough cedar
• Width: 1-13/16 in.
• Height: 7-7/8 in.
• Gauge: 14
• Coating: ZMAX
• Finish: ZMAX Galvanized with Black Powder Coat
• Seat Depth: 1-7/8 in.
• Country of Origin: United States

Approved Applications

• Connecting rough 1-3/4 in. x 10 cedar joists to beams in outdoor living structures
• Exterior applications requiring corrosion resistance
• Treated-wood applications
• Decorative outdoor builds complementing the Outdoor Accents Mission Collection and Avant Collection

Frequently Asked Questions

What fasteners are required to install the APLH1.75-10?

This hanger installs with (16) #10 x 1-1/2 in. Outdoor Accents Connector screws (Model: SD10112DBB), which are sold separately.

What joist size does the APLH1.75-10 accommodate?

The APLH1.75-10 is designed for a 1-3/4 in. x 10 rough cedar joist, with a seat width of 1-13/16 in.

What makes the APLH1.75-10 suitable for exterior use?

This hanger features ZMAX galvanization combined with a black powder coat finish, which offers extra corrosion resistance specifically for exterior and treated-wood applications.

Is there a heavier-duty version of this hanger available?

Yes. APHH heavy hangers are also available for applications that require greater load capacity than the APLH light hanger series provides.

Related Products

• SD10112DBB - #10 x 1-1/2 in. Outdoor Accents Connector Screws (required for installation, sold separately)
• Simpson Strong-Tie Outdoor Accents - Browse the complete collection of Outdoor Accents decorative hardware

Note: Please see item description for specifications. Product dimensions and/or Screw or Bolt holes may differ from picture.
