Product Description
The Simpson Outdoor Accents Mission Collection 8:12 Pitch Gable Plate is a decorative structural connector built to reinforce the connection from a wood beam to three angled wood braces at an 8:12 roof pitch. Crafted from 12-gauge steel with a ZMAX galvanized base and black powder coat finish, this gable plate delivers the corrosion resistance demanded by exterior and treated-wood applications while adding a Southwestern-inspired aesthetic to pergolas, pavilions, and custom timber-frame outdoor living structures. It is part of the broader Outdoor Accents Mission Collection from Simpson, a line designed to unite structural performance with refined decorative hardware.
Key Features
- Designed for an 8:12 pitch connection - matches the specific geometry of your beam-to-brace assembly precisely, eliminating guesswork and ensuring a clean, accurate fit in angled timber applications.
- Made from 12-gauge steel - provides the structural integrity needed to reinforce load-bearing connections in outdoor timber-frame builds without adding unnecessary bulk.
- ZMAX galvanization with a black powder coat - offers extra corrosion resistance for exterior and treated-wood applications, protecting the connector against moisture and chemical exposure while maintaining a polished, decorative appearance.
- Easily installed with Outdoor Accents structural screws and hex-head washers - compatible with STN22 hex-head washers and SDWS22312DBB structural wood screws, keeping the installation process straightforward and the hardware visually consistent.
- Must be installed in pairs for published load values - understanding this pairing requirement upfront allows buyers to plan quantities correctly and ensures the connection performs as engineered; for single part installations, use half the listed values.
Why This Product
- Form and function in one connector - the Mission Collection gable plate does not force a choice between structural reinforcement and visual appeal; the black powder coat finish and Southwestern-inspired profile make it a design element as much as a hardware component, ideal for exposed timber work where aesthetics matter.
- Built specifically for exterior and treated-wood environments - the combination of ZMAX galvanization and black powder coating addresses the dual threats of outdoor moisture and the corrosive chemistry of treated lumber, making this connector a dependable long-term choice for open-air structures.
- Pitch-specific engineering removes compatibility uncertainty - rather than a one-size-fits-all plate, this connector is sized and angled specifically for 8:12 pitch applications, so the fit at the beam-to-brace junction is accurate from the start without field modification.
- Part of a coordinated hardware system - as a Simpson Outdoor Accents product, this gable plate pairs directly with matching Outdoor Accents fasteners, allowing builders to maintain a unified look across an entire outdoor structure rather than mixing unmatched hardware styles.
Specifications
- MPN: APGP812
- Pitch: 8:12
- Gauge: 12
- Coating: ZMAX
- Finish: ZMAX Galvanized with Black Powder Coat
- Member Size: 6x or larger
- Width: 5 in.
- Height: 20-1/2 in.
- Length: 36 in.
- Country of Origin: United States
Approved Applications

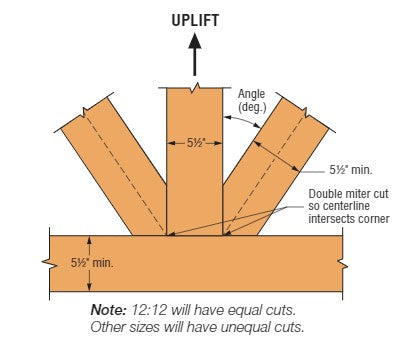

- Reinforcing the connection from a wood beam to three angled wood braces

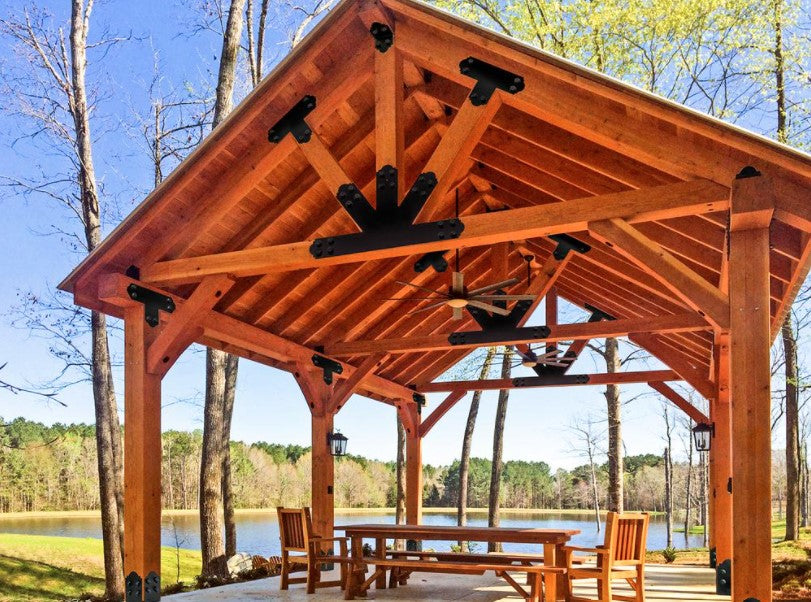

- Exterior outdoor living structures such as pergolas, pavilions, and custom timber-frame builds
- Applications involving treated wood where corrosion resistance is required
Frequently Asked Questions
- What pitch is the APGP812 designed for?
- The APGP812 is designed for an 8:12 roof pitch. Simpson Strong-Tie also offers gable plates in 6:12 and 12:12 pitch sizes for other applications.
- Do I need to install these gable plates in pairs?
- Yes. Connectors must be installed in pairs for published load values. For single part installations, use half the listed values.
- What fasteners are required to install the APGP812?
- Install with (20) STN22 Outdoor Accents hex-head washers and (20) SDWS22312DBB Outdoor Accents structural wood screws. These fasteners are not included with the gable plate.
- Why does the APGP812 feature ZMAX galvanization with a black powder coat?
- The ZMAX galvanization combined with the black powder coat offers extra corrosion resistance specifically for exterior and treated-wood applications, ensuring long-term durability in outdoor environments while maintaining a clean, decorative appearance.
Related Products
Note: The structural screws, hex head washers, and concrete anchors are not included.
