The Simpson ABW7-7Z ABW ZMAX Galvanized Adjustable Standoff Post Base is a heavy-duty connector designed to securely attach a 7-1/8 in. x 7-1/8 in. post to existing hardened concrete. Built for decks, patio covers, and other top-supported structures, this post base combines a slotted adjustable design with ZMAX galvanization to deliver maximum uplift performance and dependable corrosion resistance in demanding exterior environments.

Key Features

• Attaches to existing hardened concrete - anchors large 7-1/8 in. x 7-1/8 in. posts directly to cured concrete slabs, making it well suited for deck framing, patio covers, and similar top-supported column applications
• 1 in. standoff elevation - raises the post end above the concrete surface to promote air circulation and help prevent moisture buildup that leads to post-end rot over time
• Slotted adjustable design - allows positioning around the anchor bolt for optimum post placement during installation, reducing layout errors and rework
• ZMAX galvanized finish - provides extra corrosion resistance compared to standard galvanized coatings, making this base compatible with exterior conditions and pressure-treated lumber without accelerated deterioration
• Base 12-gauge, strap 14-gauge steel construction - delivers the structural strength needed for maximum uplift performance while keeping the connector cost-effective for large post applications
• Installs with 10d common nails - uses a widely available fastener type, simplifying jobsite procurement and keeping the installation process straightforward

Why This Product

• Purpose-built for large post framing - sized specifically for 7-1/8 in. x 7-1/8 in. members, this base eliminates the guesswork of adapting a smaller connector to a heavy structural post, giving builders a proper fit with confidence in the load connection
• Rot protection built into the design - the 1 in. standoff is an engineered feature, not an accessory, meaning every installation automatically keeps the post end elevated and exposed to airflow rather than sitting against moisture-retaining concrete
• ZMAX coating for long-term exterior durability - the thicker galvanized layer is specifically suited for exterior and treated-wood applications where standard coatings are prone to premature corrosion, helping the connection maintain its integrity over the life of the structure
• Adjustability reduces installation errors - the slotted design accommodates minor anchor bolt variations, giving contractors the flexibility to achieve optimum post placement without costly corrections after concrete has already cured

Specifications

• Model Number: ABW7-7Z
• Member / Post Size: 7-1/8 in. x 7-1/8 in.
• Width (W): 7-5/16 in.
• Height (H): 3 in.
• Length (L): 7-5/16 in.
• Steel Gauge: Base 12; strap 14
• Coating / Finish: ZMAX
• Install With: 10d common nails
• Country of Origin: United States

Approved Applications

• Decks and outdoor deck framing
• Patio covers and pergolas
• Top-supported post and column structures
• Exterior applications requiring treated-wood compatible hardware

Frequently Asked Questions

What post size is the ABW7-7Z designed to fit?

The ABW7-7Z is specifically designed for a 7-1/8 in. x 7-1/8 in. post, with a base and strap sized to match that nominal member dimension.

Why does this post base feature a 1 in. standoff?

The 1 in. standoff elevates the bottom of the post above the concrete surface, allowing air circulation and helping prevent moisture from accumulating at the post end - a key factor in reducing post-end rot over time.

What fasteners are required to install the ABW7-7Z?

The ABW7-7Z is installed with 10d common nails. Because the base features a ZMAX G185 galvanized finish, hot-dip galvanized fasteners meeting the specifications of ASTM A153 are required to maintain corrosion resistance compatibility.

What makes ZMAX galvanization suitable for exterior and treated-wood applications?

The ZMAX coating provides a thicker layer of galvanization compared to standard finishes, offering extra corrosion resistance that is especially important in exterior environments and when in contact with pressure-treated lumber, which can be chemically aggressive to standard galvanized hardware.

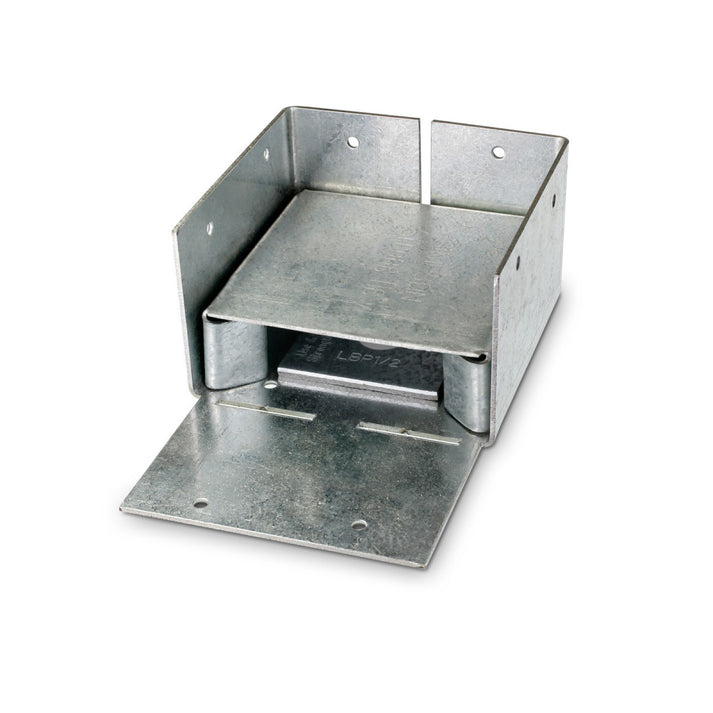

Note: Product dimensions and/or nail or screw holes may differ from picture. Please refer to the item specifications for exact details.
