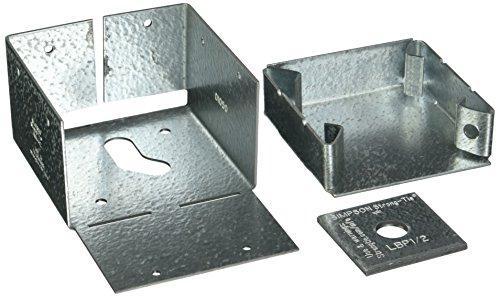

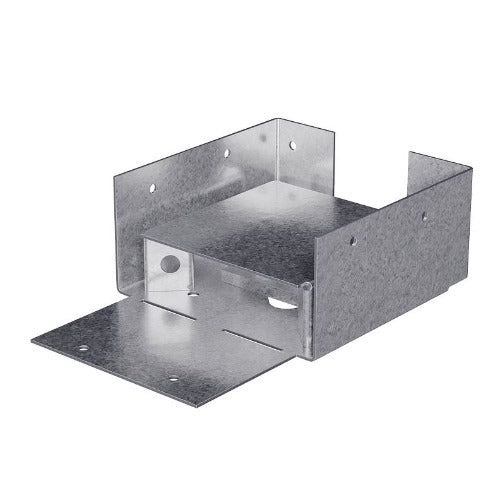

The Simpson ABW44Z Adjustable Standoff Post Base is a 16-gauge steel post base engineered by Simpson to securely anchor a 4x4 post or column to existing hardened concrete. Purpose-built for decks, patio covers, pergolas, and other top-supported structures, it pairs a 1-in. standoff with slotted adjustability and a ZMAX galvanized finish to deliver reliable uplift resistance and long-term corrosion protection in demanding exterior environments.

Key Features

• Attaches to existing hardened concrete - lets you anchor 4x4 posts to already-cured footings and slabs without forming new concrete, simplifying deck and patio cover installations.
• 1-in. standoff design - raises the post end above the concrete surface to reduce moisture contact, helping prevent post-end rot and extending the service life of the post in exterior applications.
• Slotted for adjustability - allows you to shift the base around the anchor bolt for precise post placement, reducing frustration during layout and keeping your structure properly aligned.
• ZMAX galvanized finish - provides enhanced corrosion resistance beyond standard galvanization, making this base well suited for exterior use and direct contact with pressure-treated lumber.
• 16-gauge steel construction - delivers the structural strength needed for maximum uplift performance while keeping the base compact and cost-effective for residential framing projects.
• Compatible with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws - gives you fastener flexibility so you can use the method that best fits your tools and jobsite conditions.

Why This Product

• Built for uplift demands on decks and patio covers - the ABW44Z is specifically designed for versatility, cost-effectiveness, and maximum uplift performance, making it a practical choice for top-supported structures where wind resistance matters.
• Moisture management is built in, not an afterthought - the integrated 1-in. standoff keeps the post end clear of surface moisture, a common source of rot that shortens the lifespan of exterior wood framing.
• ZMAX coating handles treated-wood applications with confidence - the heavier galvanization is formulated to hold up against the accelerated corrosion that can occur when standard coatings contact today's treated lumber chemicals.
• Adjustable design saves time on the jobsite - the slotted anchor bolt opening accommodates minor positioning corrections after the bolt is set, reducing the need for costly rework when footings are not placed perfectly to plan.

Specifications

• Model Number: ABW44Z
• Nominal Post Size: 4x4
• Gauge: 16
• Width (W): 3 9/16 in.
• Height (H): 2 1/4 in.
• Length (L): 3 9/16 in.
• Coating / Finish: ZMAX
• Install With: 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws (sold separately)
• Country of Origin: United States

Approved Applications

• Deck construction - securing 4x4 posts to existing concrete footings
• Patio covers and pergolas - attaching support columns to concrete slabs
• Other top-supported structures requiring a post-to-concrete connection
• Exterior and treated-wood applications where enhanced corrosion resistance is required

Frequently Asked Questions

What type of concrete can the ABW44Z be installed into?

The ABW44Z is designed for installation into existing hardened concrete, making it suitable for attaching posts to already-cured concrete footings and slabs on decks, patio covers, and similar top-supported structures.

Why does the ABW44Z feature a 1-inch standoff?

The 1-in. standoff lifts the base of the post above the concrete surface, which helps prevent direct contact with moisture that can accumulate on concrete. This design feature helps avoid post-end rot, extending the service life of the post in exterior applications.

What fasteners are required to install the ABW44Z?

The ABW44Z is approved for installation with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws. Because the base features a ZMAX (G185) galvanized finish, hot-dip galvanized fasteners meeting the specifications of ASTM A153 are required to maintain compatibility with the coating.

What is ZMAX galvanization and why does it matter for this post base?

ZMAX is a G185 hot-dip galvanized coating applied to the 16-gauge steel base that provides a significantly thicker zinc layer than standard galvanization. This extra corrosion resistance makes the ABW44Z especially well-suited for exterior environments and applications involving treated lumber, where contact with preservative chemicals could accelerate corrosion on lesser-coated hardware.

Note: Product dimensions and/or nail or screw holes may differ from picture. Please see item description for specifications.
