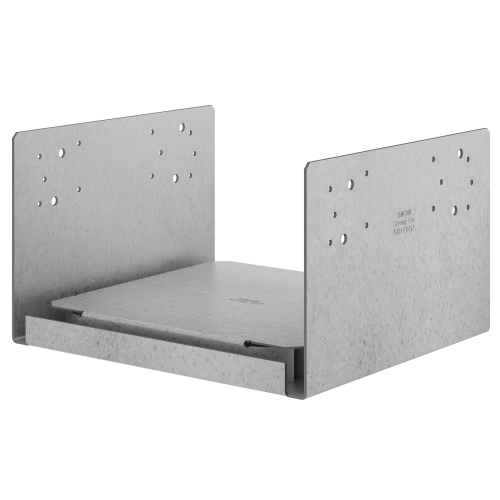

The Simpson Rough 12x12 Adjustable Post Base is a heavy-duty structural connector from Simpson engineered to secure large wooden posts to existing concrete in high-capacity applications. Built from 12-gauge steel with a ZMAX galvanized finish, this post base is designed for demanding exterior environments and treated-wood installations where corrosion resistance is essential. The built-in 1-in. standoff keeps wood elevated off the concrete surface to help prevent rot, while the slotted anchor hole allows for on-site adjustability during installation - making it a practical and reliable solution for structural posts in basements, covered structures, and weather-exposed settings where maximum uplift resistance against wind and seismic forces is required.

Key Features

• Slotted anchor hole in the base - allows flexibility around the anchor bolt so you can fine-tune post positioning when working with existing concrete, reducing the frustration of misaligned anchor points
• Built-in 1-in. standoff design - elevates the post end off the concrete surface to help prevent rot and meets code requirements for structural posts in basements or locations exposed to weather or water splash
• Engineered for increased uplift loads - provides enhanced resistance against earthquake and wind loading forces, making it well suited for structural applications in high-demand environments
• Sized for rough 12x12 posts - designed specifically for this nominal post size so it fits correctly without modification and delivers the full rated performance of the connection
• 12-gauge steel construction - provides the material strength needed for high-capacity post-to-concrete connections in heavy structural applications
• ZMAX galvanized coating - delivers extra corrosion resistance beyond standard galvanized finishes, making this post base a sound long-term choice for exterior use and applications involving pressure-treated lumber

Why This Product

• Adjustability built into the design - the slotted base hole accommodates real-world anchor bolt placement tolerances, saving time and reducing the risk of costly repositioning during installation on existing concrete
• Rot prevention and code compliance in one feature - the 1-in. standoff simultaneously protects the post end from moisture-related decay and satisfies code requirements for exposed or below-grade installations, addressing two critical concerns with a single design element
• Reliable performance under extreme loading - the increased uplift capacity makes this adjustable post base a dependable choice for regions prone to high winds or seismic activity, providing confidence in the integrity of the structural connection
• Built for harsh and treated-wood environments - ZMAX galvanization is specifically suited for exterior conditions and contact with treated lumber, helping this post base maintain its protective finish and structural reliability over time

Specifications

• Model Number: ABU1212RZ
• Nominal Post Size: Rough 12x12
• Width: 11 in.
• Length: 12 in.
• Height: 7 in.
• Gauge: 12
• Coating: ZMAX
• Finish: ZMAX
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
• Country of Origin: United States

Frequently Asked Questions

What is the purpose of the 1-in. standoff on the ABU1212RZ?

The built-in 1-in. standoff is designed to help prevent rot at the end of the post by keeping the wood elevated off the concrete surface. This standoff design also meets code requirements for structural posts installed in basements or in locations exposed to weather or water splash.

What type of galvanization does the ABU1212RZ have, and why does it matter?

The ABU1212RZ features ZMAX galvanization, which provides extra corrosion resistance compared to standard galvanized coatings. This makes it well-suited for exterior applications and use with treated wood, where exposure to moisture or corrosive elements is a concern.

How does the slotted anchor hole improve installation?

The slot in the base enables flexibility around the anchor bolt, allowing for adjustments during installation. This design feature makes precise post placement easier, which is especially helpful when working with existing concrete where anchor bolt positions may not be perfectly aligned.

What fasteners are used to attach the ABU1212RZ to the post?

The ABU1212RZ attaches to the post using 0.162 in. x 3-1/2 in. nails. The base can also be fastened with Strong-Drive SD Connector screws or bolts, offering installation flexibility depending on the application requirements.

Note: Product dimensions may differ from picture.
