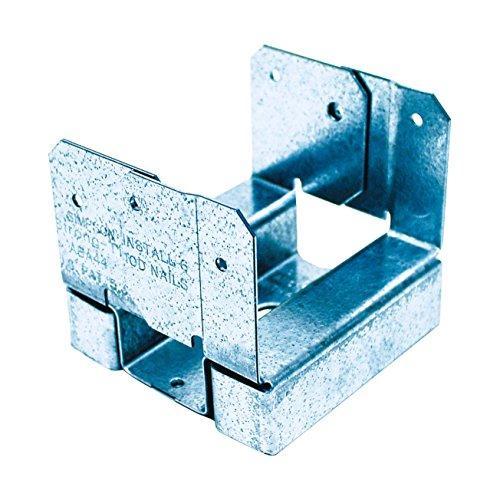

The Simpson ABA44Z ABA ZMAX Galvanized Adjustable Standoff Post Base for 4x4 by Simpson is built to anchor wooden posts securely to existing concrete while actively working to extend the life of the post. The built-in 1 in. standoff keeps the post end elevated above the concrete surface, helping to prevent moisture-related rot in basements, exterior decks, and areas exposed to weather or water splash. Constructed from 16-gauge steel with a ZMAX galvanized finish, this adjustable post base is a reliable, code-conscious choice for structural post connections in both residential and light commercial applications.

Key Features

• Slotted anchor hole in the base - allows adjustability around the anchor bolt so you can fine-tune the exact post position during installation, reducing the frustration of working around imprecise anchor placement
• 1 in. standoff design - meets code requirements for structural posts installed in basements or exposed to weather or water splash, while keeping the post end off the concrete to help prevent rot
• Increased uplift load capacity - engineered to handle the additional forces associated with earthquake or wind loading, adding structural confidence in high-demand environments
• 16-gauge steel construction - delivers solid, durable performance for load-bearing post base applications without unnecessary bulk
• ZMAX galvanization - provides a higher level of corrosion resistance than standard galvanizing, making this post base well-suited for exterior use and direct contact with pressure-treated wood where moisture and preservative chemicals are a concern
• Installs with nails or Strong-Drive SD Connector screws - compatible with (6) 0.148 in. x 3 in. nails or (6) #9 x 1-1/2 in. Strong-Drive SD Connector screws, giving you flexibility to use the fastening method that fits your workflow

Why This Product

• Built-in rot protection through standoff design - the 1 in. standoff is not just a code checkbox; it actively separates the post end from the concrete surface, reducing long-term moisture exposure and helping wooden posts last in demanding outdoor or below-grade conditions
• Adjustability that saves time on real job sites - the slotted anchor hole gives installers the flexibility to shift and align the post base even when the anchor bolt is not perfectly positioned, making precise post placement practical rather than ideal
• ZMAX coating for long-term performance with treated lumber - for decks, pergolas, and structural framing where pressure-treated wood and outdoor exposure are the norm, the ZMAX finish holds up against the corrosive chemistry of treated wood and the wear of wet conditions
• A cost-effective solution that does not compromise on structural performance - designed to handle increased uplift loads from wind or seismic forces while remaining an accessible, straightforward option for connecting a post to an existing concrete foundation

Specifications

• Model Number: ABA44Z
• Nominal Post Size: 4x4
• Gauge: 16
• Width: 3 9/16 in.
• Height: 3 1/16 in.
• Length: 3 3/8 in.
• Coating/Finish: ZMAX
• Standoff Height: 1 in.
• Country of Origin: United States
• Fasteners Required: (1) 1/2 in. concrete anchor and (6) 0.148 in. x 3 in. nails (sold separately)
• Install With: Install with (6) 0.148 in. x 3 in. nails or (6) #9 x 1-1/2 in. Strong-Drive SD Connector screws (Model: SD9112)

Frequently Asked Questions

Why does the ABA44Z have a 1-inch standoff?

The 1 in. standoff design helps prevent rot at the end of the post by keeping it elevated above the concrete surface. It also meets code requirements for structural posts installed in basements or areas exposed to weather or water splash.

What fasteners are used to install the ABA44Z?

The ABA44Z can be installed with (6) 0.148 in. x 3 in. nails or (6) #9 x 1-1/2 in. Strong-Drive SD Connector screws (Model: SD9112), plus (1) 1/2 in. concrete anchor to secure the base to the concrete.

What is ZMAX galvanization and why does it matter?

ZMAX galvanization provides an extra layer of corrosion resistance beyond standard galvanizing, making the ABA44Z well-suited for exterior applications and use with treated wood, where contact with moisture or preservative chemicals is a concern.

How does the slotted anchor hole help during installation?

The slot in the base allows for adjustability around the anchor bolt, giving installers flexibility to fine-tune the exact position of the post even if the anchor bolt placement is not perfectly precise, making accurate post placement significantly easier.

Note: Product dimensions may differ from picture. See item description for specifications.
