The Simpson HU614 HU Galvanized Face-Mount Joist Hanger for 6x14 is a heavy-duty structural connector from Simpson Strong-Tie, engineered for framing applications where additional strength and safety factors are required. Designed to accommodate nominal 6x14 lumber, this face-mount hanger delivers the reliable, code-compliant performance that engineers and contractors depend on for demanding structural builds. Whether you are tackling a large residential project or a commercial framing job, this connector is built to meet the performance standards that serious construction work demands.

Key Features

• "U" design allows for flexibility of placement on the header - makes positioning easier during installation, reducing time spent on alignment and adjustments in the field
• Nominal joist size: 6x14 - sized specifically for larger dimensional lumber, making it the right fit for heavy-duty framing applications that standard hangers cannot accommodate
• Made from 14-gauge steel - provides the structural integrity and load-bearing capacity needed for projects requiring additional strength and safety factors
• Galvanized coating at G90 level - delivers extra corrosion resistance, helping the hanger hold up reliably in moisture-prone environments and extending the service life of the connection

Why This Product

• Trusted by engineers and contractors - Simpson Strong-Tie connectors are the go-to choice for professionals who need structural hardware that is engineered, tested, and manufactured to high quality standards on demanding builds
• Built for heavy structural loads - the HU series is specifically designed as a heavy-duty face-mount hanger, making the HU614 well suited for large-scale framing where smaller connectors simply are not rated for the job
• Flexible header placement - the "U" design gives installers freedom in positioning the hanger on the header, which simplifies layout and helps avoid costly framing errors
• Corrosion-resistant finish for long-term performance - the G90 zinc galvanized coating goes beyond basic protection, making this hanger a dependable option in environments where moisture exposure could compromise an uncoated connector over time

Specifications

• Model Number: HU614
• Member Size: 6x14
• Height: 11-5/8 in.
• Width: 5-1/2 in.
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What lumber size is the HU614 designed to support?

The HU614 is designed for a nominal joist size of 6x14, making it suitable for heavy-duty structural framing applications that require a larger, stronger hanger.

What gauge steel is used in the HU614?

The HU614 is manufactured from 14-gauge steel, providing the heavy-duty strength needed for structures requiring additional strength and safety factors.

What type of corrosion protection does the HU614 have?

The HU614 features a G90 zinc galvanized coating, which provides extra corrosion resistance and makes it well-suited for use in environments where moisture exposure is a concern.

What fasteners should be used to install the HU614?

The HU614 should be installed with 0.162 in. x 3-1/2 in. nails to ensure proper load transfer and a connection that meets structural requirements.

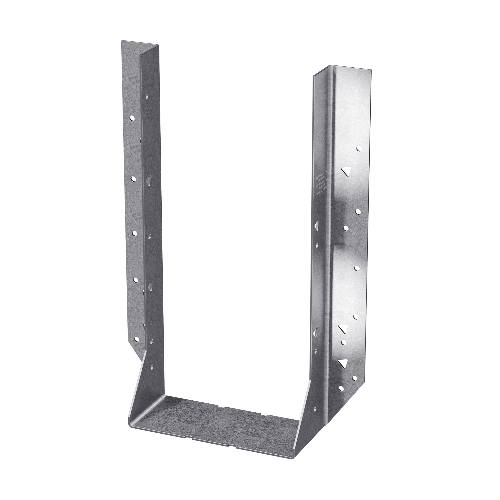

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
