Product Description
The Simpson Strong-Tie S/B4.18/14 is a high-capacity, top-flange hanger engineered for cold-formed steel construction, designed to support (2) 2 in. x 14 in. cold-formed steel joists in demanding structural framing applications. Precision-formed from 97 mil (12 ga.) steel with a G90 zinc galvanized finish, this connector attaches to either cold-formed steel beams using screws or to structural steel beams using powder-actuated fasteners or welds, delivering the dimensional accuracy and reliable load transfer that CFS jobsites require. Load-rated, tested, and code listed, it is a proven connector solution for commercial and residential cold-formed steel framing projects of every scale.
Key Features
- Precision forming and dimensional accuracy - ensures proper bearing area and consistent connection alignment, reducing installation errors and rework on the jobsite.
- High-capacity, top-flange hanger design - delivers the structural strength needed for double cold-formed steel joist applications where load demands are elevated.
- Multiple attachment methods - connects to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds, giving installers flexibility across different beam types.
- Load-rated, tested, and code listed - provides the documentation and compliance confidence required for inspections and engineered CFS framing systems.
- Made from 97 mil (12 ga.) steel - heavy-gauge construction supports the high-capacity performance expected in structural cold-formed steel applications.
- G90 zinc galvanized finish - corrosion-resistant coating helps extend service life in environments where moisture exposure is a concern.
Why This Product
- Built for double cold-formed steel joist applications - specifically sized and load-rated for (2) 2 in. x 14 in. CFS joists, this hanger takes the guesswork out of connector selection for this exact framing configuration.
- Engineered precision means fewer field adjustments - the design provides dimensional accuracy and proper bearing area right out of the box, helping crews maintain framing tolerances and keep projects on schedule.
- Versatile beam compatibility - the ability to fasten to both cold-formed steel and structural steel beams makes this hanger adaptable across a wider range of CFS project conditions without requiring a different connector.
- Code-listed and independently tested - for structural professionals who need load data and compliance documentation, this hanger arrives with the ratings and listings already in place, simplifying the approval process.
Specifications
- Manufacturer Part Number (MPN): S/B4.18/14
- Brand: Simpson Strong-Tie
- Joist Member Size: (2) 2 in. x 14 in. cold-formed steel joists
- Width: 4-3/16 in.
- Height: 14 in.
- Hanger Width: 4-3/16 in.
- Hanger Height: 14 in.
- Gauge: 12 ga.
- Thickness: 97 mil
- Coating / Finish: Zinc Galvanized, G90
- Installation Fasteners: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com (sold separately)
- Country of Origin: United States
Approved Applications
- Supporting (2) 2 in. x 14 in. cold-formed steel joists in CFS framing systems.
- Installation to cold-formed steel beams using screws.
- Installation to structural steel beams using powder-actuated fasteners or welds.
- Cold-formed steel (CFS) construction projects requiring load-rated, code-listed connectors.
- Commercial and residential CFS framing applications requiring high-capacity joist support.
What's Included
- (1) Simpson Strong
Options

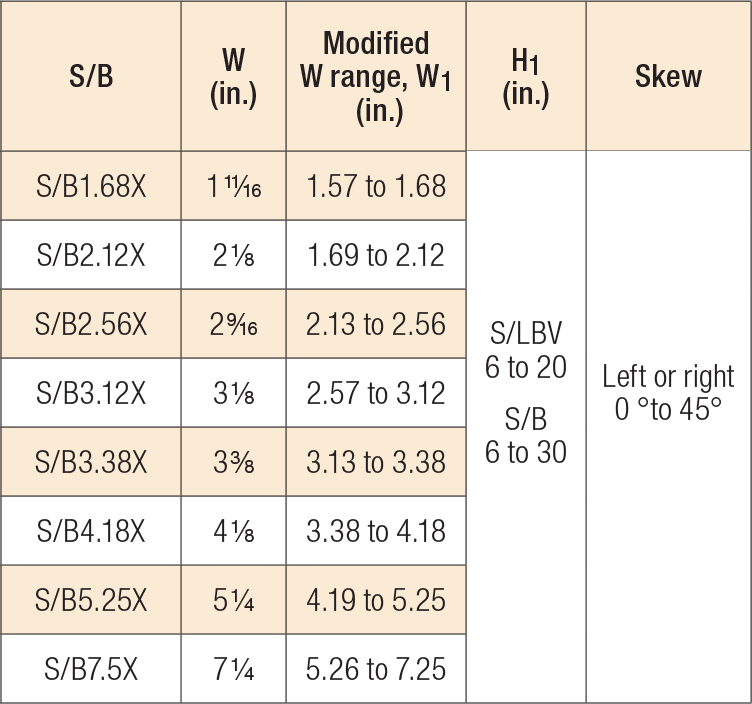

- Can be skewed to a maximum of 45 deg. - Contact us for Customizations / Special orders
Frequently Asked Questions
- What joist size is the S/B4.18/14 designed to support?
- The S/B4.18/14 is designed specifically to support (2) 2 in. width x 14 in. height cold-formed steel joists. It is a double-joist hanger sized for this particular member configuration and is not intended for other joist sizes.
- What beam types can this hanger attach to?
- The S/B4.18/14 can attach to either cold-formed steel beams or structural steel beams. When connecting to cold-formed steel members, it is fastened with screws. When connecting to structural steel, it can be attached using powder-actuated fasteners or welds.
- What material and finish is the S/B4.18/14 made from?
- The S/B4.18/14 is made from 97 mil (12-gauge) steel and features a G90 zinc galvanized finish, which provides corrosion resistance for demanding cold-formed steel construction environments.
- Is the S/B4.18/14 load-rated and code listed?
- Yes, the S/B4.18/14 is load-rated, tested, and code listed. It is manufactured with precision forming and quality control to ensure dimensional accuracy, proper bearing area, and reliable connection performance in structural CFS applications.
