Product Description

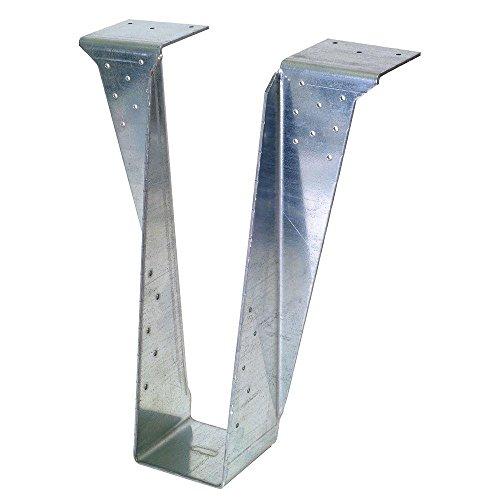

The Simpson HB3.56/11.88 Top Flange Hanger for Heavy Beam 3-1/2 x 11-7/8 is a top-flange hanger from Simpson built to carry medium to high loads in both solid sawn and engineered wood framing applications. Its full-height joist flange captures the top chord of the joist to prevent rotation, and its one-piece construction delivers a cost-effective alternative to welded hangers - making it a reliable choice for demanding structural connections where performance and efficiency both matter.
Key Features
- Top-flange, full-height joist flange design - captures the top chord of the joist to actively prevent rotation and maintain structural alignment under load
- One-piece construction - eliminates the need for welded assemblies, reducing hardware costs without sacrificing load-carrying capacity in medium to high load applications
- Available for special order in sloped and/or skewed configurations - gives engineers and framers the flexibility to address non-standard framing angles without sourcing a completely different product family
- Requires web stiffeners - ensures proper load transfer and structural integrity when used with engineered wood members, keeping the installation code-compliant and dependable
- Made from 10-gauge steel - provides the thickness and rigidity needed to handle heavy beam connections in residential and commercial framing
- Zinc Galvanized G90 coating - delivers extra corrosion resistance for long-lasting durability in environments where moisture exposure is a concern
Why This Product
- Built for heavy-load beam connections - the HB series is specifically engineered to handle medium to high loads, making it well-suited for structural framing projects where a standard joist hanger would fall short
- One-piece design lowers installed cost - by replacing multi-piece welded hangers with a single stamped component, this hanger reduces both material cost and installation time on the job site
- Compatible with solid sawn and engineered wood - versatility across lumber types means one hanger solution covers a broader range of framing scenarios, from traditional dimensional lumber to LVL and I-joist applications
- G90 galvanized finish for lasting corrosion protection - the zinc galvanized coating goes beyond basic protection, making this hanger a dependable long-term choice in structurally critical connections
Specifications
- MPN: HB3.56/11.88
- Member Size: 3 1/2 in. x 11 7/8 in.
- Gauge: 10
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist
- Country of Origin: United States
Options
- Finish: Galvanized. May be ordered hot-dip galvanized. Contact us for Special orders
Downloads and Resources
- See Specifications
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of wood applications is the HB3.56/11.88 compatible with?
The HB3.56/11.88 is designed for use with both solid sawn and engineered wood applications, making it versatile for a wide range of structural framing projects requiring medium to high load capacity.
What nail schedule is required to install the HB3.56/11.88?
Installation requires (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist.
Does the HB3.56/11.88 require any additional components for installation?
Yes, installation of the HB3.56/11.88 requires the use of web stiffeners to ensure proper performance and structural integrity.
What corrosion protection does the HB3.56/11.88 have?
The HB3.56/11.88 features a Zinc Galvanized G90 coating, which provides extra corrosion resistance for long-lasting durability in demanding construction environments.
