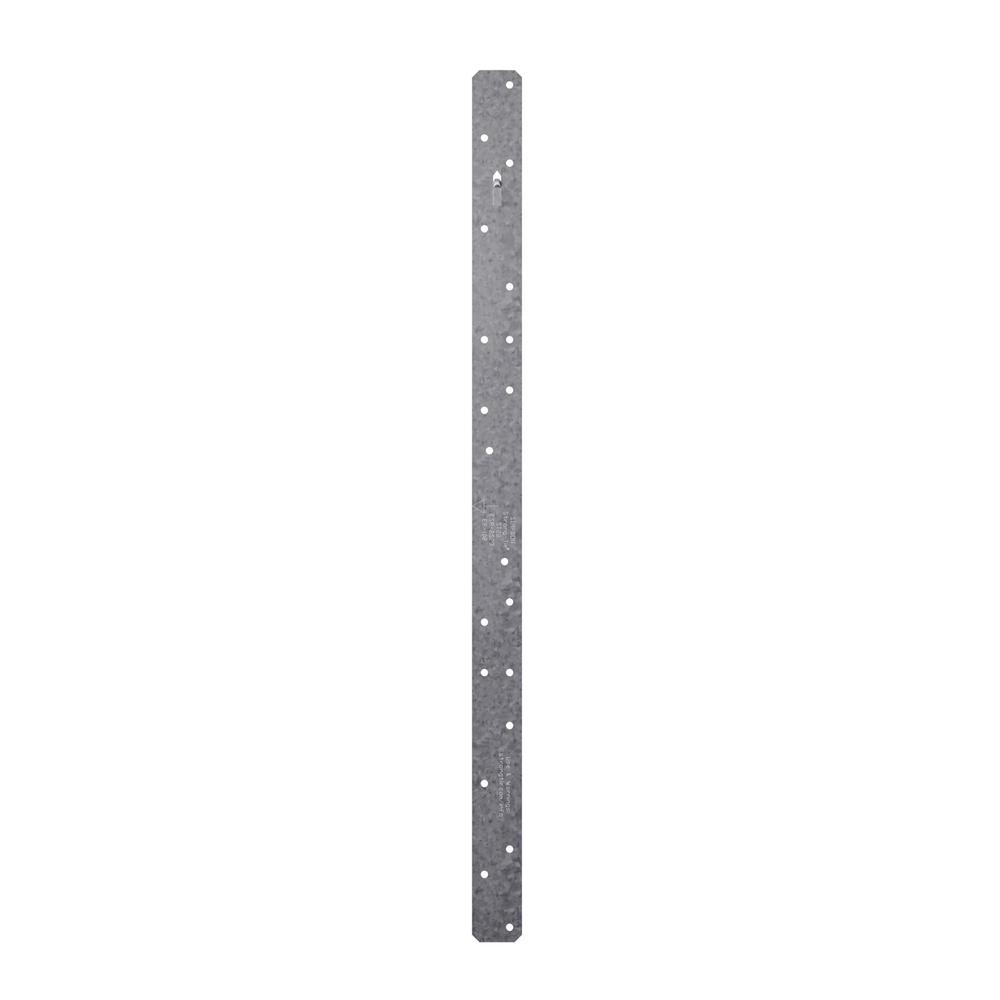

The Simpson ST22 22 in. 16-Gauge Galvanized Strap Tie is a load-rated, precut structural connector engineered by Simpson to resist tension loads across a wide range of framing applications. Built for quick installation and reliable performance, this economical strap tie is the go-to solution where top or bottom plates are cut, at wall intersections, and as a ridge tie - delivering consistent, code-ready results where structural continuity matters most.

Key Features

• Engineered to resist wind and seismic forces - provides critical structural support in high-load conditions, helping keep framed assemblies intact when it counts
• Precut strap design - eliminates field cutting and speeds up installation, reducing labor time without sacrificing precision or performance
• 16-gauge steel construction - delivers the strength and rigidity needed for demanding structural connections without adding unnecessary bulk
• Zinc Galvanized G90 coating - offers a high level of corrosion resistance, helping the strap hold up in moisture-prone and demanding installation environments
• 1-1/4 in. width by 21-5/8 in. length - sized to span common framing gaps and wall plate interruptions with no modification required

Why This Product

• Versatile tension resistance across multiple applications - whether used at wall intersections, as a ridge tie, or where top or bottom plates are cut, this single strap handles the tension loads that keep a structure sound
• Ready to install right out of the package - the precut format means no measuring or trimming on the job site, making it a practical choice for framing crews focused on efficiency
• Dual fastener compatibility - installs with either (18) 0.162 in. x 2-1/2 in. nails or (12) #10 x 1-1/2 in. Strong-Drive SD Connector screws, giving installers flexibility based on the tools and fasteners already on hand
• Economical without compromising engineering - Simpson designed this strap tie to be a cost-effective solution that still meets the load-rated performance standards expected from a structural connector

Specifications

• Model Number: ST22
• Length: 21-5/8 in.
• Width: 1-1/4 in.
• Gauge: 16
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Installation where top or bottom plates are cut
• Wall intersections
• Ridge ties
• Anywhere resistance to tension loads is required

Frequently Asked Questions

What fasteners are required to install the Simpson ST22 strap tie?

The ST22 can be installed using either (18) 0.162 in. x 2-1/2 in. nails or (12) #10 x 1-1/2 in. Strong-Drive SD Connector screws.

What gauge steel is the Simpson ST22 made from?

The Simpson ST22 strap tie is made from 16-gauge steel, providing reliable strength and rigidity for structural applications.

What corrosion protection does the ST22 offer?

The ST22 features a Zinc Galvanized G90 coating, which provides a high level of corrosion resistance suitable for a variety of installation environments.

What are the primary structural uses for the Simpson ST22?

The ST22 is designed to resist tension loads and is ideal for use where top or bottom plates are cut, at wall intersections, and as ridge ties. It is also engineered to help resist wind and seismic forces.

Note: Product dimensions may differ from picture. Please see item description for specifications.
