Product Description

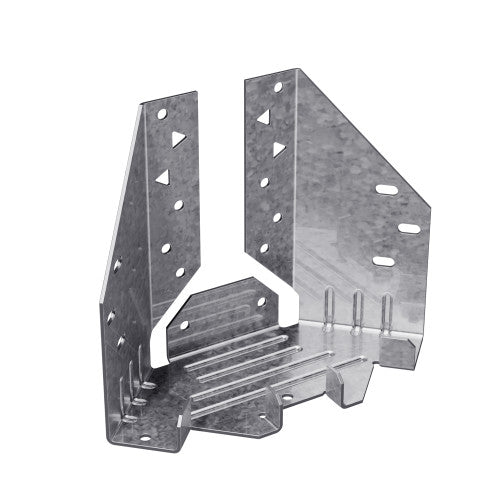

The Simpson MTHMQ-SDS3 4-1/8 in. Galvanized Multiple Truss Hanger with Strong-Drive SDS Screws is a medium-duty structural connector engineered by Simpson Strong-Tie for carrying two or three trusses in residential and light commercial framing applications. Built from 12-gauge steel with a G90 galvanized finish, this hanger features a concealed-flange design and installs using the included Strong-Drive SDS Heavy-Duty Connector screws - delivering strong, reliable truss connections while streamlining the fastening process for framers and contractors alike.
Key Features
- Accommodates right or left hand hips (at 45 deg. skews) and terminal hips with or without the center jack - gives framers the flexibility to handle a wide range of hip roof configurations without sourcing additional hardware.
- Strong-Drive SDS screws are included - eliminates the need to source fasteners separately, and their easy installation allows the hanger to achieve higher loads with fewer fasteners, saving time on the job.
- Concealed-flange design - allows for attachment to vertical web members, keeping the installation clean and structurally sound where traditional flanges would interfere.
- Minimum and maximum fastening options - provide added versatility so installers can optimize for load requirements or jobsite conditions without being locked into a single fastening pattern.
- 12-gauge steel construction - delivers the structural integrity expected from a medium-duty connector built to meet engineering and code requirements.
- Zinc Galvanized G90 finish - provides extra corrosion resistance, helping the connector hold up in environments where moisture exposure is a concern over the life of the structure.
Why This Product
- A complete, ready-to-install truss connection solution - the Strong-Drive SDS screws are included with the hanger, so there is no need to track down compatible fasteners separately, and installation is straightforward from the moment you open the package.
- Engineered specifically for multiple-truss hip framing - the MTHMQ-SDS3 is purpose-built to carry two or three trusses and accommodate both right and left hand hip skews at 45 deg., making it a practical fit for hip roof layouts that demand precision and flexibility.
- Higher load performance with fewer fasteners - the Strong-Drive SDS screw system enables the hanger to reach higher load capacities without requiring an excessive number of fasteners, which speeds up installation and reduces material use on the job.
- Trusted engineering backed by Simpson Strong-Tie quality standards - designed, tested, and manufactured to meet the performance expectations of engineers and contractors, this connector is made in the United States from 12-gauge steel with a G90 galvanized coating for lasting durability.
Specifications
- Model Number: MTHMQ-SDS3
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Installation Fasteners: Strong-Drive SDS Heavy-Duty Connector screws (included)
- Country of Origin: United States
What's Included
Each pack contains (1) MTHMQ-SDS3 Medium-Duty Multiple Truss Hanger, Strong-Drive SDS screws are included.
Frequently Asked Questions
How many trusses can the MTHMQ-SDS3 carry?
The MTHMQ is designed for carrying two or three trusses, making it well-suited for multiple-truss hip and terminal hip framing configurations.
What fasteners are required to install the MTHMQ-SDS3?
The MTHMQ-SDS3 installs with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, which are included with the hanger. These screws are easy to install and allow the hanger to achieve higher loads with fewer fasteners.
Does the MTHMQ-SDS3 accommodate angled hip installations?
Yes. The MTHMQ-SDS3 accommodates right or left hand hips at 45 deg. skews, as well as terminal hips with or without the center jack, providing flexibility for a range of hip roof framing layouts.
What material and finish is the MTHMQ-SDS3 made from?
The MTHMQ-SDS3 is made from 12-gauge steel and features a Zinc Galvanized (G90) finish, providing extra corrosion resistance for long-lasting structural performance.
