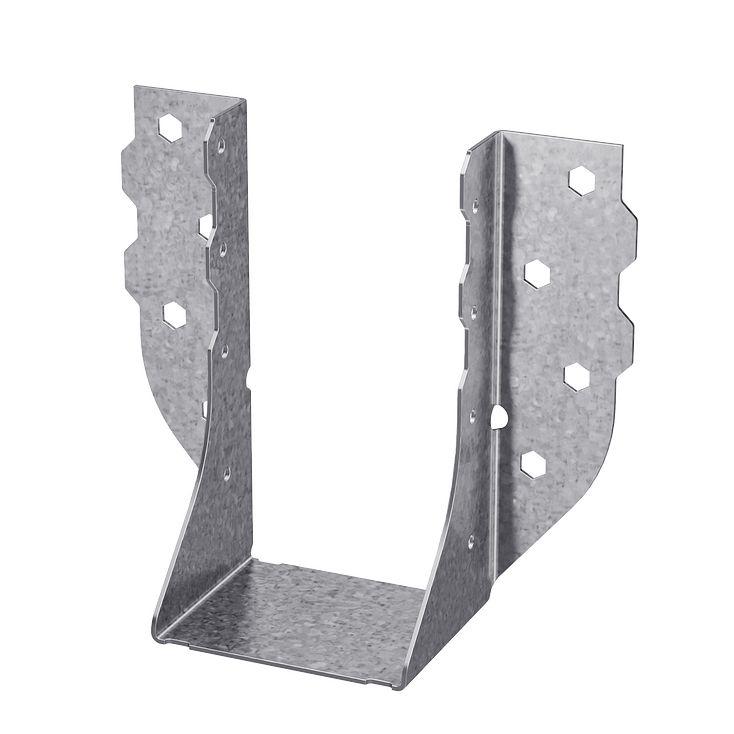

The Simpson LGUM410-SDS LGUM High-Capacity Girder Hanger for Masonry by Simpson is a purpose-built face-mount connector engineered to hang beams, girders, and girder trusses onto concrete or grouted CMU walls with reliable, high-capacity performance. Sized for a nominal 4x10 member, this hanger arrives ready to install - Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for secure engagement into the masonry substrate are included, so there is no need to source fasteners separately. Fabricated from 12-gauge steel with a G90 zinc galvanized finish, it is suited for interior and protected structural connections where long-term durability and code-compliant load transfer are required.

Key Features

• Attaches to concrete or grouted CMU walls using Titen HD anchors - gives builders a reliable, tested anchoring method for masonry applications without improvising fastener selection.
• Strong-Drive SDS Heavy-Duty Connector screws included for wood member attachment - simplifies procurement and ensures the correct fastener pairing is used from the start.
• 12-gauge steel construction - provides the structural rigidity needed to carry high-capacity beam and girder loads at the connection point.
• G90 zinc galvanized finish - delivers extra corrosion resistance for protected interior installations where moisture exposure is a concern.
• Nominal 4x10 member sizing - matches the hanger precisely to standard dimensional lumber, reducing fit adjustments and installation errors.
• Titen HD anchors not recommended for exposed exterior applications - knowing this upfront helps contractors specify the right product for the right environment and avoid costly rework.
• Moisture barrier between beam and wall required per jurisdictional requirements - a built-in reminder that supports code compliance and protects the wood member from masonry-transferred moisture.

Why This Product

• Everything needed for installation is included - with Strong-Drive SDS screws and Titen HD anchors in the package, crews can move straight from delivery to installation without a separate fastener run.
• Engineered specifically for masonry substrates - unlike general-purpose joist hangers, the LGUM series is designed around concrete and grouted CMU wall connections, making it the correct choice for masonry framing details rather than a workaround solution.
• High-capacity performance in a galvanized package - the combination of 12-gauge steel and a G90 galvanized finish means the hanger handles demanding structural loads while resisting corrosion in the damp conditions common around masonry walls.
• Supports code-compliant beam connections in concrete and masonry construction - approved for hanging beams, girders, and girder trusses onto concrete walls and grouted CMU walls, this hanger fits naturally into a wide range of interior structural applications where inspectors expect tested, listed hardware.

Specifications

• MPN: LGUM410-SDS
• Brand: Simpson Strong-Tie
• Member Size: 4x10
• Gauge: 12
• Coating / Finish: Zinc Galvanized, G90
• Seat Depth: 4 in.
• Height: 8-7/8 in.
• Width: 3-5/8 in.
• Country of Origin: United States
• Installation Hardware: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)

Approved Applications

• Hanging beams, girders, and girder trusses onto concrete walls
• Hanging beams, girders, and girder trusses onto grouted CMU (concrete masonry unit) walls
• Interior and protected structural connections requiring high-capacity beam support

What's Included

Each pack contains (1) LGUM410-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of wall can the LGUM410-SDS be anchored into?

The LGUM410-SDS is designed to attach to concrete or grouted CMU (concrete masonry unit) walls using the included Titen HD anchors.

Is this hanger suitable for exposed exterior applications?

No. The Titen HD anchors included with this hanger are not recommended for exposed exterior applications. Additionally, a moisture barrier between the beam and wall should be provided per jurisdictional requirements.

What fasteners are needed to install the LGUM410-SDS, and are they included?

Installation requires Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for attachment into the masonry. Both are included with the hanger.

What material and finish is the LGUM410-SDS made from?

The LGUM410-SDS is made from 12-gauge steel with a Zinc Galvanized (G90) finish, providing extra corrosion resistance for demanding structural applications.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
