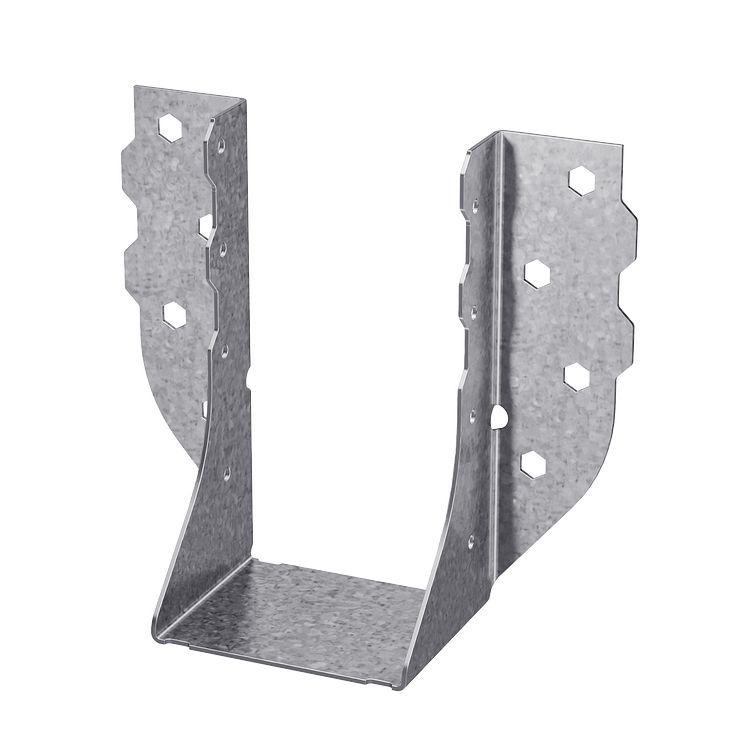

The Simpson LGUM26-4-SDS LGUM High-Capacity Girder Hanger for Masonry is a face-mount beam and girder hanger engineered specifically for concrete and grouted CMU wall applications. Built to carry a quad 2x6 member, this hanger simplifies structural connections by arriving with all required fasteners already included - Strong-Drive SDS Heavy-Duty Connector screws for securing into the wood member and Titen HD anchors for anchoring directly into the masonry, eliminating extra trips to the hardware store and helping keep installations on schedule.

Key Features

• Compatible with concrete and grouted CMU walls via Titen HD anchors - gives contractors and builders a reliable, tested attachment method for masonry construction without sourcing separate anchors.
• Strong-Drive SDS screws and Titen HD anchors included - the complete fastener package ships with the hanger, so the installation is ready to begin right out of the box with no additional hardware required.
• Designed for interior structural connections requiring a moisture barrier - supports jurisdictional compliance by prompting the installer to place a moisture barrier between the beam and wall, protecting the structural connection over time.
• 12-gauge steel construction - the heavier gauge provides the structural rigidity needed for high-capacity girder and beam loads in demanding framing applications.
• Zinc Galvanized G90 finish - the G90 galvanized coating adds a meaningful layer of corrosion resistance, extending service life in environments where bare steel would be vulnerable.
• Seat width of 6-9/16 in. sized for a quad 2x6 member - the precise fit keeps the beam properly seated and aligned, reducing the chance of installation errors and rework.
• Titen HD anchors not recommended for exposed exterior use - knowing this limitation upfront helps specifiers and installers choose the right product for the right location and avoid costly substitutions later.

Why This Product

• Everything needed for installation is included - pairing the hanger with both Strong-Drive SDS screws and Titen HD anchors in a single package means fewer line items to source and fewer opportunities for mismatched fasteners to slow the job down.
• Purpose-built for masonry construction - unlike general-purpose joist hangers, this hanger is specifically engineered for concrete and grouted CMU wall installations, making it the right tool for structural girder connections in masonry-framed buildings.
• High-capacity performance in a durable galvanized package - the combination of 12-gauge steel and a G90 galvanized coating means the hanger is built to handle substantial loads while resisting the corrosion that can compromise structural hardware in interior masonry environments.
• Manufactured by Simpson - Simpson Strong-Tie is a widely recognized name in structural connectors, and specifying this hanger gives builders and inspectors confidence that the product has been designed and tested for the application at hand.

Specifications

• Model Number: LGUM26-4-SDS
• Member Size: Quad 2x6
• Seat Width: 6-9/16 in.
• Height: 5-7/16 in.
• Gauge: 12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 6-9/16 in.
• Country of Origin: United States

Approved Applications

• Hanging girder trusses, solid sawn lumber, and engineered wood products (EWP) onto concrete or masonry walls
• Face-mount hanger installations into concrete or grouted CMU (concrete masonry unit) walls
• Interior structural connections where a moisture barrier between beam and wall is maintained per jurisdictional requirements

What's Included

Each pack contains (1) LGUM26-4-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of wall can the LGUM26-4-SDS be installed into?

This hanger is designed for concrete or grouted CMU (concrete masonry unit) wall applications. The Titen HD anchors included with the hanger are used to secure it directly to the masonry surface.

Can the LGUM26-4-SDS be used in exposed exterior applications?

No. The carbon-steel Titen HD anchors included with this hanger are not recommended for exposed exterior applications. Always review jurisdictional requirements and install a moisture barrier between the beam and wall as required.

What fasteners are required to install this hanger, and are they included?

Installation is made easier using Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws into the wood member and Titen HD anchors into the masonry. Both the SDS screws and Titen HD anchors are included with this product.

What beam size is this hanger designed to support?

The LGUM26-4-SDS is sized for a quad 2x6 nominal member. The seat width is 6-9/16 in. and the hanger height is 5-7/16 in., constructed from 12-gauge G90 galvanized steel for corrosion resistance and structural integrity.

Note: Product dimensions and/or screw or bolt holes may differ from picture.
