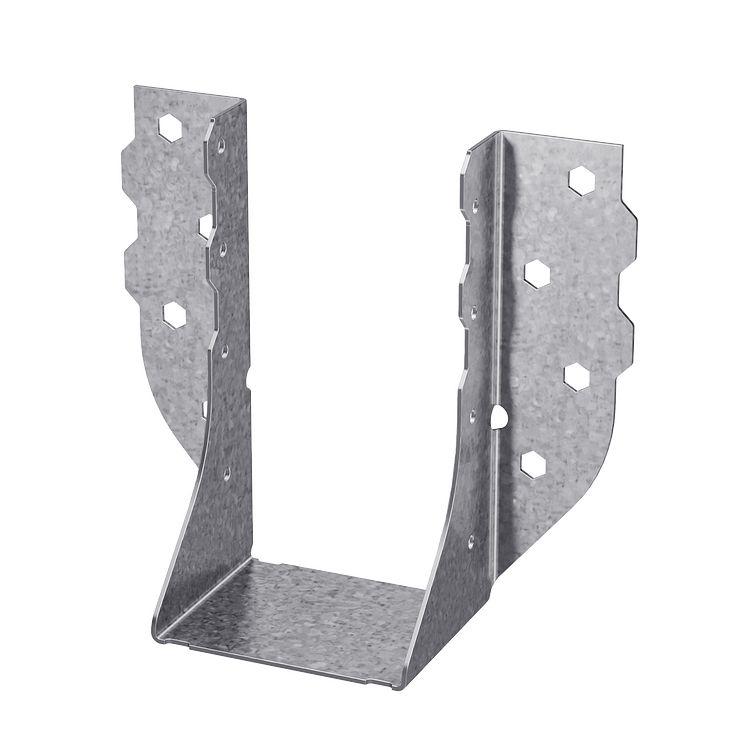

The Simpson LGUM26-3-SDS LGUM High-Capacity Girder Hanger for Masonry from Simpson Strong-Tie is built for demanding structural connections where a triple 2x6 beam must be securely anchored to a concrete or grouted CMU wall. Designed as a face-mount masonry girder hanger, it supports girder trusses, solid sawn lumber, and engineered wood products in applications where high-capacity load transfer is required. Every unit ships complete with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors, giving installers everything needed to complete a code-consistent connection without sourcing additional hardware.

Key Features

• Attaches to concrete or grouted CMU walls using Titen HD anchors - purpose-matched anchors are included, eliminating a separate hardware purchase and ensuring the hanger is installed with the correct fastener system for masonry substrates.
• Strong-Drive SDS Heavy-Duty Connector screws included for wood-side attachment - the complete fastener package means both the masonry and the wood member connections are covered right out of the box, reducing job site delays.
• 12-gauge steel construction - the heavy-gauge steel provides the structural rigidity needed to handle high-capacity loads in girder and beam applications.
• G90 zinc galvanized finish - the galvanized coating adds a meaningful layer of corrosion resistance, extending the service life of the connection in interior and protected structural environments.
• Sized for a triple 2x6 member - the hanger is precisely dimensioned to seat a triple 2x6 beam without modification, supporting a clean, accurate fit during framing.
• Not recommended for exposed exterior applications - clearly defined application limits help builders select the right product for the right environment, avoiding costly installation errors.
• Moisture barrier required between beam and wall per jurisdictional requirements - this built-in installation guidance helps ensure the assembly meets local building code expectations from the start.

Why This Product

• All-in-one masonry connection kit - because the Titen HD anchors and Strong-Drive SDS screws are included with the hanger, structural contractors and framers can complete the full connection - masonry side and wood side - without tracking down separate fastener orders.
• Purpose-engineered for concrete and grouted CMU walls - unlike general-purpose joist hangers, this hanger is specifically designed for masonry substrates, making it a reliable fit for concrete wall framing, block wall construction, and grouted CMU structural systems.
• Heavy-gauge, corrosion-resistant build for long-term performance - the combination of 12-gauge steel and a G90 galvanized finish means the connection hardware is built to hold up over the life of the structure in interior and protected settings.
• Supports a wide range of engineered and sawn lumber applications - approved for use with girder trusses, solid sawn lumber, and engineered wood products, this hanger adapts to the beam material on the job rather than locking a framer into a single lumber type.

Specifications

• MPN: LGUM26-3-SDS
• Member Size: Triple 2x6
• Gauge: 12
• Seat Width: 4-15/16 in.
• Height: 5-1/2 in.
• Coating/Finish: Zinc Galvanized, G90
• Width: 4-15/16 in.
• Country of Origin: United States
• Install With: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)

Approved Applications

• Hanging girder trusses, solid sawn lumber, and engineered wood products (EWP) onto concrete or masonry walls
• Concrete wall installations using Titen HD anchors
• Grouted CMU (concrete masonry unit) wall installations
• Interior and protected structural applications (not recommended for exposed exterior use)

What's Included

Each pack contains (1) LGUM26-3-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of wall can the LGUM26-3-SDS be attached to?

This hanger is designed to attach to a concrete or grouted CMU (concrete masonry unit) wall using the included Titen HD anchors.

Is the LGUM26-3-SDS suitable for exposed exterior applications?

No. The Titen HD anchors included with this hanger are not recommended for exposed exterior applications. It is intended for interior or protected structural installations.

What fasteners are required to install the LGUM26-3-SDS, and are they included?

Installation requires Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for attachment into the masonry. Both fasteners are included with the hanger.

Does a moisture barrier need to be provided between the beam and the wall?

Yes. A moisture barrier must be provided between the beam and the wall per jurisdictional requirements.

Note: Product dimensions and/or screw or bolt holes may differ from picture.
