Product Description

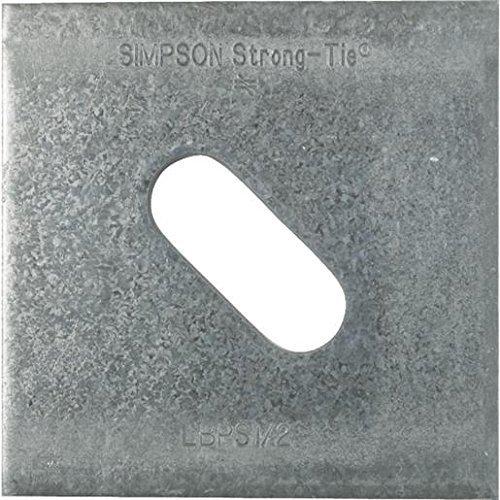

Simpson LBPS 5/8 Slotted Bearing Plate is a 3 in. x 3 in. steel plate engineered to provide a greater bearing surface than standard cut washers at critical foundation anchor bolt connections. Designed for use with 5/8 in. diameter bolts, this slotted bearing plate helps strengthen and distribute the load at sill plate connections, making it a dependable upgrade over cut washers in residential and light commercial framing applications where code compliance and installation precision matter.
Key Features
- Slotted hole design - allows on-site adjustability to account for anchor bolts that are not centered in the sill plate, saving time and reducing the need for repositioning during installation
- Meets latest code requirements for 2x4 and 2x6 walls - offers increased flexibility while keeping your project compliant, so inspections go smoothly without rework
- 3 in. x 3 in. bearing surface - delivers significantly more load distribution than a standard cut washer, reducing stress concentration at foundation anchor bolt connections
- 9/64 in. thickness - provides structural integrity without adding unnecessary bulk, keeping the connection tight and secure within the sill plate assembly
- Zinc Galvanized G90 coating - provides extra corrosion resistance to hold up in demanding construction environments, helping extend the life of the connection
Why This Product
- A smarter alternative to cut washers - the larger 3 in. x 3 in. plate footprint strengthens and distributes load at foundation anchor bolt connections more effectively than standard cut washers, making it a practical upgrade for any sill plate application
- Built-in adjustability for real-world conditions - the slotted hole accommodates anchor bolts that land off-center in the sill plate, reducing frustration and costly corrections on the job site
- Code-ready for common wall assemblies - engineered to meet current code requirements for both 2x4 and 2x6 wall construction, giving builders and inspectors confidence at critical structural connections
- Corrosion-resistant finish for lasting performance - the G90 galvanized coating helps protect against rust and deterioration, making this bearing plate well-suited for foundation-level installations where moisture exposure is a concern
Specifications
- Model Number: LBPS 5/8
- Bolt Diameter: 5/8 in.
- Width: 3 in.
- Length: 3 in.
- Thickness: 9/64 in.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Frequently Asked Questions
- What is the purpose of the slotted hole on the LBPS 5/8?
- The slotted hole allows for adjustability to account for anchor bolts that are not positioned in the middle of the sill plate, providing greater installation flexibility without the need to reposition the bolt.
- What bolt diameter is the LBPS 5/8 compatible with?
- The LBPS 5/8 is designed for use with a 5/8 in. diameter bolt, making it suitable for standard foundation anchor bolt applications.
- Why use a bearing plate instead of a standard cut washer?
- Bearing plates provide a greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at critical connections, such as foundation anchor bolts in sill plate applications.
- What corrosion protection does the LBPS 5/8 offer?
- The LBPS 5/8 features a Zinc Galvanized, G90 coating that provides extra corrosion resistance, making it well-suited for use in demanding construction environments.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
