Product Description

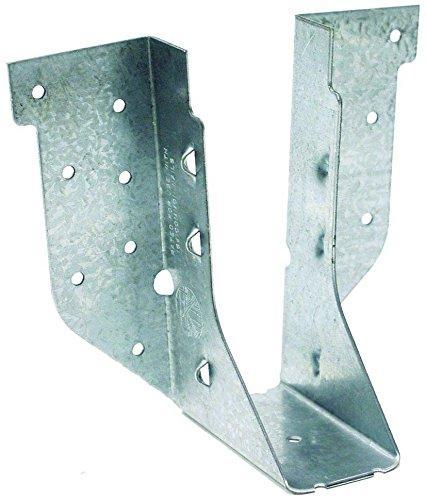

The Simpson HUS26Z HUS ZMAX Galvanized Face-Mount Joist Hanger for 2x6 is a structural connector built for applications where higher load values are needed. Constructed from 16-gauge steel with a ZMAX galvanized finish, this face-mount hanger is engineered to deliver a strong, reliable connection between joist and header in exterior framing and treated-wood construction. Its double-shear nailing design sets it apart from standard hangers, distributing load through two points on each joist nail for a connection that is both stronger and more efficient to install.
Key Features
- Double-shear nailing design - distributes the load through two points on each joist nail, giving the connection greater strength than single-shear alternatives
- Fewer nails required - allows for the use of fewer nails, faster installation, and the use of standard nails for all connections, saving time and labor on the job
- 16-gauge steel construction - provides the structural rigidity needed for higher-load framing applications, including heavier joist spans
- ZMAX galvanized coating - offers extra corrosion resistance for exterior and treated-wood applications, helping the hanger hold up in chemically aggressive environments
- 1-5/8 in. seat width sized for 2x6 members - provides full, consistent bearing support under the joist for a secure and code-compliant fit
- Tabs must not be bent or removed - maintaining the hanger as designed preserves its rated load capacity and structural integrity
Why This Product
- Built for high-load demands - the HUS26Z is specifically designed for applications where higher load values are needed, making it the right choice when a standard joist hanger is not enough
- Faster, more forgiving installation - the double-shear nailing system allows the use of fewer fasteners and standard nails throughout, reducing material costs and speeding up the framing process
- Reliable protection in tough environments - ZMAX galvanization provides extra corrosion resistance beyond standard coatings, making this hanger well-suited for outdoor structures, pressure-treated lumber, and moisture-exposed framing
- American-made quality from Simpson - backed by Simpson's engineering standards and designed as part of a broad connector system, this hanger integrates dependably into structural framing projects where performance consistency matters
Specifications
- MPN: HUS26Z
- Brand: Simpson Strong-Tie
- Nominal Joist Size: 2x6
- Width: 1-5/8 in.
- Seat Depth: 3 in.
- Height: 5-3/8 in.
- Gauge: 16
- Coating/Finish: ZMAX
- Hanger Type: Face-Mount
- Install With: Install with 0.162 in. x 3-1/2 in. nails or #10 x 2-1/2 in. Strong-Drive SD screws (sold separately)
- Country of Origin: United States
Frequently Asked Questions
- What makes the HUS26Z different from a standard joist hanger?
- The HUS26Z is engineered for applications where higher load values are required. Its double-shear nailing design distributes the load through two points on each joist nail, providing greater strength compared to single-shear designs and allowing the use of fewer nails without sacrificing performance.
- Why is ZMAX coating important for this hanger?
- ZMAX galvanization provides extra corrosion resistance, making the HUS26Z well-suited for exterior applications and use with treated lumber, which can be chemically aggressive to standard galvanized coatings. This helps ensure a longer service life in demanding environments.
- Can the tabs on the HUS26Z be bent or removed to fit my application?
- No. The tabs on the HUS26Z must not be bent or removed. Modifying the hanger in this way would compromise its structural integrity and void its load rating and code compliance.
- What fasteners should be used to install the HUS26Z?
- Install with 0.162 in. x 3-1/2 in. nails or #10 x 2-1/2 in. Strong-Drive SD screws. Using the correct fasteners is essential to achieving the rated load values for this hanger.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
