Product Description

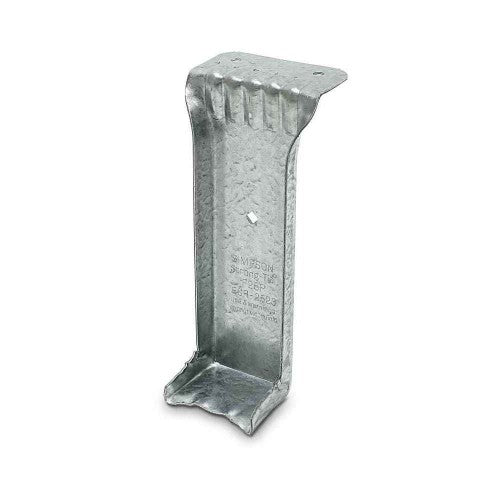

The Simpson F44Z 4x4 Panelized Construction Hanger is a top-flange hanger engineered by Simpson for the panelized roof construction industry. As the first hanger type ever developed by Simpson Strong-Tie, the F-series has demonstrated lasting dependability across decades of real-world application. Built for use with jigs or similar precision fabrication devices, this 18-gauge steel hanger pairs a drop-in panel design with ZMAX galvanization to deliver fast, reliable performance in exterior and treated-wood environments.
Key Features
- Compression dimples lock the joist in place instead of joist nails - speeds up installation significantly, reducing labor time on the job site
- Designed to allow panels to drop easily into place - supports smooth, efficient assembly when working with jigs or precision fabrication systems
- Engineered exclusively for panelized roof construction - purpose-built for the panelized industry, ensuring the hanger performs as intended within that specific application
- Made from 18-gauge steel - provides a solid, dependable structure suited to the repetitive, production-oriented demands of panelized fabrication
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications - helps the hanger hold up in conditions where standard galvanized finishes may fall short
- Part of the most cost-effective top-flange hanger series available - the F-series expedited installation process makes it a practical, budget-conscious choice for high-volume panel fabrication
Why This Product
- A proven legacy in panelized construction - as the original hanger type created by Simpson Strong-Tie, the F-series carries decades of field-tested reliability that fabricators and contractors have come to depend on
- Faster installation without sacrificing holding strength - compression dimples eliminate the need for joist nails while still locking the member securely in place, keeping production lines moving efficiently
- Built for treated-wood and exterior environments - ZMAX galvanization delivers enhanced corrosion resistance beyond standard finishes, making this hanger a smart choice where moisture exposure or treated lumber is a factor
- Cost-effective performance for high-volume panel fabrication - the drop-in design and quick-install mechanics make the F44Z one of the most economical top-flange hanger options for panelized roof construction
Specifications
- Model Number: F44Z
- Member Size: 4x4
- Gauge: 18
- Width (W): 3 9/16 in.
- Height (H): 3 7/16 in.
- Top Flange (TF): 1 1/2 in.
- Coating/Finish: ZMAX
- Install With: (2) 0.148" x 2-1/8" OR 0.148" x 3" Nails
- Country of Origin: United States
Downloads and Resources
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of construction is the F44Z hanger designed for?
The F44Z is designed exclusively for panelized roof construction. All F and HFN hangers are intended for use in the panelized roof industry, which uses jigs or similar devices for precision fabrication.
Why are F-series hangers considered cost-effective?
Because of their expedited installation process, F-series hangers are among the most cost-effective top-flange hangers available. Compression dimples lock the joist in place without the need for joist nails, speeding up the installation process significantly.
What makes the ZMAX finish on the F44Z different from a standard galvanized finish?
The ZMAX galvanization provides extra corrosion resistance compared to standard galvanized finishes, making the F44Z particularly well-suited for exterior applications and use with treated wood.
What nail size is recommended for installing the F44Z?
The F44Z should be installed with (2) 0.148" x 2-1/8" or 0.148" x 3" nails.
