The Simpson End Column Cap with Uplift for 4x4 Post is a steel structural connector engineered for column-beam connections in end-of-beam applications where uplift resistance is a requirement. Built by Simpson, this connector is purpose-designed for 4x post and 4x beam configurations, featuring an extended seat that provides additional bearing surface area beyond one side of the column - helping to distribute loads efficiently and reinforce the integrity of the connection at critical structural junctions.

Key Features

• Uplift Resistance - Specifically engineered for end-of-beam column-beam connections that require uplift values, giving builders confidence in structural performance where vertical forces are a concern.
• Extended Seat Design - The seat extends beyond one side of the column, providing additional bearing surface area that helps distribute load from the beam to the post more effectively.
• 4x Post and 4x Beam Compatibility - Precisely sized for 4x post and 4x beam configurations, ensuring a accurate, secure fit in the intended structural applications.
• Steel Construction with Gray Paint Finish - The steel build delivers the strength needed for demanding structural connections, while the gray paint finish adds a layer of protection for the connector.
• Domestic Manufacturing - Produced in the United States, supporting consistent quality standards expected in structural connectors used in load-critical applications.

Why This Product

• Engineered for End-of-Beam Uplift Applications - Not all column caps are rated for uplift. This connector is specifically designed to handle those demands at end-of-beam positions, making it the right choice when uplift values are part of the structural requirement.
• Better Load Distribution Where It Matters - The extended seat design goes beyond a standard column cap by increasing the bearing surface area beyond one side of the column, supporting more effective transfer of load from beam to post at connection points where stress concentrations are highest.
• Purpose-Built Sizing for 4x Framing - Designed specifically for 4x post and 4x beam combinations, this connector eliminates guesswork and fitting issues, streamlining installation in post-and-beam structural assemblies.
• A Trusted Brand in Structural Connectors - Simpson is a recognized name in structural hardware, and this connector reflects the same commitment to precision and reliability that contractors and builders rely on for code-compliant, load-bearing connections.

Specifications

• Model Number: ECCU44
• Material: Steel
• Finish: Gray Paint
• Post Size: 4x
• Beam Size: 4x
• Length: 6-1/2"
• Height: 4"
• Width: 3-5/8"
• Country of Origin: United States

Approved Applications

• Column-beam connections in end-of-beam applications requiring uplift values
• Structural connections with 4x post and 4x beam configurations
• Applications requiring additional bearing surface area beyond one side of the column
• Connections where load distribution from the beam to the post is critical

Options

• Contact us for Configurable Options and Special orders

• Straps may be rotated 90 deg..

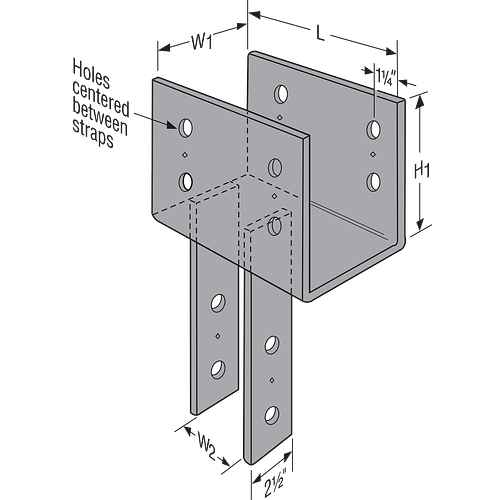

• For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What post and beam sizes is the ECCU44 compatible with?

The ECCU44 is designed for use with 4x post sizes and 4x beam sizes.

What are the dimensions of the ECCU44?

The ECCU44 measures 6-1/2" in length, 4" in height, and 3-5/8" in width.

What material and finish is the ECCU44 made from?

The ECCU44 is constructed from steel and features a gray paint finish for durability and protection.

Where is the ECCU44 manufactured?

The Simpson Strong-Tie ECCU44 is manufactured in the United States.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
