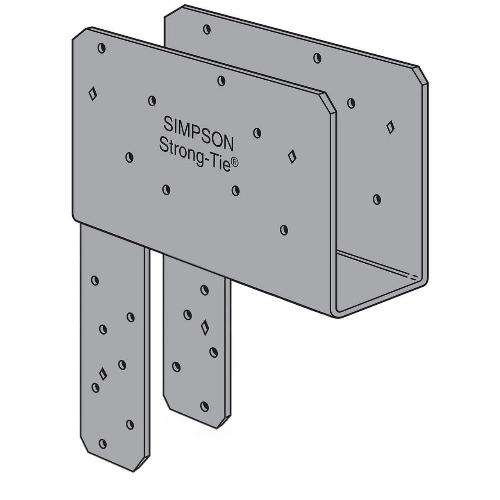

The Simpson Strong-Tie ECCQ44SDS2.5ROT is a rotated-strap end column cap engineered to deliver strong, reliable column-to-beam connections in end-of-beam applications in wood construction. Sized for 4x beams and 4x posts, this heavy-duty connector features an extended seat that provides an additional bearing surface area beyond the side of the column, helping distribute load from the beam and providing critical support at the connection point. The straps on this cap are rotated 90 deg. relative to a standard ECCQ configuration, offering a versatile fastening orientation for framing layouts where the standard strap direction does not align with structural requirements. Included Strong-Drive SDS Heavy-Duty Connector screws allow for faster installation and attachment to a greater net section area of the column than standard through-bolt hardware - making this an efficient and capable solution for post-and-beam wood framing.

Key Features

• Strong-Drive SDS screws included - 28 screws (1/4 in. x 2-1/2 in., Model: SDS25212) come in the box, so you have the correct fasteners on hand and can begin installation immediately without sourcing hardware separately
• Lower-profile SDS screw attachment - SDS screws sit closer to the surface than standard through bolts, resulting in a cleaner, less obtrusive connection that is easier to work around during framing
• Greater net section area engagement - attaching with SDS screws rather than bolts preserves more of the column's structural cross-section, contributing to a stronger and more efficient connection
• Extended bearing seat - the seat surface extends beyond the side of the column to distribute beam load across a larger contact area, reducing concentrated stress at the connection point
• Certified welds - weld quality is independently certified, giving builders confidence in the structural integrity and load-carrying capacity of the connector
• Increased uplift load ratings - uplift capacity has been enhanced to address earthquake and wind loading demands, making this cap suitable for projects in high-load or code-sensitive environments
• Diamond holes for temporary fastening - allow the cap to be tacked in place during positioning before final fasteners are driven, improving accuracy and reducing the chance of misalignment
• Straps rotated 90 deg. - the rotated strap orientation accommodates framing configurations where a standard ECCQ cap cannot be oriented correctly, expanding the range of applications this connector can serve
• 7-gauge steel construction - heavy-gauge steel provides the structural rigidity and durability required for demanding load-path connections in wood framing
• Simpson Strong-Tie gray paint finish - the factory-applied coating provides a base level of protection and a consistent appearance at the connection point

Why This Product

• All-in-one end-of-beam column connection - the ECCQ design is purpose-built for end-of-beam applications, with a seat that extends beyond the post face to distribute beam loads effectively, generally eliminating the need for additional brackets or braces at the connection
• Faster installation without sacrificing strength - Strong-Drive SDS screws drive quickly without pre-drilling through the full member, reducing labor time at the connection while engaging a greater net section area of the column than a standard bolt attachment
• Built for high-load framing environments - certified welds and increased uplift load ratings make this cap a dependable choice for structures subject to wind or seismic forces, where connection performance under lateral and uplift demands is critical
• Rotated strap configuration adds layout flexibility - when standard column cap orientation conflicts with a specific framing layout, the 90 deg. rotated straps allow the same proven ECCQ connection to be used without compromising structural alignment or requiring custom fabrication

Specifications

• Model Number (MPN): ECCQ44SDS2.5ROT
• Brand: Simpson Strong-Tie
• Nominal Beam Width: 4x
• Nominal Post Size: 4x
• Member Size: 4x beam, 4x post
• Material: 7-gauge steel
• Gauge: 7
• Finish / Coating: Simpson Strong-Tie Gray Paint
• Strap Orientation: Rotated 90 deg.
• Country of Origin: United States
