The Simpson CCT46X Column Cap is an engineered structural connector built specifically for column-to-beam connections where two beams meet at the top of a single post in a T-shape configuration. Designed for use with a 4x beam and a 6x post, this connector evenly distributes load across the connection point - one of the most structurally demanding junctions in post-and-beam construction. Fabricated from 7-gauge steel with a gray paint finish, the CCT46X is a purpose-built solution for residential and commercial framing projects where precision fit, certified strength, and code-compliant performance are required. With configurable dimensions available per designer specifications, it adapts to a wide range of project requirements including pergolas, pavilions, porches, and engineered structural assemblies.

Key Features

• T-shape configuration engineered for bisecting beam intersections - supports two beams meeting at a single column top, providing reliable load distribution at one of the most critical junctions in post-and-beam framing
• Sized for 4x beam and 6x post members - designed to fit standard dimensional lumber used in a wide range of residential and commercial structural framing applications, reducing the need for field modification
• 7-gauge steel construction - heavy-duty material thickness delivers the structural rigidity and load capacity demanded by engineered post-and-beam assemblies
• Gray paint finish as standard - provides a corrosion-resistant protective coating suitable for covered outdoor structures and interior framing applications
• Configurable W3 and H2 dimensions - Width W3 and Height H2 can be set per structural designer details, allowing the connector to accommodate custom or non-standard project specifications without compromise
• NDS code-compliant connection - suited for projects requiring connections that meet recognized structural standards, giving designers and builders confidence in the approved application
• Hot-dipped galvanized finish available - an alternative finish option is offered for applications requiring enhanced corrosion resistance beyond the standard gray paint

Why This Product

• Purpose-built geometry for T-configuration framing - rather than adapting a generic connector, the CCT46X is specifically engineered for the T-shape column-to-beam junction, meaning the fit, load path, and performance are all optimized for exactly this application
• Configurable dimensions accommodate designer-specified requirements - with W3 and H2 adjustable per structural designer details, this connector works within custom and engineered project scopes where off-the-shelf connectors fall short
• Heavy-gauge steel in a connector designed for high-demand junctions - the 7-gauge steel construction is matched to the structural demands of bisecting beam connections in post-and-beam assemblies, including covered outdoor structures like pergolas and pavilions
• Approved for both residential and commercial structural framing - the CCT46X is recognized for use across a broad range of project types requiring NDS code-compliant connections, making it a dependable specification choice for engineers and contractors alike

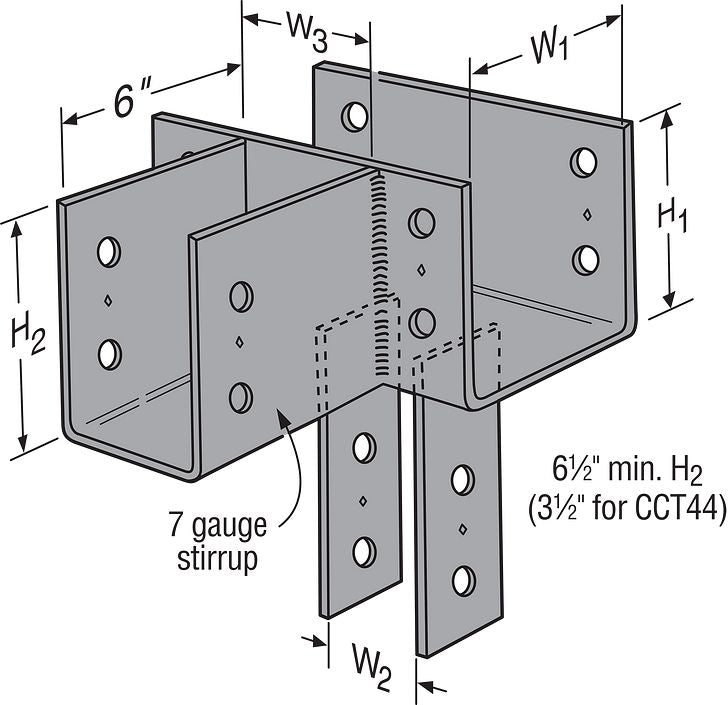

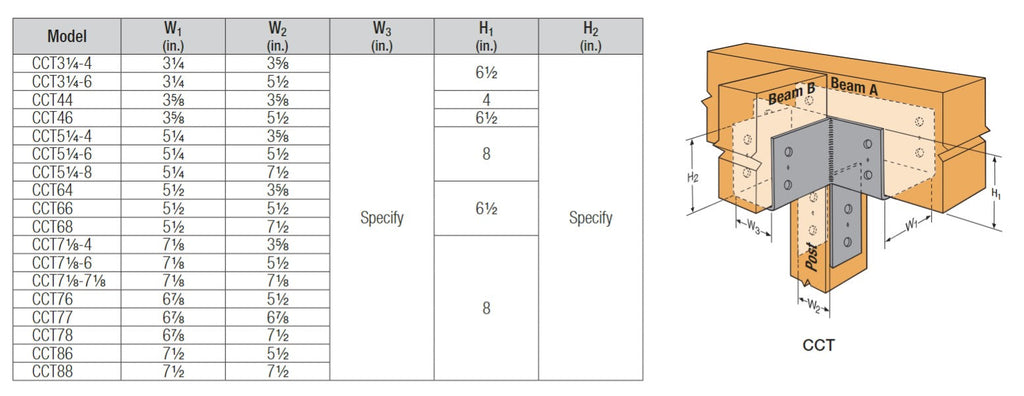

Specifications

• Model Number: CCT46X
• Series: CCT Column Cap - T Configuration
• Beam Size: 4x
• Post Size: 6x
• Width 1: 3 5/8 in.
• Width 2: 5 1/2 in.
• Length: 11 in.
• Height 1: 6 1/2 in.
• W3 (Width) & H2 (Height): Configurable
• Material: 7 Gauge Steel
• Finish: Gray Paint

Approved Applications

• Column-to-beam connections where two beams meet in a "T" configuration on top of a single column
• Post-and-beam structural assemblies requiring load distribution at bisecting beam intersections
• Residential and commercial structural framing projects requiring NDS code-compliant connections
• Projects specified by a structural designer or engineer requiring custom-fit connector dimensions
• Covered outdoor structures such as pergolas, pavilions, and porches where precision connections are critical

Options

• Finish: Gray Paint (standard) | Hot-Dipped Galvanized (available)
• Configurable Dimensions: Width W3 and Height H2 are configurable per designer specifications
• Contact us for configurable options and custom orders

Frequently Asked Questions

What beam and post sizes is the CCT46X designed to fit?

The Simpson CCT46X is specifically designed for use with a 4x beam and a 6x post, making it suited for standard post-and-beam construction applications where those dimensional members are specified.

What does the "T-shape" configuration mean for this column cap?

The T-shape configuration means the CCT46X is engineered to support two beams meeting at a single column in a "T" formation - where one bisecting beam intersects at the top of a post. This design distributes the load from the bisecting beam evenly across the connection point, reinforcing structural integrity at that junction.

What material and finish is the CCT46X made from?

The CCT46X is fabricated from heavy-duty 7-gauge steel with a durable gray paint finish, providing superior load capacity and long-term durability in demanding structural applications.

Are the welds and bolt spacing on the CCT46X code-compliant?

Yes. All welds on the CCT46X are certified for strength and loading performance, and the bolt spacing meets NDS code requirements to ensure optimal performance and code-compliant installations.
