Product Description

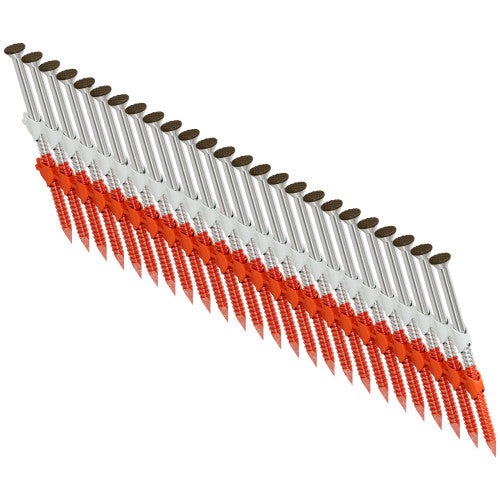

The Simpson 20 - 22 deg. Plastic Strip Ring-Shank Casing Head Nail, 2-3/8 in. 11 ga. Brown 304 SS is an 8d collated nail engineered for pneumatic nailers used in wood deck board installation and fastening siding to wood. Built from Type 304 stainless steel, this annular-ring-shank nail delivers long-lasting corrosion resistance alongside superior withdrawal resistance, while the countersunk casing head with a brown painted, checkered finish keeps the surface clean and professional on decking and siding applications alike.
Key Features
- Annular-ring shank - increases withdrawal resistance compared to smooth-shank nails, providing a more secure attachment that holds decking and siding firmly in place over time.
- Countersunk casing head - sits flush or slightly below the surface for a clean, finished appearance on deck boards and siding without raised fastener heads.
- Brown painted finish with checkered head pattern - the durable color coat and textured surface mimic wood grain, helping fastener heads blend naturally with common decking and siding materials.
- Type 304 stainless steel construction - resists corrosion in outdoor environments, making these nails well suited for exposed deck and siding installations where moisture is a factor.
- 20 - 22 deg. plastic strip collation - enables consistent, obstruction-free auto-feed in compatible pneumatic nailers, reducing driving force and increasing installation speed compared to hand nailing.
- 1,000-nail package - a job-ready quantity that keeps work moving on larger decking and siding projects without frequent reloading stops.
Why This Product
- Purpose-built for siding and deck board fastening - the combination of a countersunk casing head, brown finish, and checkered pattern is specifically designed to produce a neat, low-visibility result on the finished surfaces where these nails are most commonly used.
- Superior holding power where it counts - the annular-ring shank resists pull-out forces that smooth-shank fasteners cannot match, helping deck boards and siding panels stay tight through seasonal expansion, contraction, and outdoor stress.
- Corrosion resistance for long-term outdoor performance - Type 304 stainless steel is a recognized standard for durability in moisture-exposed applications, meaning the fasteners are built to last as long as the materials they secure.
- Pneumatic-tool compatible for faster installation - the 20 - 22 deg. plastic strip collation works with most major manufacturers' pneumatic nailers, letting crews move faster and maintain consistent driving depth across every fastener.
Specifications
- Model No.: S11A237KJB
- Penny Size: 8d
- Length: 2-3/8 in.
- Gauge: 11
- Shank Diameter: 0.120 in.
- Head Diameter: 1/4 in.
- Head Type: Casing Head (Countersunk)
- Head Pattern: Checkered
- Head Color: Brown
- Shank Type: Annular-Ring Shank
- Collation Type: Plastic Strip
- Collation Angle: 20 deg. - 22 deg.
- Material: Type 304 Stainless Steel
- Finish: Type 304 Stainless Steel
- Package Quantity: 1,000
- Country of Origin: United States
Approved Applications
- Wood deck board installation
- Fastening siding to wood
What's Included
- 1,000 x Simpson Strong-Tie S11A237KJB 8d, 2-3/8 in., 11-gauge, Brown Ring-Shank Casing Head Nails (20 deg. - 22 deg. Plastic Strip)
Compatible Tools
The following pneumatic nailers are known to accept the S11A237KJB. If you don't see your specific tool model listed, please refer to the complete Tool Compatibility Matrix, or Contact us and a sales professional will assist with fastener selection.
Frequently Asked Questions
What pneumatic nailers are compatible with these collated nails?
These nails feature a 20 deg. - 22 deg. plastic strip collation angle, which is compatible with most major manufacturers' pneumatic nailers that accept this collation type. The plastic strip design enables consistent, obstruction-free auto-feed for efficient installation.
What are the primary applications for the S11A237KJB nail?
This nail is designed for fastening wood deck boards and fastening siding to wood. The brown painted, countersunk casing head blends with common decking and siding materials, making it well suited for both residential and commercial exterior applications where a clean, finished appearance is important.
Why does the ring-shank design matter for decking and siding installations?
The annular ring-shank increases withdrawal resistance compared to a smooth-shank nail, providing a more secure long-term attachment. This is especially important in decking and siding applications where fasteners are exposed to seasonal wood movement and varying weather conditions.
What material are these nails made from, and how does it affect durability?
These nails are manufactured from Type 304 stainless steel, which provides long-lasting corrosion resistance. This makes them a durable choice for exterior applications such as deck boards and siding, where fasteners are regularly exposed to moisture and the elements.
