Product Description

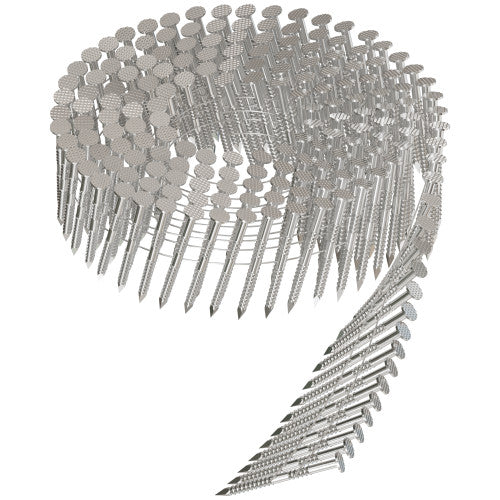

The Simpson 15 deg. Wire Coil Full Round Head Ring-Shank Nail 2 in. x.099 in. 12 Ga. 304 SS 3600-Pack is a 6d, 2 in. collated framing and decking nail engineered by Simpson for professional-grade holding strength and long-term corrosion resistance. Built with an annular ring shank and finished in Type 304 stainless steel, this nail is designed to deliver a secure, lasting attachment in decking and general framing applications where both withdrawal resistance and weather durability are critical. The 15 deg. wire-coil collation is compatible with many major manufacturers' pneumatic coil nailers, helping reduce driving force and increase installation speed on the job.
Key Features
- Annular ring shank - increases withdrawal resistance compared to a smooth shank, so fastened boards and framing members are less likely to work loose over time
- Type 304 stainless steel finish - provides high-level corrosion resistance, making these nails well suited for decking and outdoor framing exposed to moisture
- Checkered head pattern - blends with wood grain, reduces glare from sunlight, and accepts surface finishes for a clean, professional appearance
- 15 deg. wire-coil collation - compatible with many major manufacturers' pneumatic coil nailers, reducing driving force and increasing installation speed
- Full round head - maximizes bearing surface against the wood for a strong, code-friendly connection in framing and deck board applications
- Diamond point - promotes accurate starting and consistent penetration, reducing the chance of splitting during installation
- 3,600-count pack - provides a high-volume supply suited to production framing and decking work, minimizing reload interruptions
Why This Product
- Built for demanding outdoor applications - Type 304 stainless steel construction delivers high-level corrosion resistance, making this nail a reliable choice for wood deck boards and exterior framing where moisture exposure is a constant concern
- Superior holding power over standard smooth-shank nails - the annular ring shank is specifically designed to increase withdrawal resistance, keeping deck boards and framing members locked in place even under repeated loading and seasonal wood movement
- Speeds up production without sacrificing quality - 15 deg. wire-coil collation pairs with pneumatic coil nailers from many major manufacturers, allowing faster, more consistent driving and fewer stoppages during large framing or decking jobs
- Finish-friendly head design - the checkered head pattern blends naturally with wood grain, minimizes glare, and accepts surface finishes, so the nail disappears into the finished surface rather than standing out against it
Specifications
- Model No.: S12A200PNB
- Material / Finish: Type 304 Stainless Steel
- Penny Size: 6d
- Gauge: 12
- Length: 2 in.
- Shank Diameter: 0.099 in.
- Shank Type: Annular-Ring Shank
- Head Type: Full Round Head
- Head Diameter: 1/4 in.
- Head Pattern: Checkered
- Point Type: Diamond Point
- Collation Type: Wire Coil
- Collation Angle: 15 deg.
- Package Quantity: 3,600
- Country of Origin: United States
Options
- For tool compatibility questions, refer to the complete Tool Compatibility Matrix, or Contact us and a sales professional will assist with fastener selection.
Frequently Asked Questions
- What type of nailer is compatible with these wire-coil nails?
- These nails feature 15 deg. wire-coil collation, which is compatible with many major manufacturers' pneumatic coil nailers designed for 15 deg. wire-coil collated fasteners. Always verify your specific tool's compatibility with 15 deg. wire-coil nails before use.
- Why is an annular ring shank preferred for decking and framing applications?
- The annular ring shank - also called a ring shank - increases withdrawal resistance compared to a smooth shank nail, providing a more secure attachment that is less likely to work loose over time. This makes it well suited for decking and general framing applications where holding strength is critical.
- What makes Type 304 stainless steel a good choice for these nails?
- Type 304 stainless steel provides high-level corrosion resistance, making these nails suitable for use in environments where exposure to moisture or the elements could cause standard steel fasteners to rust or degrade over time. This helps maintain the integrity of the connection throughout the life of the structure.
- What are the key dimensions and specifications for the S12A200PNB nail?
- This nail is 2 inches in length, 12 gauge, with a shank diameter of 0.099 inches and a full round head measuring 1/4 inch in diameter. It features a diamond point for clean penetration and is sold in a 3,600-count pack.
