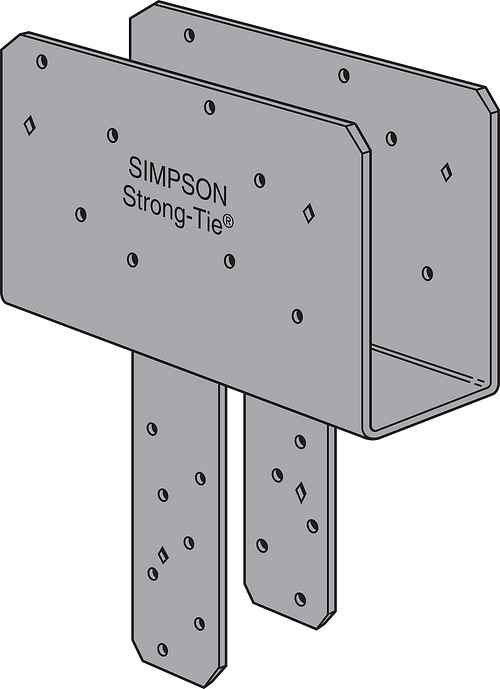

The Simpson CCQ77SDS2.5ROT is a heavy-duty column cap engineered for reliable column-to-beam connections in wood construction, sized for 6-3/4 in. beams and 6-3/4 in. posts with straps rotated at 90 deg. to accommodate beam-column alignment where a standard orientation will not work. Designed around 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws, this connector attaches to a greater net section area of the column than a conventional bolt attachment, making it a structurally sound and faster-to-install choice for projects subject to high uplift loads from earthquake or wind loading.

Key Features

• 90 deg. Rotated Strap Orientation - allows the column cap to align properly with beams running in a direction that a standard-orientation cap cannot accommodate, expanding its usefulness on complex framing layouts.
• 3-Gauge Steel Construction with Certified Welds - delivers the structural integrity required for demanding load-bearing applications, giving builders confidence in connections where uplift resistance is critical.
• Strong-Drive SDS Screw Fastening - attaches to a greater net section area of the column compared to through-bolt methods, reducing installation time while maintaining structural performance.
• Extended Seat Bearing Surface - the seat of the column cap provides additional bearing area beyond each side of the column, helping distribute beam loads more evenly across the connection point.
• Gray Paint Finish - provides a clean, consistent appearance suitable for exposed structural applications while offering a baseline level of surface protection.
• Includes Fasteners - the required 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws are provided with the column cap, so the connection hardware is ready to use right out of the box.

Why This Product

• Purpose-Built for High-Uplift Structural Connections - explicitly approved for structural connections subject to high uplift loads from both earthquake and wind loading, making it a reliable choice for code-compliant construction in demanding environments.
• Rotated Straps Solve a Real Framing Problem - the 90 deg. strap rotation addresses beam-column alignment situations where a conventional column cap is not an option, removing the need for field modifications or custom fabrication.
• Faster Installation Without Sacrificing Strength - the SDS screw-based attachment system covers more of the column's net section area than through-bolt alternatives, streamlining the installation process for structural framing crews.
• American-Made Simpson Engineering - produced in the United States by Simpson, a brand recognized for structural connector performance, this column cap is built to the engineering standards that structural and framing professionals depend on.

Specifications

• Model Number: CCQ77SDS2.5ROT
• Strap Orientation: 90 deg. Rotated Straps
• Beam Size: 6-3/4 in.
• Post Size: 6-3/4 in.
• Thickness: 3 Gauge
• Finish: Gray Paint
• Fastener Type: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws (included)
• Beam Width: 6-3/4 in.
• Width 1: 6-7/8 in.
• Width 2: 6-7/8 in.
• Length 1: 11 in.
• Height 1: 7 in.
• Country of Origin: United States

Approved Applications

• Column-to-beam connections in wood construction
• Structural connections subject to high uplift loads from earthquake loading
• Structural connections subject to high uplift loads from wind loading
• Applications requiring a low-profile fastener alternative to through bolts
• Projects where rotated (90 deg.) strap orientation is required for beam-column alignment

What's Included

• 1 x CCQ77SDS2.5ROT Column Cap with Rotated Straps
• 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws (provided with the column cap)

Options

• Contact us for Configurable Options and Special orders
• The CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are the same as the CCQ and ECCQ.

Frequently Asked Questions

What column size is the CCQ77SDS2.5ROT designed to fit?

The CCQ77SDS2.5ROT is designed for use with 6-3/4 x 6-3/4 columns, providing a properly sized connection between the column and beam.

What does the "ROT" in the model name mean?

The "ROT" designation indicates that this column cap features rotated straps at 90 deg., which allows for versatile installation orientations compared to a standard strap configuration.

What type of fasteners are used to install this column cap?

This column cap is designed for use with Strong-Drive SDS Heavy-Duty Connector screws. These screws attach to a greater net section area of the column than a standard bolt attachment, offer a lower profile than through bolts, and make installation faster while providing a structurally superior connection.

Is this column cap suitable for use in high-wind or seismic areas?

Yes. The CCQ77SDS2.5ROT features increased uplift load capacity specifically for earthquake or wind loading conditions. It is also built with 3-gauge steel construction and certified welds, making it appropriate for demanding structural applications where these loading concerns are present.
