The Simpson CCQ44SDS2.5ROT CCQ Rotated-Strap Column Cap for 4x Beam, 4x Post with Strong-Drive SDS Screws is engineered by Simpson to deliver strong, reliable column-to-beam connections in wood construction. The cap's seat extends beyond each side of the column to provide additional bearing surface area, helping distribute beam loads and reinforce the connection at every point of contact. This rotated-strap model - where the straps are oriented 90 deg. relative to the standard configuration - installs with Strong-Drive SDS Heavy-Duty Connector screws, attaching to a greater net section area of the column than a standard bolt attachment normally entails. Built from 7-gauge steel with a Simpson Strong-Tie gray paint finish and produced in the United States, this column cap is suited for demanding structural applications including those requiring enhanced resistance to earthquake or wind forces.

Key Features

• Strong-Drive SDS screws provide a lower profile than standard through bolts - keeps the connection tight and clean without the bulk of traditional hardware, simplifying installation in tight framing conditions
• Certified welds throughout the assembly - gives builders confidence that every welded joint meets verified strength and loading standards
• Uplift loads have been increased for earthquake or wind loading - makes this column cap a dependable choice for projects in high-wind or seismic zones where uplift resistance is critical
• Extended bearing seat beyond each side of the column - distributes beam loads across a larger surface area, reducing concentrated stress at the connection point
• Straps rotated 90 deg. relative to the standard orientation - accommodates framing layouts where the standard strap position would conflict with adjacent members or structural elements
• Diamond holes for temporary fastening - allow the installer to hold the cap in position during layout and alignment before final fastening, reducing the chance of misplacement
• Made from 7-gauge steel with a Simpson Strong-Tie gray paint finish - delivers substantial structural rigidity and a durable coated surface suited for interior wood framing applications
• SDS screws attach to a greater net section area of the column than a bolt attachment normally entails - results in a stronger, more efficient connection that maximizes the load-carrying capacity of the post

Why This Product

• A complete, job-ready connection solution - the column cap ships with the 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws needed for installation, so there is no need to source compatible fasteners separately or risk using hardware that could reduce load performance
• Built for high-demand structural environments - with uplift loads increased for earthquake or wind loading and certified welds throughout, this cap is engineered to hold up where structural performance is not negotiable, including residential and light commercial framing in demanding climate zones
• Faster installation without sacrificing connection strength - the SDS screw-driven attachment eliminates the time-consuming drilling and hardware assembly required by through-bolt connections, while still achieving a strong, code-suitable column-beam joint
• Rotated-strap geometry expands layout flexibility - the 90 deg. rotated strap configuration lets contractors use this cap in framing situations where a standard-orientation cap would be blocked by adjacent structural members, reducing the need to modify surrounding framing

Specifications

• Model Number: CCQ44SDS2.5ROT
• Member Size: 4x beam, 4x post
• Beam Width: 3-1/2 in.
• Width 1: 3-5/8 in.
• Width 2: 3-5/8 in.
• Length 1: 11 in.
• Height 1: 7 in.
• Gauge: 7
• Coating: Simpson Strong-Tie Gray Paint
• Finish: Simpson Strong-Tie Gray Paint
• Country of Origin: United States

What's Included

• Includes (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What fasteners are used to install the CCQ44SDS2.5ROT, and are they included?

This column cap installs with (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212), which are included with the column cap. Note that lag screws will not achieve the same load.

What makes the SDS screws preferable to standard through bolts for this application?

The Strong-Drive SDS Heavy-Duty Connector screws provide a lower profile than standard through bolts and attach to a greater net section area of the column than a bolt attachment normally entails, resulting in a strong and efficient connection.

Is this column cap suitable for use in high-wind or seismic conditions?

Yes. Uplift loads have been increased for earthquake or wind loading, making the CCQ44SDS2.5ROT appropriate for projects where enhanced resistance to these forces is required.

What does the rotated strap configuration mean for this model?

The "ROT" designation indicates that the straps are rotated 90 deg. relative to a standard CCQ column cap orientation. This option accommodates specific framing layouts where the strap placement needs to be adjusted for the project's structural requirements.

Related Products

• CCOQ - Column Cap Only (no straps), available for field-welding to pipe or other columns; dimensions are the same as the CCQ.
• ECCOQ - End Column Cap with Legs Omitted, available for field-welding to pipe or other columns; dimensions are the same as the ECCQ.

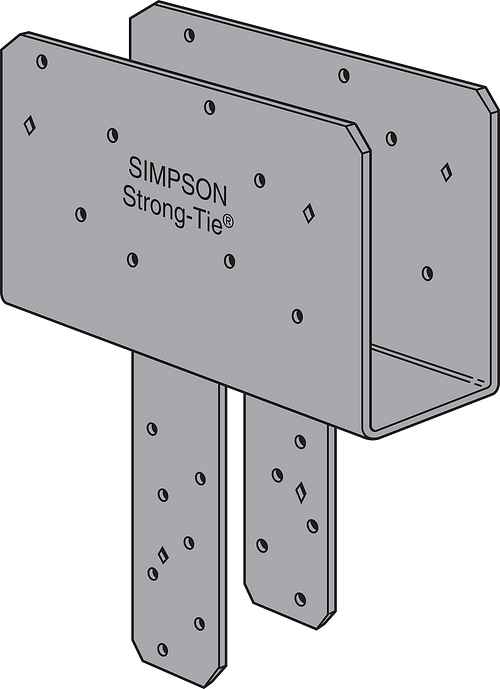

Note: Product dimensions and/or screw holes may differ from picture.
