Product Description

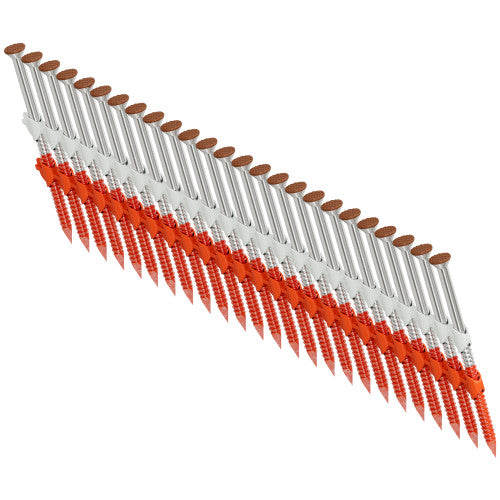

The Simpson 3-1/4 in. Sienna Ring-Shank Casing Head Nail is a 20 deg. - 22 deg. plastic strip collated fastener built for professional fastening of wood deck boards and siding to wood. Manufactured by Simpson from Type 304 stainless steel, this 12d casing-head nail measures 3-1/4 in. in length at 10 gauge with a 0.131 in. shank diameter, delivering the corrosion resistance and holding power demanded by demanding outdoor installations. The Sienna painted finish and checkered head pattern work together to blend with decking and siding materials for a clean, finished appearance, while plastic strip collation ensures consistent, obstruction-free auto-feed in most major manufacturers' pneumatic nailers.
Key Features
- Countersunk casing head - sits flush with the surface for a neat, professional finish on deck boards and siding without protruding hardware
- Sienna painted finish with checkered head pattern - the color and texture are specifically designed to blend with decking and siding materials, keeping fasteners visually unobtrusive after installation
- Annular ring-shank design - increases withdrawal resistance compared to a smooth shank, providing a more secure and long-lasting attachment in outdoor applications subject to ongoing stress and movement
- Type 304 stainless steel construction - delivers exceptional corrosion resistance for durability in the wet and variable conditions typical of exterior decking and siding projects
- 20 deg. - 22 deg. plastic strip collation - engineered for consistent, obstruction-free auto-feed and compatible with most major manufacturers' pneumatic nailers, reducing driving force and increasing installation speed
- 1,000 nails per package - bulk quantity supports continuous workflow on larger decking and siding jobs without frequent reloading
Why This Product
- Purpose-built for decking and siding - every design detail, from the countersunk casing head to the Sienna color and checkered pattern, is tailored specifically for fastening wood deck boards and siding to wood, so the finished result looks intentional rather than industrial
- Superior holding power for exterior applications - the annular ring-shank significantly increases withdrawal resistance, making these collated ring-shank nails a more reliable long-term choice than smooth-shank alternatives in environments where fasteners face repeated stress and seasonal movement
- Corrosion resistance without compromise - Type 304 stainless steel construction means these nails maintain their integrity in moisture-exposed outdoor environments, protecting both the fastener and the surrounding wood material over time
- Built for production-speed installation - plastic strip collation at 20 deg. - 22 deg. pairs with most pneumatic framing and finish nailers for fast, uninterrupted auto-feed, letting crews move through deck and siding work efficiently without hand-nailing delays
Specifications
- Model Number (MPN): S10A325KJS
- Penny Size: 12d
- Length: 3-1/4 in.
- Gauge: 10
- Shank Diameter: 0.131 in.
- Head Diameter: 1/4 in.
- Head Type: Casing Head (Countersunk)
- Head Pattern: Checkered
Options
- For tool compatibility questions, refer to the complete Tool Compatibility Matrix, or Contact us and a sales professional will assist with fastener selection.
Frequently Asked Questions
What nail guns are compatible with these collated nails?
These nails feature 20 deg. - 22 deg. plastic strip collation, which is designed for consistent and obstruction-free auto-feed and is compatible with most major manufacturers' pneumatic nailers that accept 20 deg. - 22 deg. plastic strip collated nails.
What applications are these nails designed for?
These nails are suitable for fastening wood deck boards and fastening siding to wood. The countersunk casing head, Sienna painted finish, and checkered head pattern are all specifically designed to blend with decking and siding materials for a clean, professional appearance.
Why is the ring-shank design important for decking and siding applications?
The annular ring-shank increases withdrawal resistance compared to a smooth-shank nail, providing a more secure and long-lasting attachment. This is especially important in outdoor applications like decking and siding where fasteners are subject to ongoing stress and environmental exposure.
What material are these nails made from, and why does it matter for outdoor use?
These nails are made from Type 304 stainless steel, which provides superior corrosion resistance for long-lasting durability in demanding outdoor environments. This makes them well suited for deck and siding installations where fasteners are regularly exposed to moisture and the elements.
