Product Description

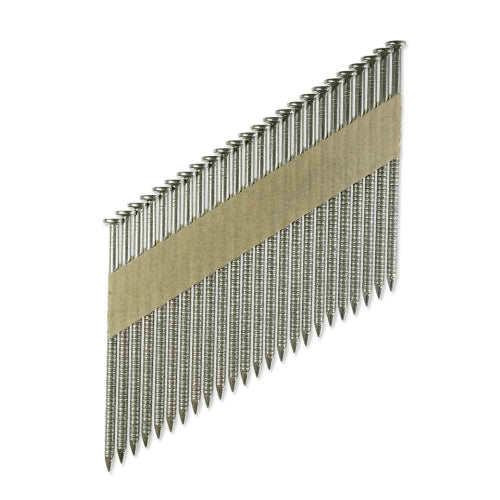

The Simpson 10d x 3 in. 31 deg. - 34 deg. Paper Tape Clipped Head Ring-Shank Nail in Type 304 Stainless Steel is an 11-gauge collated framing nail built for pneumatic nailers operating in the 31 deg. - 34 deg. collation angle range. Engineered by Simpson for general framing work, this nail combines an annular ring shank with Type 304 stainless steel construction to deliver dependable holding power and high-level corrosion resistance wherever moisture exposure is a concern. Paper tape collation keeps nails feeding cleanly and consistently, helping reduce driving force and increase installation speed on the job.
Key Features
- Smooth D-shaped clipped head - provides a low-profile, consistent seating surface that works reliably with compatible pneumatic framing nailers
- Annular ring-shank design - significantly increases withdrawal resistance compared to a smooth shank, creating a more secure attachment that holds up under load and movement
- Paper tape collation - keeps nails clean and feeding smoothly through the magazine, reducing driving force and helping maintain a faster installation pace
- Type 304 stainless steel material and finish - delivers high-level corrosion resistance, making these nails a dependable choice in applications where moisture or humidity is a factor
- Diamond point tip - promotes cleaner nail entry and helps reduce splitting in framing lumber during driving
- 31 deg. - 34 deg. collation angle - ensures compatibility with many major manufacturers' pneumatic framing nailers that accept nails in this angle range
Why This Product
- Built to resist corrosion in demanding environments - Type 304 stainless steel construction provides high-level protection against moisture and corrosion, making these ring-shank nails a smart choice for framing projects exposed to the elements
- Superior holding power over standard smooth-shank nails - the annular ring shank increases withdrawal resistance, so connections stay tight and secure even under the stresses common in structural framing applications
- Engineered for pneumatic efficiency - paper tape collation and a 31 deg. - 34 deg. angle format allow these nails to feed smoothly and drive cleanly in compatible pneumatic nailers, keeping work moving with fewer interruptions
- A trusted Simpson fastener for general framing - backed by Simpson's reputation for quality fastener engineering, these collated stainless steel nails are designed to meet the real-world demands of professional framing work
Specifications
- Model Number: S300T31250
- Penny Size: 10d
- Length: 3 in.
- Gauge: 11
- Shank Diameter: 0.120 in.
- Shank Type: Annular-Ring Shank
- Head Type: Clipped Head
- Head Pattern: Smooth D-Shaped Head
- Point Type: Diamond Point
- Collation Type: Paper Tape
- Collation Angle: 31 deg. - 34 deg.
- Material / Finish: Type 304 Stainless Steel
- Quantity: 250
Approved Applications
- General Framing
What's Included
- 250 x Simpson 10d x 3 in. Type 304 Stainless Steel, 11-Gauge, Clipped Head, Ring-Shank, Paper Tape Collated Nails (Model S300T31250)
Compatible Pneumatic Tools
The following pneumatic nailer models are confirmed compatible with this nail's 31 deg. - 34 deg. paper tape collation format. If your tool model is not listed, refer to the complete Tool Compatibility Matrix, or Contact us and a sales professional will assist with fastener selection.
- Brand: Model(s)
- Bosch: SN350-34C
- Bostitch: F33PT
- DeWalt: D51825, D51822
Frequently Asked Questions
What collation angle is required, and which pneumatic nailers are compatible with these nails?
These nails use a 31 deg. - 34 deg. paper tape collation angle, making them compatible with many major manufacturers' pneumatic framing nailers that accept nails in that angle range. Always verify your specific tool's accepted collation angle before use.
Why choose a ring-shank nail over a smooth-shank nail for framing applications?
The annular ring shank on these nails significantly increases withdrawal resistance compared to a smooth-shank nail, providing a more secure and lasting attachment. This makes them well suited for general framing applications where holding power is critical.
What material are these nails made from, and are they suitable for use in moisture-prone environments?
These nails are made from Type 304 stainless steel, which provides high-level corrosion resistance. This makes them a dependable choice for applications where exposure to moisture is a concern, offering greater durability than standard carbon steel fasteners in such conditions.
What are the key dimensional specifications for the Simpson S300T31250?
These are 10d nails with a 3-inch length, an 11-gauge wire diameter, and a 0.120-inch shank diameter. The head is a smooth D-shaped clipped head, and the point is a diamond point. Each pack contains 250 nails.
