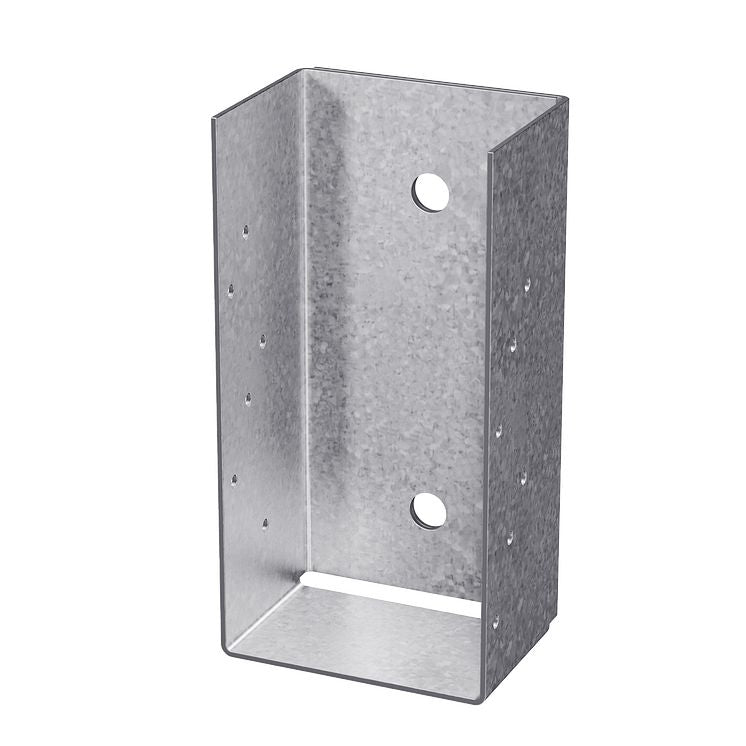

The Simpson MBHU5.50/11.25KT is a galvanized masonry beam hanger designed to provide a reliable face-mounted connection between beams and masonry or concrete walls. Engineered by Simpson as a non-welded, one-piece connector, it accommodates solid sawn lumber, engineered wood beams, and trusses - making it a versatile choice for a wide range of structural framing applications. The kit ships complete with Titen HD screw anchors and Strong-Drive SDS Heavy-Duty Connector screws, so installers have everything required to get the job done without sourcing additional hardware.

Key Features

• Face-mounted, non-welded, one-piece connector design - simplifies handling and positioning against masonry or concrete walls, reducing installation complexity on the job site
• Compatible with solid sawn beams, engineered wood beams, and trusses - provides flexibility across multiple framing scenarios without requiring a different connector for each beam type
• Titen HD screw anchor installed after the wall is built - allows precise placement in the correct location, eliminating the alignment challenges that come with cast-in-place bolts set before wall construction is complete
• 10-gauge steel construction - delivers the structural strength and rigidity needed for demanding load-bearing connections in masonry and concrete wall assemblies
• Zinc galvanized G90 finish - provides corrosion resistance to help the connector hold up over time in appropriate installation environments
• Carbon-steel Titen HD anchor not recommended for exposed exterior applications - knowing this upfront helps specifiers and installers select the right product for the intended environment and avoid premature corrosion issues
• Moisture barrier between beam and wall required per jurisdictional requirements - a reminder that proper detailing protects both the connection and the surrounding structure for long-term performance
• Fasteners included in the kit - the (2) Titen HD screw anchors and (12) Strong-Drive SDS Heavy-Duty Connector screws ship with the hanger, so installation can begin without a separate trip to source compatible hardware

Why This Product

• A complete, ready-to-install kit - because the matched Titen HD anchors and Strong-Drive SDS screws are included, there is no guesswork about fastener compatibility, and installers can move straight from delivery to installation
• Post-wall anchor installation for accurate placement - unlike cast-in-place bolts that must be set before the wall is complete, the Titen HD screw anchor goes in after construction, giving crews a straightforward path to precise alignment every time
• Broad beam compatibility in a single connector - one hanger handles solid sawn lumber, engineered wood products, and trusses, making the MBHU a practical go-to for contractors working across varied structural framing projects
• Trusted Simpson quality with G90 galvanized protection - the 10-gauge steel body and zinc galvanized G90 coating combine structural durability with corrosion resistance, supporting long-term performance in masonry and concrete wall applications

Specifications

• MPN: MBHU5.50/11.25KT
• Member Size: 5-1/2 in. x 11-1/4 in.
• Seat Width: 5-1/2 in.
• Seat Height: 11-1/4 in.
• Gauge: 10
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States

What's Included

• (2) 3/4-in. x 5-in. Titen HD screw anchors
• (12) 1/4-in. x 2-1/2-in. Strong-Drive SDS Heavy-Duty Connector screws

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What types of beams is the MBHU5.50/11.25KT compatible with?

The MBHU beam hanger is suitable for solid sawn beams, engineered wood beams, and trusses, making it a versatile solution for a wide range of structural applications.

Are fasteners included with this beam hanger?

Yes. The kit includes (2) 3/4-in. x 5-in. Titen HD screw anchors and (12) 1/4-in. x 2-1/2-in. Strong-Drive SDS Heavy-Duty Connector screws, so you have everything needed for installation.

Can the MBHU5.50/11.25KT be used in exposed exterior applications?

The carbon-steel Titen HD anchor included with this hanger is not recommended for exposed exterior applications. Additionally, a moisture barrier between the beam and wall should be provided per jurisdictional requirements.

Why is the Titen HD anchor easier to install than cast-in-place bolts?

Because the Titen HD screw anchor is installed after the wall is built, it can be precisely located in the correct position - eliminating the alignment challenges associated with cast-in-place bolts that must be set before the wall is complete.
