The Simpson Masonry Hanger Skewed Right 3-9/16 x 11-1/4 is a single-piece, non-welded connector engineered for top-flange hanger applications in concrete and masonry construction where a standard straight hanger will not meet the framing angle required. With its seat fixed at a 45 deg. right skew, this hanger accommodates solid sawn lumber, truss assemblies, and engineered wood products measuring 3-9/16 in. wide by 11-1/4 in. tall, delivering consistent structural integrity in angled framing configurations. Built from 10-gauge steel with a G90 galvanized finish, it is designed to hold up in demanding job site conditions where corrosion resistance is essential.

Key Features

• Single-piece, non-welded construction - eliminates potential weak points at joints, giving installers consistent, reliable strength throughout the connector
• 45 deg. right-skewed seat - designed specifically for framing layouts where beams or trusses meet concrete or masonry at an angle, solving a geometry problem that a straight hanger cannot address
• 10-gauge steel with G90 galvanized finish - provides a sturdy, corrosion-resistant connection that holds up in tough environments common to masonry and concrete construction
• Sized for 3-9/16 in. x 11-1/4 in. members - matches solid sawn lumber, engineered wood products, and truss assemblies of those exact dimensions for a precise, secure fit

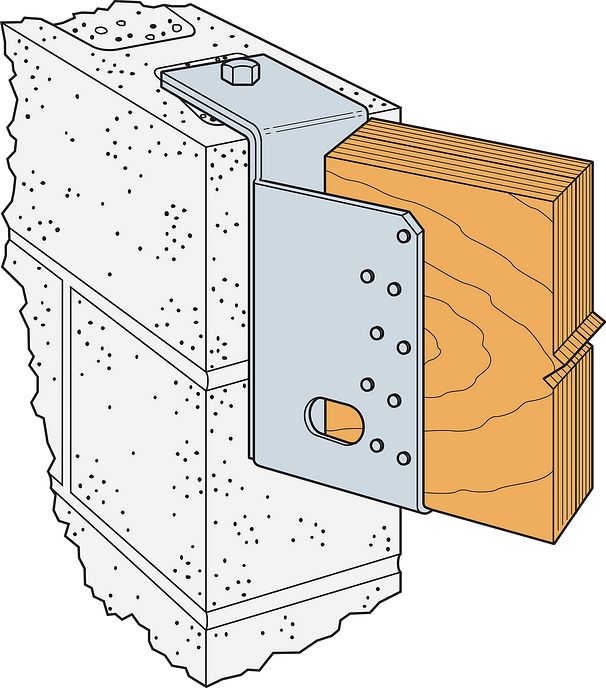

• Top-flange hanger design - allows the connector to bear load from the top flange, making it well-suited for concrete and masonry installations where a face-mount approach is not practical
• Compatible with multiple member types - supports solid sawn lumber, truss-to-masonry connections, and engineered wood product installations, making it versatile across a range of framing projects

Why This Product

• Purpose-built for angled masonry connections - the fixed 45 deg. right skew solves a specific framing challenge that standard straight hangers cannot, making it the right tool when beam or truss layout demands that precise angle off a concrete or masonry bearing surface
• One connector handles multiple member types - whether the application calls for solid sawn lumber, a truss assembly, or an engineered wood product at 3-9/16 in. x 11-1/4 in., this hanger is approved for all of them, reducing the need to source different hardware for different conditions
• Simpson engineering with American-made quality - produced by Simpson, a recognized name in structural connectors, and manufactured in the United States, providing confidence in consistent quality control and product traceability
• Galvanized finish for long-term performance - the G90 galvanized coating resists corrosion in the moisture-prone environments typical of masonry and concrete job sites, helping protect the structural connection over the life of the building

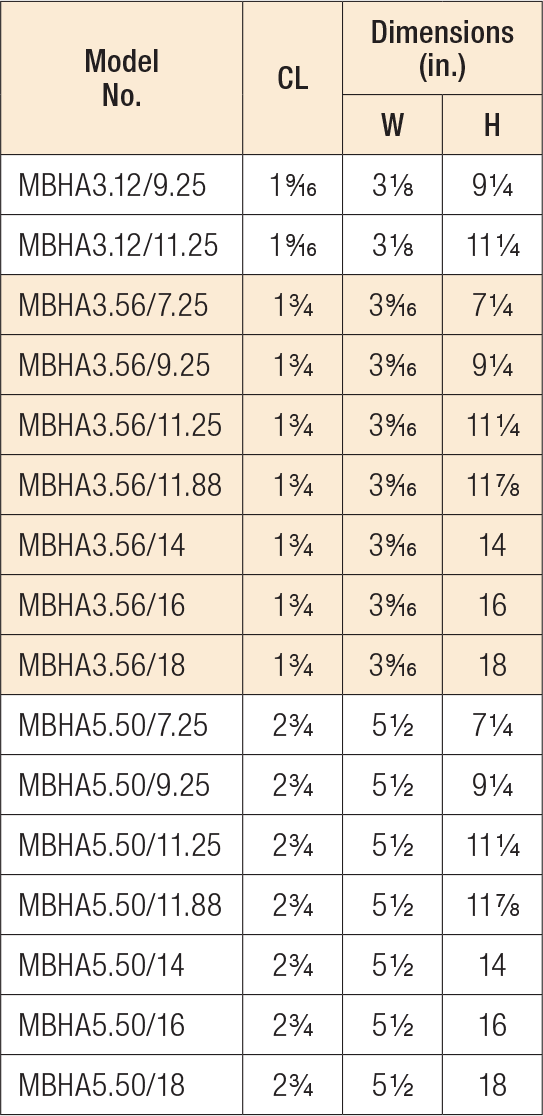

Specifications

• Specification: Detail
• Model Number: MBHAR3.56/11.25
• Description: Masonry Hanger - Skewed 45 Degrees Right
• Width (W): 3-9/16 in.
• Height (H): 11-1/4 in.
• Material Gauge: 10 gauge steel
• Finish: G90 Galvanized
• Skew Direction: Right (45 degrees)
• Country of Origin: United States

Approved Applications

• Concrete and masonry top-flange hanger installations
• Solid sawn lumber framing connections
• Truss-to-masonry or truss-to-concrete connections
• Engineered wood product installations requiring angled framing
• Applications requiring a 45-degree right skew seat orientation

Load Information

• Maximum allowable download: 3,495 lb. and uplift: 1,585 lb. for height 7-1/4 in.
• For all other models, use the table listed download and uplift of 2,390 lb.

Options

• Seat can be skewed at 45 deg. only.
• Contact us for Configurable Options and Special orders
• The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.

Frequently Asked Questions

What size lumber or beam is this hanger designed to support?

The MBHAR3.56/11.25 is sized for members measuring 3-9/16 in. wide by 11-1/4 in. tall, making it suitable for solid sawn lumber, truss assemblies, and engineered wood products of those dimensions.

Why would I choose this hanger over a standard straight masonry hanger?

This hanger features a seat skewed 45 degrees to the right, allowing it to connect framing members that meet a concrete or masonry wall at an angle. A standard straight hanger cannot accommodate angled framing configurations, making this skewed model the appropriate choice when the beam or joist is not perpendicular to the supporting wall.

What substrate is this hanger intended for, and what is it made of?

The MBHAR3.56/11.25 is a top-flange hanger designed specifically for use with concrete and masonry substrates. It is constructed from 10-gauge steel with a G90 galvanized finish, which provides robust corrosion resistance in demanding job site conditions.

Is this hanger a welded assembly or formed from a single piece of steel?

This hanger is a single-piece, non-welded construction. Forming it from one continuous piece of 10-gauge steel ensures consistent strength and eliminates potential weak points that could be introduced by welding.
