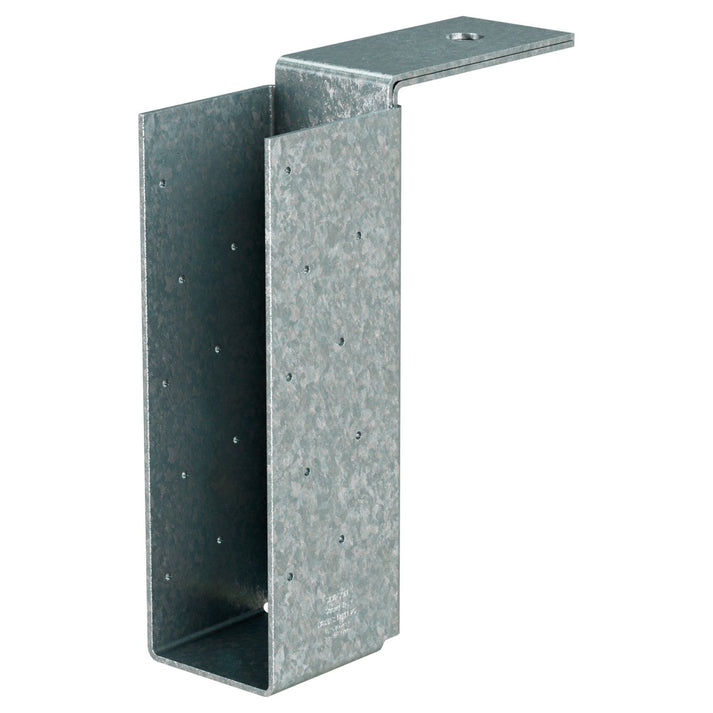

The Simpson MBHA 3-9/16 in. x 11-7/8 in. Galvanized Top-Flange Concrete and Masonry Hanger is a precision-engineered structural connector from Simpson Strong-Tie, built to anchor solid sawn lumber, truss assemblies, and engineered wood products securely to concrete and masonry supports. Its single-piece, non-welded construction delivers consistent, reliable strength across residential and commercial framing applications where a dependable connection to masonry is required.

Key Features

• Single-piece, non-welded construction - eliminates weak points found in welded connectors, giving you uniform structural integrity throughout the hanger
• 10-gauge steel fabrication - provides a rigid, heavy-duty foundation capable of handling demanding load requirements in structural framing
• Zinc Galvanized G90 coating - delivers enhanced corrosion resistance, making this hanger a dependable choice in moisture-prone or exterior construction environments
• Compatible with solid sawn lumber, truss assemblies, and engineered wood products - gives contractors and builders flexibility across a wide range of framing configurations without needing multiple connector types
• Available skewed at 45 deg. only; order MBHAR for skew right and MBHAL for skew left - allows angled installations where standard straight hangers cannot accommodate the framing geometry
• Top-flange design for concrete and masonry applications - seats directly against masonry or concrete surfaces for a secure, stable bearing point that supports structural loads effectively

Why This Product

• Engineered and tested by Simpson Strong-Tie - this connector is manufactured to meet rigorous quality standards that engineers and contractors rely on, so you can frame with confidence knowing the connection is backed by proven design and testing
• Versatile wood-to-masonry connection in a single component - because the MBHA accommodates solid sawn lumber, truss, and engineered wood products, one connector covers multiple framing scenarios, reducing the need to source different hardware for different applications
• Skewed configuration availability adds installation flexibility - the option to order a 45 deg. skew right or skew left version means this hanger can be adapted to angled framing conditions that a standard straight hanger cannot serve
• G90 galvanized finish for long-term durability - the zinc galvanized coating goes beyond basic rust protection, making this masonry hanger a sound investment for projects where corrosion resistance over the life of the structure matters

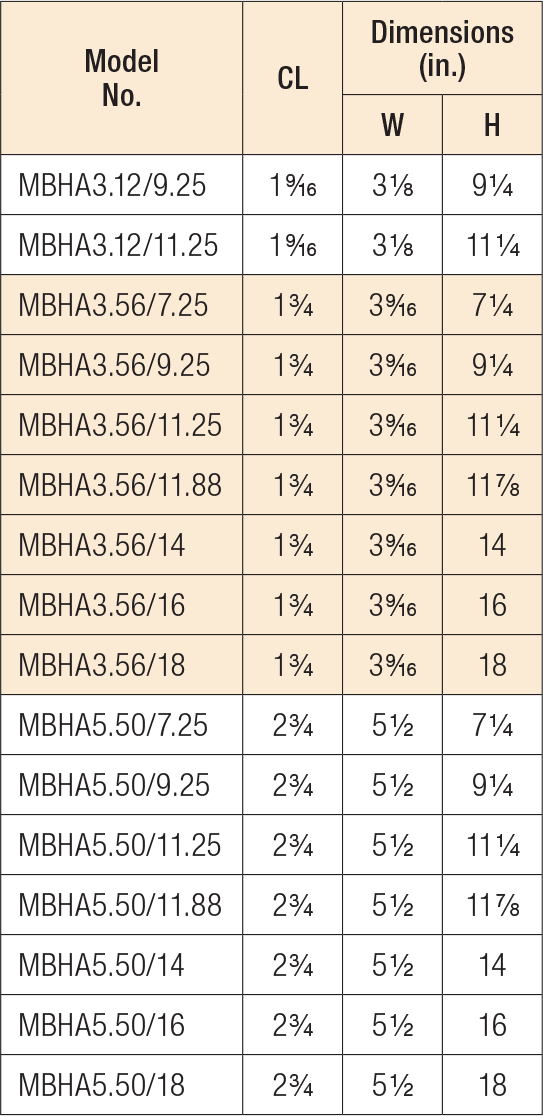

Specifications

• MPN: MBHA3.56/11.88

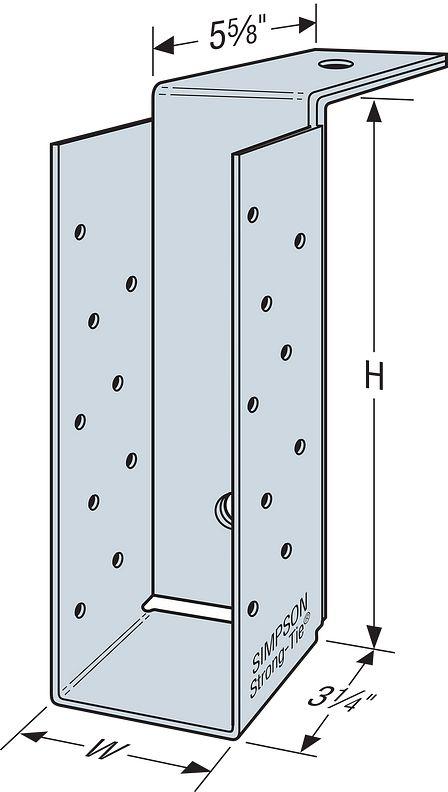

• Member Size: 3-9/16 in. x 11-7/8 in.
• Seat Width: 3-9/16 in.
• Height to Bottom of Flange: 11-7/8 in.
• Material Gauge: 10-gauge steel
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States

Options

• Seat can be skewed at 45 deg. only.
• Contact us for Configurable Options and Special orders
• The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
