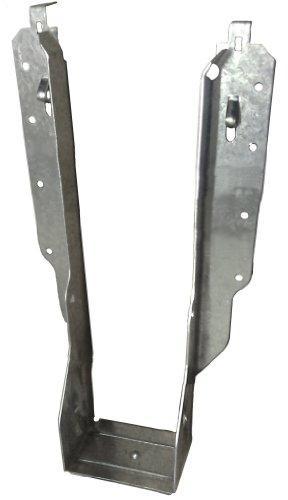

The Simpson IUS2.56/9.5 Face-Mount Joist Hanger is a hybrid hanger engineered by Simpson to combine the advantages of both face-mount and top-mount designs, delivering a strong, reliable connection for engineered wood framing applications. Fully compatible with shallow-flange I-joists, this hanger supports an actual joist size of 2-1/2 in. to 2-9/16 in. x 9-1/2 in. and is built for framers who need a secure, accurate seat without sacrificing installation speed. Whether you are working on floor systems, roof structures, or other engineered lumber assemblies, this I-joist hanger is designed to perform where precision and durability matter most.

Key Features

• Strong-Grip seat with self-jigging locator tabs - allows the I-joist to snap securely into position without joist nails through the seat, so installation stays fast, accurate, and consistent across the entire framing job.
• Easy-to-reach face nail positions - speeds up the fastening process by keeping nail locations accessible, reducing awkward tool angles and helping crews work more efficiently.
• Hybrid face-mount and top-mount design - combines the structural advantages of both hanger styles in a single piece, giving you a versatile connection solution that works seamlessly with shallow-flange I-joists.
• Formed from 18-gauge steel - provides the structural integrity needed for demanding load-bearing applications in residential and light commercial framing.
• Zinc Galvanized G90 coating - delivers extra corrosion resistance, helping the hanger hold up in environments where moisture exposure is a concern over the life of the structure.
• Simple two-step installation process - fasten the hanger to the header, then position the I-joist into the hanger and snap into place, reducing installation steps and minimizing the chance of misalignment on the job site.

Why This Product

• Built for engineered wood framing - the IUS2.56/9.5 is specifically designed for shallow-flange I-joists and engineered lumber, making it a purpose-built choice for modern construction rather than a general-purpose workaround.
• Faster installs without sacrificing connection strength - the Strong-Grip seat and self-jigging locator tabs work together to self-position the hanger and secure the I-joist with a snap fit, cutting down on installation time while maintaining a solid, consistent connection.
• Corrosion resistance built in from the start - the G90 zinc galvanized finish means the hanger arrives ready for use in moisture-prone environments, with no additional treatment needed before installation.
• Trusted Simpson engineering in a domestic-made product - manufactured in the United States and backed by Simpson's reputation for structural connector innovation, this hanger meets the expectations of contractors and builders who rely on consistent quality and performance on every project.

Specifications

• Model Number: IUS2.56/9.5
• Member Size: 2-1/2 in. to 2-9/16 in. x 9-1/2 in.
• Seat Width (W): 2-5/8 in.
• Height (H): 9-1/2 in.
• Gauge: 18
• Coating/Finish: Zinc Galvanized, G90
• Install With: 10d common nails (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of joists is the IUS2.56/9.5 compatible with?

The IUS2.56/9.5 is fully compatible with shallow-flange I-joists and is designed to accommodate an actual joist size of 2-1/2 in. to 2-9/16 in. x 9-1/2 in., making it well-suited for engineered wood applications.

What fasteners are recommended for installing this joist hanger?

This hanger is designed to be installed with 10d common nails. The easy-to-reach face nail positions help speed up the fastening process during installation.

What is the Strong-Grip seat and how does it benefit installation?

The Strong-Grip seat is a feature that allows the I-joist to snap securely into place without requiring joist nails through the seat, resulting in a faster and more efficient installation process. Combined with the self-jigging locator tabs, the hanger self-positions for accuracy and speed.

What corrosion protection does the IUS2.56/9.5 offer?

The IUS2.56/9.5 features a Zinc Galvanized, G90 coating, which provides extra corrosion resistance suitable for demanding construction environments. The hanger body is formed from 18-gauge steel for structural integrity.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
