Product Description

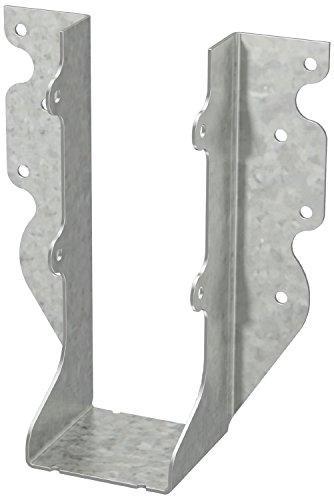

The Simpson U26R Galvanized Face-Mount Joist Hanger for 2x6 Rough Lumber is a 16-gauge steel connector built for dependable joist-to-header connections in wood-framed construction. Engineered and tested by Simpson Strong-Tie - the choice of engineers and contractors - this U hanger delivers the strength and flexibility demanded by both residential framing projects and code-compliant structural builds. Its G90 zinc galvanized finish provides robust corrosion resistance, making it a reliable choice wherever lasting performance matters.
Key Features
- Speed prongs locate the hanger on the header - positioning is fast and accurate during installation, reducing the chance of misalignment before nailing.
- Flexible, face-mounted joist-to-header installation - accommodates a range of framing configurations, giving contractors and builders greater versatility on the job.
- Designed for 2x6 rough lumber, also compatible with 2x8 rough members - supports common rough-sawn framing dimensions without requiring additional hardware or modifications.
- Formed from 16-gauge steel - provides a sturdy, load-bearing connection that holds up under the demands of structural framing applications.
- G90 zinc galvanized coating - delivers extra corrosion resistance to extend the service life of the connection, even in challenging environments.
Why This Product
- Trusted engineering behind every connection - Simpson Strong-Tie connectors are engineered, tested, and manufactured to the highest quality standards, giving builders confidence whether working on a home project or a code-compliant structure.
- Speeds up the framing process - the built-in speed prongs hold the hanger in place on the header while you nail, cutting down on repositioning and keeping your workflow moving.
- Built to resist corrosion over the long term - the G90 galvanized finish goes beyond basic protection, helping the hanger maintain structural integrity in demanding or moisture-prone conditions.
- Made in the United States to consistent quality standards - domestic production supports reliable dimensional accuracy and material consistency across every piece.
Specifications
- Model Number: U26R
- Gauge: 16
- Width (W): 2 in.
- Height (H): 5-5/8 in.
- Base (B): 2 in.
- Coating / Finish: Zinc Galvanized, G90
- Member Size: 2x6 rough, 2x8 rough
- Install With: 10d or 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Frequently Asked Questions
- What lumber size is the U26R designed to support?
- The U26R is designed for use with 2x6 rough lumber as the nominal joist size. It is also compatible with 2x8 rough member sizes.
- What fasteners should be used to install the U26R hanger?
- Install the U26R using 10d or 16d common nails in the header and 10d x 1-1/2 in. nails in the joist for a secure, code-compliant connection.
- What coating does the U26R have, and why does it matter?
- The U26R features a G90 zinc galvanized coating, which provides extra corrosion resistance. This finish helps protect the hanger in demanding environments and extends the service life of the connection.
- What is the purpose of the speed prongs on the U26R?
- The speed prongs are designed to locate and hold the hanger in position on the header during installation, allowing for faster, more accurate placement before nailing.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Note: Product dimensions and/or nail or screw holes may differ from picture. Please see item description for specifications.
