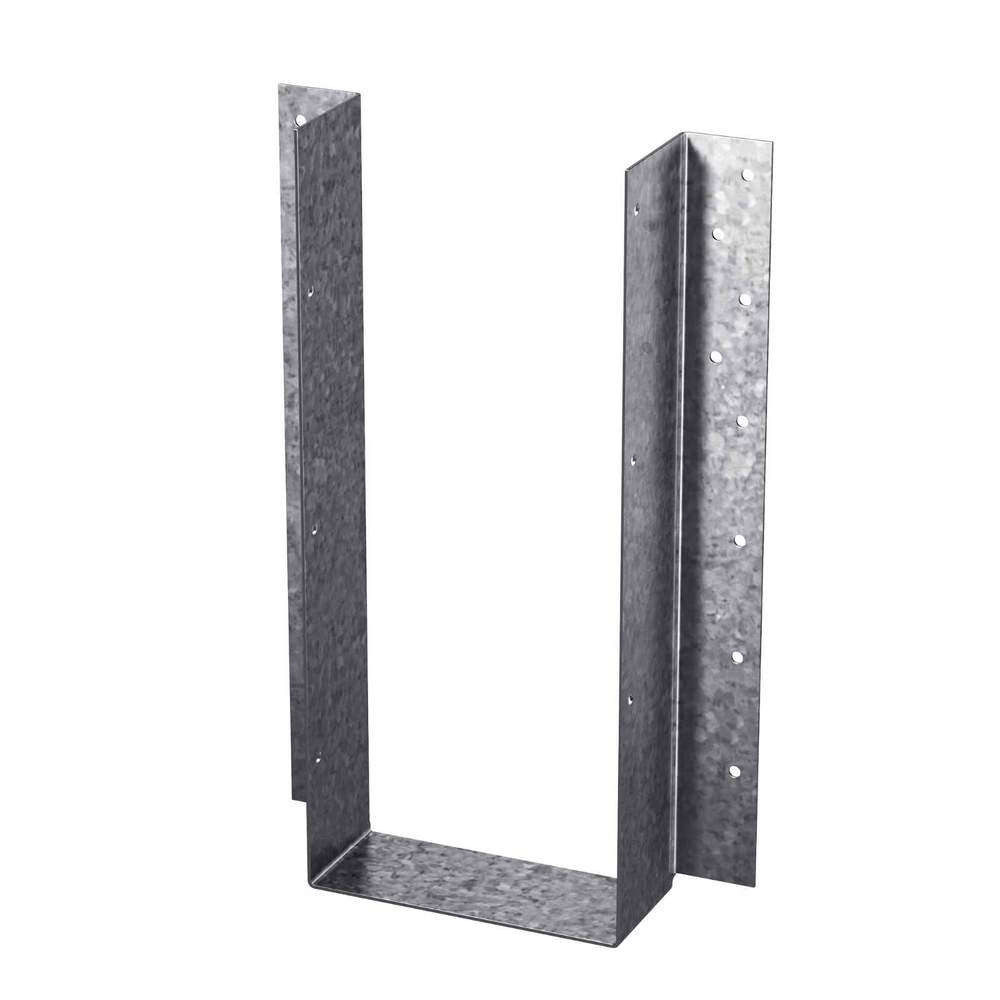

The Simpson U3512-2 U Galvanized Face-Mount Joist Hanger from Simpson is a heavy-duty structural connector designed for reliable joist-to-header connections in wood-framed construction. Built for double engineered wood members, this face-mount hanger accommodates an actual joist size of 4-5/8 in. x 11-1/4 in. to 11-7/8 in., making it a precise fit for engineered lumber applications where accuracy and load-carrying dependability are non-negotiable. Engineered and tested to meet the quality standards that contractors and engineers trust, it brings together durable materials, a corrosion-resistant finish, and a design that speeds up installation without sacrificing structural integrity.

Key Features

• Speed prongs locate the hanger on the header - eliminates guesswork during positioning, saving time and reducing the chance of misalignment on the job site
• Flexible face-mounted joist-to-header installation - accommodates a range of field conditions, giving installers more versatility when securing joists to headers
• Supports actual joist sizes from 4-5/8 in. x 11-1/4 in. to 11-7/8 in. - sized specifically for double engineered wood members, so the fit is secure and load transfer is consistent
• Formed from 16-gauge steel - provides the structural rigidity needed for demanding framing applications in residential and commercial construction
• G90 zinc galvanized coating - delivers extra corrosion resistance that extends the service life of the connector, even in moisture-prone environments

Why This Product

• Engineered for engineered wood - the U3512-2 is purpose-built for double engineered lumber members, giving builders a connector that matches the precision these materials require rather than relying on a generic fit
• Faster positioning, fewer mistakes - the integrated speed prongs anchor the hanger to the header before fastening begins, so installation stays accurate and efficient even under demanding job site conditions
• Built-in corrosion protection - the G90 zinc galvanized finish goes beyond basic coating, offering extra resistance to moisture and oxidation that helps the connection maintain its strength over the long term
• Trusted construction-grade quality - Simpson connectors are engineered, tested, and manufactured to meet the standards that professional contractors and structural engineers specify, making this hanger a dependable choice for code-compliant framing projects

Specifications

• Model Number: U3512-2
• Gauge: 16
• Member Size: 4-5/8 in. x 11-1/4 in. to 11-7/8 in.
• Width (W): 4-3/4 in.
• Height (H): 11-1/4 in.
• Base (B): 2 in.
• Coating/Finish: Zinc Galvanized, G90
• Installation Fasteners: Install with 16d common nails in the header and 10d common nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders
• Refer to technical bulletin for ease of ordering a Custom U hanger

Load Tables / Values / Installation

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
• Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
• Face-Mount Hangers - I-Joists, Glulam and SCL Tables

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
• Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - I-Joists, Glulam and SCL Tables

Frequently Asked Questions

What type of engineered wood is this hanger designed to support?

The U3512-2 is designed for double 2-5/16 in. x 11-7/8 in. engineered wood members, with an actual supported joist size of 4-5/8 in. x 11-1/4 in. to 11-7/8 in.

What fasteners should be used to install the U3512-2?

Install with 16d common nails in the header and 10d common nails in the joist for a properly secured connection.

What is the purpose of the speed prongs on this hanger?

The speed prongs are designed to locate the hanger precisely on the header during installation, making positioning faster and more accurate before nailing.

What corrosion protection does the U3512-2 offer?

This hanger features a G90 zinc galvanized coating, providing extra corrosion resistance that makes it suitable for use in demanding construction environments.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
