Product Description
The Simpson ETS7513 13-in. Steel Epoxy-Adhesive Screen Tube for 3/4-in. Rod is a carbon steel anchor sleeve engineered specifically for hollow base material applications where adhesive containment is critical. Designed by Simpson Strong-Tie to work exclusively with ET-3G epoxy adhesive, this screen tube precisely controls the amount of adhesive that passes through its 60-mesh carbon steel construction - ensuring thorough coating and bonding of the threaded rod to both the screen tube and the surrounding base material. By containing the adhesive around the anchor and preventing it from migrating into voids, it delivers consistent, reliable results on hollow substrate anchoring jobs.
Key Features
- Designed exclusively for ET-3G epoxy adhesive - ensures precise adhesive flow control through the mesh, so the rod receives thorough, uniform coating and bonding every time
- 60-mesh carbon steel construction - the fine mesh regulates exactly how much adhesive passes through, preventing waste and ensuring full encapsulation of the anchor rod
- Sized for 3/4-in. rod diameter in a 1-in. hole - matches common anchor rod and drill bit sizing so there is no guesswork on fit during installation
- 13-in. length with a 31/32-in. outside diameter - provides adequate embedment depth for hollow base material applications while fitting cleanly within a standard 1-in. bored hole
- Caution - screen tubes are adhesive-specific - using only the compatible ET-3G formulation protects bond integrity and prevents performance compromise caused by mismatched adhesive chemistry
Why This Product
- Purpose-built for hollow base materials - unlike solid-substrate anchoring methods, this screen tube physically contains the epoxy adhesive around the anchor, stopping it from running into voids and ensuring a structurally sound bond where it matters most
- Engineered adhesive compatibility - Simpson Strong-Tie designed this tube specifically around ET-3G epoxy formulations, meaning the 60-mesh opening size is calibrated to that adhesive's viscosity for predictable, repeatable results rather than trial-and-error application
- Precise dimensions eliminate fit uncertainty - with a clearly defined rod diameter, outside diameter, and tube length, contractors and installers can plan the correct drill bit size and embedment depth without field improvisation
- Part of a complete Simpson Strong-Tie dispensing system - this screen tube is designed to integrate with Simpson Strong-Tie manual and pneumatic dispensing tools and accessories, supporting a streamlined, efficient anchoring workflow on the job site
Specifications
- MPN: ETS7513
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Diameter: 31/32 in.
- Length: 13 in.
- Bolt/Rod Diameter: 3/4 in.
- Hole Size: 1 in.
- Mesh: 60 mesh
- Compatible Adhesive: Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 25
Frequently Asked Questions
- What adhesive is this screen tube compatible with?
- This screen tube is specifically designed for use with Simpson Strong-Tie ET-3G epoxy adhesive only. Screen tubes are designed for a specific adhesive type, and using an incompatible adhesive may compromise performance. Do not use this screen tube with any other adhesive formulation.
- What rod diameter does the ETS7513 screen tube accommodate?
- The Simpson ETS7513 is designed for use with a 3/4-in. rod diameter. The outside diameter of the screen tube itself is 31/32 in., and it is installed into a 1-in. hole.

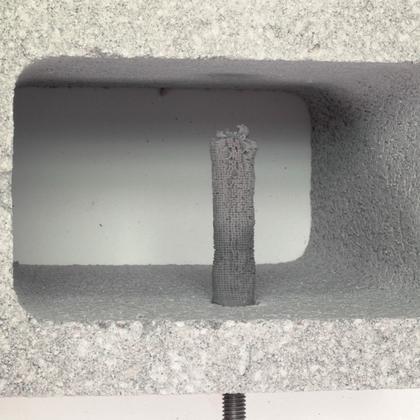

- What is the purpose of using a screen tube in hollow base material applications?
- In hollow base material applications, screen tubes are used to contain the adhesive around the anchor and prevent it from running into voids within the base material. The 60-mesh carbon steel construction precisely controls how much adhesive passes through, ensuring thorough coating and bonding of the rod to the screen tube and base material.
- What are the dimensions of the ETS7513 screen tube?
- The ETS7513 screen tube is 13 in. long with an outside diameter of 31/32 in. It is designed for use in a 1-in. hole and accommodates a 3/4-in. rod diameter.
