Product Description

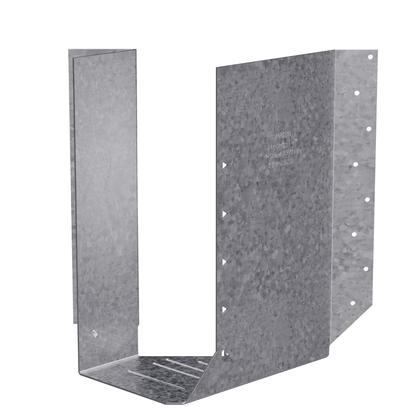

The Simpson JOIST HANGER SKEWED LEFT is a heavy-duty, 45 deg. left-skewed hanger engineered to support large joist members or double I-joists in wood framing applications. Built on a heavy U-shaped design, this connector fully encapsulates the top flange of the joist for a secure, reliable connection wherever angled framing is required.
Key Features
- 45 deg. left skew design - delivers precise angled framing connections so structural members align correctly in non-perpendicular layouts without field modification
- Heavy U-shaped hanger encapsulates the top flange of the joist - eliminates the need for web stiffeners during standard installation, saving time and reducing material costs on the job
- Supports large joist members or double I-joists - provides the load capacity required for demanding structural framing scenarios, including engineered lumber applications
- 14-gauge steel construction - delivers heavy-duty structural performance suitable for load-bearing connections in wood construction
- Zinc Galvanized, G90 coating - provides corrosion resistance to help maintain connector integrity in challenging construction environments
- Made in the United States - manufactured to consistent quality standards under domestic production oversight
Why This Product
- Engineered for angled framing challenges - the 45 deg. left skew makes this hanger the purpose-built solution for connecting joist members that meet a header or beam at an angle, reducing the guesswork and rework common with field-fabricated alternatives
- Faster installation without added hardware - because the U-shaped design encapsulates the joist top flange, web stiffeners are not required for standard installation, streamlining the process on complex framing projects
- Versatile compatibility with large and engineered lumber - supporting large solid sawn joist members and double I-joists makes this hanger adaptable across a wide range of residential and light commercial structural framing applications
- Trusted Simpson quality with domestic production - backed by the Simpson name and made in the United States, this connector offers confidence in dimensional accuracy and material consistency for structural connections
Specifications
- Model No.: HSUL4.75/9
- Skew: Left
- Gauge: 14
- W (in.): 4 3/4
- H (in.): 8 15/16
- B (in.): 2 3/4
- Coating/Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/8 in.
- Obtuse Flange Length: 1-7/16 in.
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What is the difference between the HSUR and HSUL hangers?
- The HSUR and HSUL hangers are identical in design except for the direction of their 45-degree skew. The HSUR is skewed 45 degrees to the right, while the HSUL is skewed 45 degrees to the left. This model is the HSUL (left-skewed) version.
- Are web stiffeners required when installing the HSUL4.75/9?
- No. Because the heavy U-shaped hanger encapsulates the top flange of the joist, web stiffeners are not required for standard installation.
- What type of joist members is the HSUL4.75/9 designed to support?
- The HSUL4.75/9 is designed to support large joist members or double I-joists in wood construction applications.
- What coating does the HSUL4.75/9 have, and what does it protect against?
- The HSUL4.75/9 features a Zinc Galvanized, G90 coating, which provides corrosion resistance to help maintain the integrity of the connector in demanding construction environments.
Related Products
- - Heavy Skewed U-Shaped Hanger with Concealed Flanges for end-of-wall installation
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
