Product Description

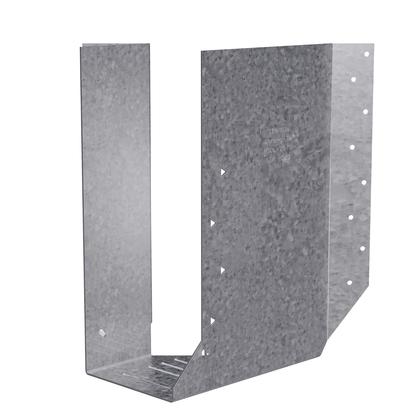

The Simpson JOIST HANGER SKEWED LEFT is a heavy-duty hanger engineered for angled joist connections in wood framing applications where a 45 deg. left skew is required. Built by Simpson to support large joist members or double I-joists, this hanger's heavy U-shaped design fully encapsulates the top flange of the joist, delivering a secure, reliable connection at skewed angles without the added complexity of extra hardware in standard installations.
Key Features
- 45 deg. skewed left (HSUL) configuration - allows precise angled joist-to-header connections in wood framing layouts where a standard straight hanger simply will not fit
- Heavy U-shaped design that encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installations, saving time and reducing material costs on the job
- Supports large joist members or double I-joists - gives builders and contractors the flexibility to handle heavier structural members in a single hanger solution
- 14-gauge steel construction - delivers robust load-bearing performance suited to demanding wood construction applications
- Zinc Galvanized G90 coating - provides corrosion resistance to help maintain structural integrity in exposed or moisture-prone environments
- Made in the United States - confirms consistent quality standards backed by Simpson's domestic manufacturing
Why This Product
- Purpose-built for skewed framing layouts - the 45 deg. left skew design solves a specific structural challenge that straight hangers cannot address, making it the right tool for angled joist connections in wood construction
- Simpler installation without sacrificing strength - because the U-shaped hanger encapsulates the joist's top flange, web stiffeners are not required for standard installations, reducing labor steps while maintaining heavy-duty performance
- Engineered for large and composite joist members - compatibility with large solid-sawn joist members and double I-joists means this hanger covers a wide range of structural scenarios without needing a different product
- A concealed-flange variant is available for end-of-wall installations - if your application calls for the acute flange to be turned in, an HSULC version exists for solid sawn sizes, giving this product line added versatility for tighter framing conditions
Specifications
- Model Number: HSUL4.75/11
- Skew Direction: Left
- Gauge: 14
- W (Width): 4-3/4 in.
- H (Height): 10-15/16 in.
- B (Bearing): 2-3/4 in.
- Coating/Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/8 in.
- Obtuse Flange Length: 1-7/16 in.
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What is the difference between the HSUR and HSUL hangers?
- The HSUR and HSUL hangers are identical in design and dimensions except for the direction of their 45-degree skew. The HSUR is skewed 45 degrees to the right, while the HSUL is skewed 45 degrees to the left.
- Are web stiffeners required when installing the HSUL4.75/11?
- No. Because the heavy U-shaped hanger encapsulates the top flange of the joist, web stiffeners are not required for standard installation.
- What type of joist members can the HSUL4.75/11 support?
- The HSUL4.75/11 is designed to support large joist members or double I-joists in wood construction applications.
- Is a concealed-flange version of this hanger available for end-of-wall installation?
- Yes. A version with the A2 (acute) flange turned in to accommodate end-of-wall installation is available for solid sawn sizes only, designated as the HSURC or HSULC series.
Related Products
- HSURC or HSULC
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
