Product Description

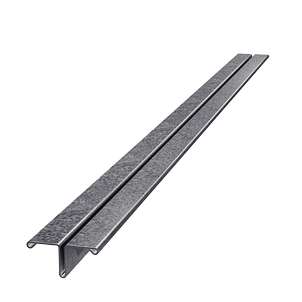

Simpson TWB12 T Wall Bracing with Rolled Edges - 11 ft. 4 in., 22-Gauge Steel (15-Qty)

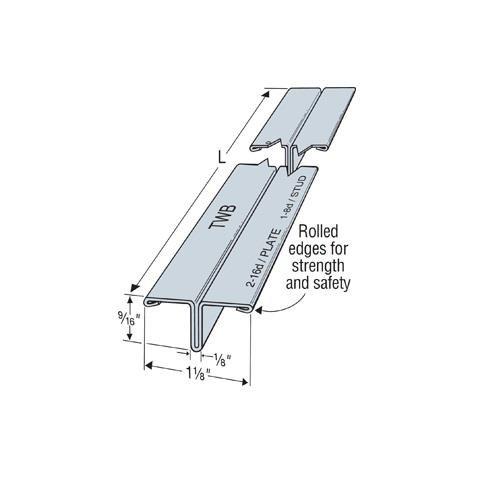

The Simpson Strong-Tie TWB12 T Wall Bracing is a 22-gauge galvannealed steel strap engineered to resist racking forces during construction. Measuring 11 ft. 4 in. in length and 1-1/8 in. in width, this T-shaped wall bracing features two rolled edges that deliver extra strength and on-site safety for framing crews. Simpson Strong-Tie connectors are engineered and tested to perform and are manufactured to the highest quality standards - making projects easier to build while making them stronger and safer. This listing includes a quantity of 15 pieces, ideal for framing multiple wall bays in a single order. Please note: the TWB is not designed to replace structural panel shearwall load-carrying components and is limited to interior-dry use only.
Key Features
- Resists Racking: Prevents cosmetic damage, performance problems, and structural failure by resisting racking during construction
- Rolled Edges: Two rolled edges provide extra support and reduce sharp-edge hazards during handling and installation
- T-Shaped Profile: Unique T-shape maximizes bracing performance across the wall plane
- 22-Gauge Steel Construction: Heavy-duty 22-gauge steel delivers consistent load resistance across each strap
- Galvannealed Finish: Factory-applied galvannealed coating for a durable, paint-ready surface
- Stud Compatibility: Designed for use with 16 in. o.c. studs and a minimum of nominal 2x4 studs
- Interior-Dry Use: Galvannealed wall bracing straps are limited to interior-dry applications
- Quantity Pack: Sold in a pack of 15 straps for efficient framing projects
- Made in the USA: Manufactured in the United States to Simpson Strong-Tie's highest quality standards
Specifications
- Model Number (MPN): TWB12
- Length: 11 ft. 4 in.
- Width: 1-1/8 in.
- Gauge: 22
- Coating / Finish: Galvannealed
- Material: Steel
- Profile: T-shaped with two rolled edges
- Stud Spacing: 16 in. o.c.
- Minimum Stud Size: Nominal 2x4
- Member Size: 8 ft. @ 45 deg. or 9 ft. @ 53 deg.
- Use Restriction: Interior-dry use only
- Package Quantity: 15
- Country of Origin: United States
Approved Applications
- Resisting racking forces in wood-framed wall assemblies during construction
- Use with 16 in. o.c. framing and nominal 2x4 or larger studs
- Interior-dry wall framing applications only
- Not approved as a replacement for structural panel shearwall load-carrying components
What's Included
- 15 x Simpson Strong-Tie TWB12 T Wall Bracing straps (11 ft. 4 in. each)
Note: Fasteners are not included. See installation requirements below.
Installation
Install the TWB12 with the following fasteners:
- (2) 0.162 in. x 3-1/2 in. nails to the plate
- (1) 0.131 in. x 2-1/2 in. nail to the stud
Use with a minimum
Frequently Asked Questions
- What stud size and spacing is the TWB12 designed to work with?
- The TWB12 is designed for use with studs spaced 16 in. o.c. and requires a minimum of nominal 2x4 studs for proper installation.
- What fasteners are required to install the TWB12?
- Installation requires (2) 0.162 in. x 3-1/2 in. nails to the plate and (1) 0.131 in. x 2-1/2 in. nail to the stud.
- Can the TWB12 be used outdoors or in wet conditions?
- No. The TWB12 features a galvannealed finish and is limited to interior-dry use only. It is not suitable for exterior or wet-condition applications.
- Is the TWB12 a substitute for structural panel shearwall components?
- No. The TWB12 is designed to resist racking during construction and is not designed to replace structural panel shearwall load-carrying components.
