Product Description

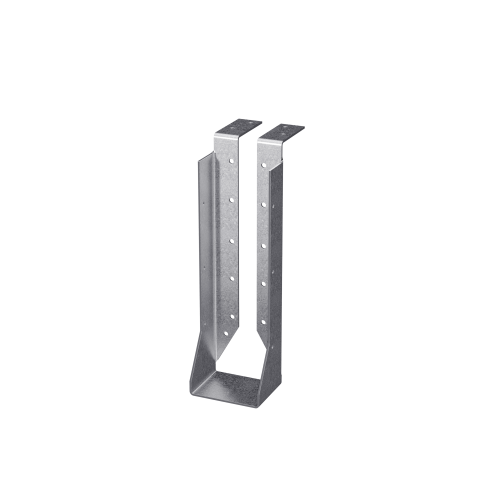

The Simpson HUCTF Top-Flange Concealed-Flange Joist Hanger for Double 2x12 is a heavy-duty hybrid connector from Simpson that brings together the structural benefits of both face-mount and top-mount hanger designs in a single unit. Two concealed top flanges keep the connection low-profile and out of sight, making this hanger particularly well-suited for end-of-wall and corner framing situations where an exposed flange is not practical. Face-nailing allows the hanger to be securely attached to the supporting member for dependable load transfer, while 12-gauge steel construction and a G90 zinc galvanized coating deliver the durability expected in demanding structural framing environments.
Key Features
- Hybrid face-mount and top-mount design - combines the holding power of face-nailing with the clean profile of a top-flange hanger, giving installers structural performance without sacrificing a finished appearance
- Two concealed top flanges - tuck behind the framing member for corner and end-of-wall installations where traditional exposed flanges would interfere with the surrounding structure
- Face-nailing attachment method - allows the hanger to be firmly anchored to the supporting member, providing a secure and rigid connection for consistent load transfer
- Engineered for double 2x12 nominal joist members - sized and load-rated specifically for this member configuration, eliminating guesswork during structural framing
- 12-gauge steel construction - provides the thickness and rigidity required for heavy-duty joist support in structural applications
- G90 zinc galvanized coating - delivers corrosion resistance suited to demanding construction environments, helping protect the connection over the long term
- Slope capability up to 45 deg. - accommodates sloped framing conditions without requiring a separate hanger, adding installation flexibility for angled roof or deck framing
- Tested, load rated, and code compliant - the HUCTF series meets recognized testing and compliance standards, supporting use on jobs where code documentation is required
Why This Product
- One hanger, two installation advantages - the hybrid construction merges face-mount strength with top-mount concealment, so contractors handling end-of-wall or corner joist connections get both structural integrity and a cleaner finished result without sourcing two separate connectors
- Built for the job site, not just the catalog - 12-gauge steel paired with a G90 galvanized finish means this hanger is sized and protected for real-world structural framing conditions where durability and corrosion resistance are non-negotiable
- Slope flexibility without compromise - acceptance of slopes up to 45 deg. makes this concealed-flange hanger a practical choice for angled framing scenarios, expanding its usefulness beyond standard flat installations
- Confidence-backed compliance - HUCTF-series hangers are tested and load rated, giving builders and inspectors the documented performance data needed for code-compliant double 2x12 joist connections
Specifications
- Manufacturer Part Number (MPN): HUC212-2TF
- Brand: Simpson Strong-Tie
- Series: HUCTF
- Nominal Joist / Member Size: Double 2x12
- Steel Gauge: 12-Gauge
- Width - W: 3-1/8 in.
- Height - H: 11 in.
- Seat Width - B: 2-1/2 in.
- Top Flange - TF: 2-1/2 in.
- Coating / Finish: Zinc Galvanized, G90
- Maximum Slope: 45 deg. (no skew options available)
Approved Applications
- End-of-wall joist hanger installations requiring concealed top flanges
- Corner framing connections where exposed flanges are not practical
- Structural framing applications using double 2x12 joist members
- Sloped framing connections up to a maximum of 45
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
What joist size is the HUC212-2TF designed for?
The HUC212-2TF is designed for a nominal double 2x12 joist size. If you require a rough beam size, those are available by special order.
What fasteners are required to install this hanger?
Installation requires 16 nails measuring 0.162 in. x 3-1/2 in. in the header and 6 nails measuring 0.148 in. x 3 in. in the joist.
Can this hanger be installed at an angle, and does it support skewed installations?
The HUC212-2TF can be sloped up to a maximum of 45 deg.. However, no skew options are available for this hanger.
What material and coating does the HUC212-2TF use, and is it suitable for corrosive environments?
The HUC212-2TF is made from 12-gauge steel and features a G90 zinc galvanized coating, which provides corrosion resistance for use in demanding construction environments.
