Product Description

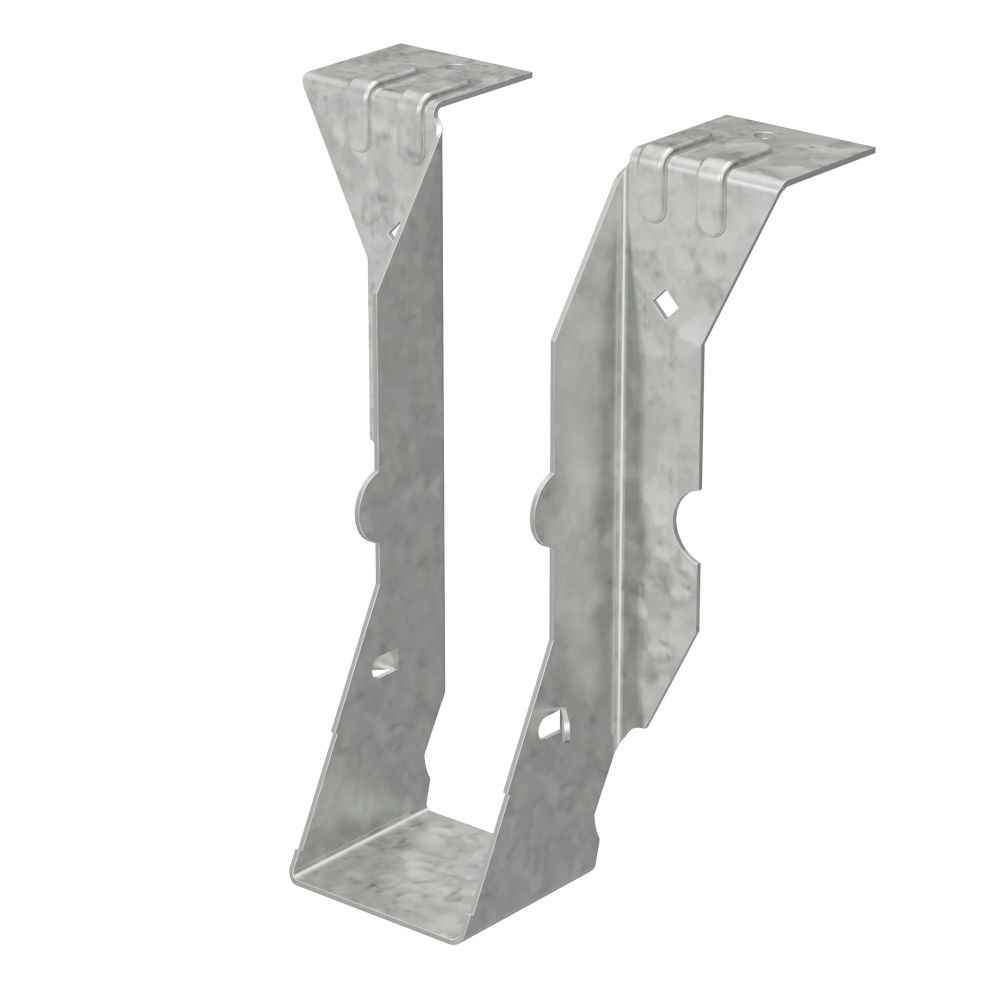

The Simpson PF26Z 2x6 18-Gauge Post Frame Hanger from Simpson is a top-flange joist hanger engineered for common light-frame and post frame construction applications. Built with a patented double-shear nailing design, this economical connector distributes the load through two points on each joist, delivering greater strength with fewer nails. The ZMAX galvanized finish provides extra corrosion resistance, making this hanger a reliable choice for exterior environments and applications involving treated wood.
Key Features
- Patented double-shear nailing design - distributes load through two points on each joist, so you get greater structural strength while using fewer nails and reducing installation time
- Self-jigging design for automatic vertical alignment - positions the hanger correctly without extra measuring, speeding up installation and reducing the chance of alignment errors
- Diamond holes to temporarily fasten the connector - let you hold the hanger in place during layout and adjustment before committing to final fastening, making single-person installation more manageable
- ZMAX galvanization - offers extra corrosion resistance compared to standard coatings, keeping the connector protected in exterior settings and where treated lumber is used
- 18-gauge steel construction - provides a sturdy, consistent build suited to the load demands of standard light-frame joist hanger applications
- Cannot be modified - ensures the hanger performs exactly as engineered, protecting structural integrity and load performance on every installation
Why This Product
- Faster, more accurate installation - the self-jigging design and diamond holes work together to align and temporarily secure the hanger automatically, cutting down setup time on the job site
- More strength, fewer fasteners - the patented double-shear nailing design achieves greater load distribution through two points on each joist, so you use fewer nails without sacrificing performance
- Built for tough exterior conditions - ZMAX galvanization delivers extra corrosion resistance specifically suited to outdoor framing and treated-wood applications where standard coatings fall short
- An economical solution from a trusted framing hardware brand - the PF26Z gives post frame and light-frame builders a cost-effective, purpose-built connector designed for 2x6 members without the need for field modification
Specifications
- Model Number: PF26Z
- Brand: Simpson Strong-Tie
- Nominal Joist Size: 2x6
- Gauge: 18
- Seat Width: 1-9/16 in.
- Coating/Finish: ZMAX
- Install With: (4) 0.148-in. x 3-in. nails (sold separately)
- Height: 5-3/8 in.
- Seat Depth: 1-1/2 in.
- Top Flange: 1-1/16 in.
- Country of Origin: United States
Note: Product dimensions may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size joist is the PF26Z designed to support?
The PF26Z is designed for use with nominal 2x6 members, with a seat width of 1-9/16 inches to accommodate that member size.
What fasteners are required to install the PF26Z?
Installation requires (4) 0.148-in. x 3-in. nails. These purlin nails must be driven at an angle through the purlin into the header, and can be combined with top nails to achieve table loads.
Why does the PF26Z use ZMAX galvanization instead of standard galvanization?
ZMAX galvanization provides extra corrosion resistance compared to standard coatings, making the PF26Z suitable for exterior environments and applications involving treated wood where greater protection against corrosion is required.
Can the PF26Z be field-modified to fit a different application?
No. The PF26Z cannot be modified. It is engineered specifically for 2x6 members and must be used as manufactured to maintain its structural integrity and load performance.
