Product Description

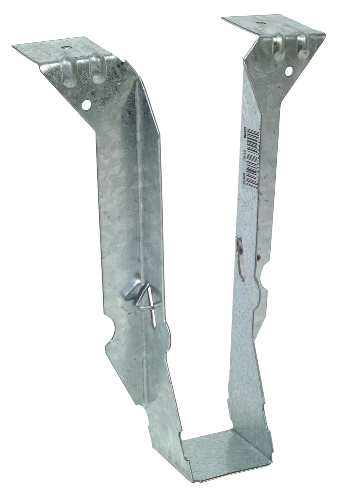

The Simpson Strong-Tie JB28 JB Series Top-Flange Joist Hanger for 2x8 Lumber is a cost-effective, G90 galvanized steel connector engineered to provide reliable support underneath joists, rafters, or beams for a strong, durable connection in solid sawn lumber applications. Featuring min/max joist nailing options, the JB28 adapts to both moderate and higher load conditions, making it a versatile solution for a wide range of structural framing projects.
Key Features
- Min. nailing featuring positive-angle nailing targets moderate load conditions, whereas max. nailing generates capacities for higher loads
- The unique two-level embossment provides added stiffness to the top flange
- Nominal joist size: 2x8
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model No.: JB28
- Member Size: 2x8
- Gauge: 18
- Width: 1 9/16 in.
- Height: 7 1/4 in.
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
Frequently Asked Questions
- What size lumber is the JB28 designed to support?
- The JB28 is designed for nominal 2x8 joist, rafter, or beam members in solid sawn lumber applications.
- What nails should be used to install the JB28?
- The JB28 should be installed with 16d common nails. Min. nailing is suitable for moderate load conditions, while max. nailing generates capacities for higher loads.
- What gauge steel is the JB28 made from, and how is it protected against corrosion?
- The JB28 is constructed from 18-gauge steel and features a G90 zinc galvanized coating, which provides extra corrosion resistance for long-lasting performance.
- What is the purpose of the two-level embossment on the top flange?
- The unique two-level embossment is designed to provide added stiffness to the top flange, enhancing the overall strength and rigidity of the connection.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
